Dual-nozzle printing
-
files/bambu-lab-h2d-main.jpg
Bambu Lab H2D عبارة عن منصة تصنيع شخصية ذات فوهة مزدوجة للطباعة ثلاثية الأبعاد المتقدمة متعددة الألوان والمواد.
الميزات الرئيسية
- طباعة بفوهة مزدوجة
- غرفة بناء كبيرة مغلقة
- مُسخّن (hotend) بدرجة حرارة 350 درجة مئوية وغرفة مُسخّنة نشطًا بدرجة حرارة 65 درجة مئوية
- نظام حركة CoreXY عالي السرعة
- متوافق مع أنظمة المواد الآلية من Bambu Lab
Bambu Lab H2D عبارة عن منصة تصنيع شخصية ذات فوهة مزدوجة للطباعة ثلاثية الأبعاد المتقدمة متعددة الألوان والمواد.
الميزات الرئيسية
- طباعة بفوهة مزدوجة
- غرفة بناء كبيرة مغلقة
- مُسخّن (hotend) بدرجة حرارة 350 درجة مئوية وغرفة مُسخّنة نشطًا بدرجة حرارة 65 درجة مئوية
- نظام حركة CoreXY عالي السرعة
- متوافق مع أنظمة المواد الآلية من Bambu Lab
- السعر العادي
- $0.00
Overview

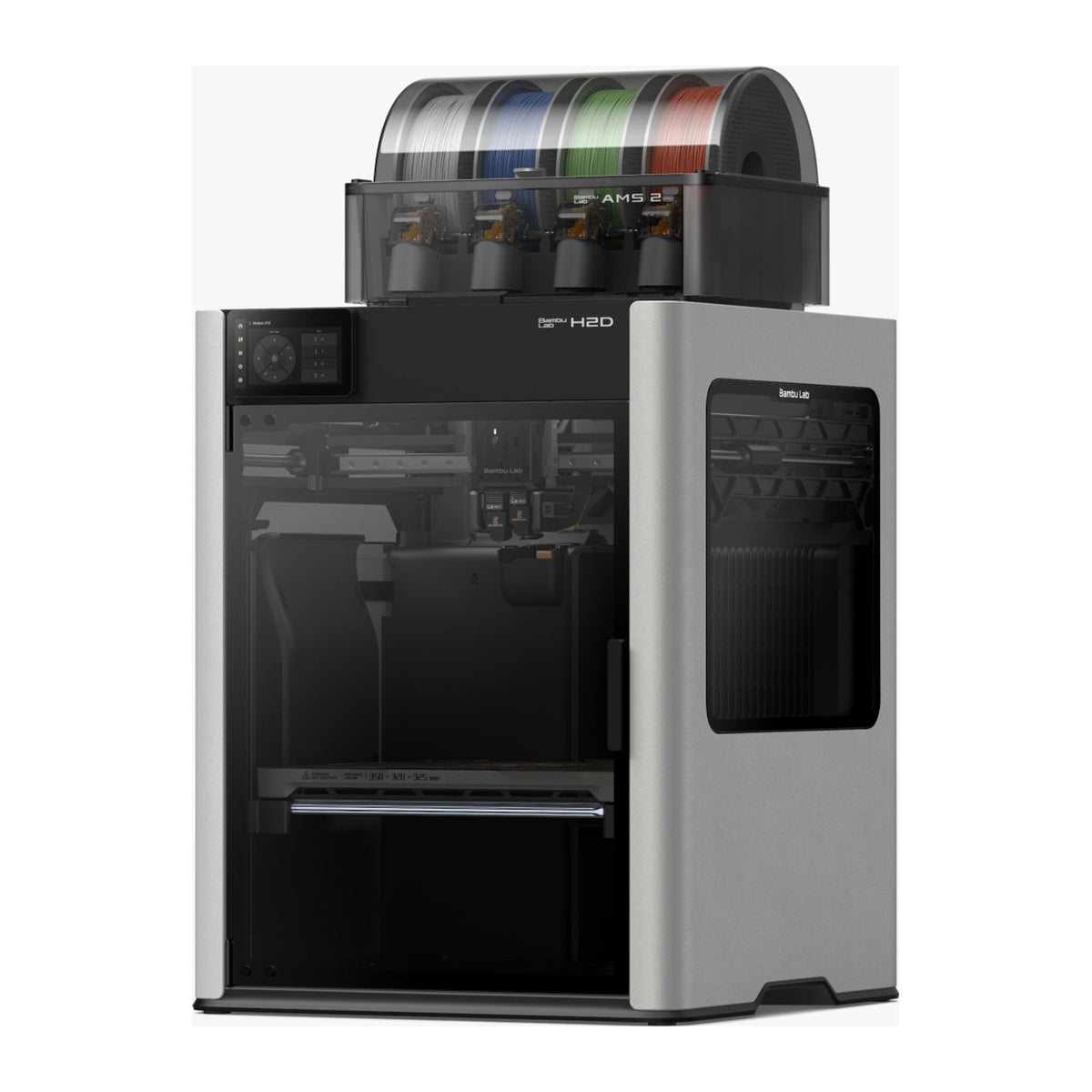

Bambu Lab H2D
All-in-One Personal Manufacturing
Product Highlights
Laser and digital cutting
Large-format precision
AI-backed monitoring
Dual-Nozzle Printing
Flexible and Rigid Materials in One Print
Independent nozzles make it practical to combine different material properties or reserve one nozzle for dedicated support interfaces.
Personal Manufacturing
Laser, Cutting, and Drawing Workflows
Compatible tool modules expand the platform from 3D printing into engraving, digital cutting, and repeatable pen drawing.
Large-Format Precision
Go Big, Go Fast, Go Precise
Optical measurement and motion compensation support accurate work across the build area, including large parts and fit-critical assemblies.
AI-Backed Monitoring
A Smarter, Safer Experience
Cameras and sensors monitor extrusion, the material path, and common print failures to help identify risks before they affect the finished part.
مراجعات العملاء
الأسئلة الشائعة
Can h2d be upgraded to h2d laser edition?
$3e8
Are the left and right hotends exactly the same?
yes, the left and right hotends have identical structures and materials, and can be used interchangeably.
What is the maximum number of ams 2 pro and ams ht units that the h2d supports? how many colors can it print at most?
the h2d supports a maximum of 4 ams 2 pro and 8 ams ht connected simultaneously, a total of 12 units with 24 slots.
because h2d is a dual-hotend printer, and in the most extreme scenario, all ams can be connected to one hotend while the other hotend uses an external spool holder, it can support up to 25 colors.
Is h2d compatible with first generation ams?
the first-generation ams has been confirmed to have full plug-and-play compatibility and can be used with the h2d for multi-color printing, but it does not support the ams drying function.
due to the fundamental differences in the feeding mechanism and buffering structure, the h2d does not support the ams lite.
Ams 2 pro is directly connected to the printer through the 6-pin ports, so what are the two 4-pin ports on the back of the printer used for?
the two 4-pin ports on the back are reserved for future expansion accessories. for example, to upgrade a non-laser version of the printer to a laser version, one of these ports can be used to connect an external air pump.
Can i use the a1 series hotend on the h2d? conversely, can h2d hotends be used on a1 series printers?
although the hotend of the h2d series is similar to the a1 hotend in structure , it is not exactly the same.
the h2d hotends are specifically designed for the h2d printer, offering optimized compatibility. for example, they support a larger maximum volumetric flow rate, lower clogging risk, more precise nozzle offset calibration between the left and right hotends, and automatic hotend type recognition via the live camera.
therefore , to ensure you get the best print quality, we strongly recommend that you do not use the a1 hotend for h2d printers.
purchasing additional h2d hotends for use on a1 printers is feasible. however, you will also need to use the h2d hotend silicone sock.
What are the differences between the 10w and 40w laser modules? how should i choose?
both the 10w and 40w laser modules are blue light lasers that support processing a variety of materials, including wood, rubber, metal sheets, leather, dark acrylic, and stone. however, due to differences in power and size, there are the following distinctions:
1.maximum cutting thickness(for basswood plywood):
10w laser module: 5mm;
40w laser module: 15mm;
2.maximum engraving speed(for basswood plywood):
10w laser module: 400mm/s ;
40w laser module: 1000mm/s ；
3.processable area:
10w laser module: maximum processing area x310mm * y270mm, maximum processing height 280mm；
40w laser module: maximum processing area x310mm * y250mm, maximum processing height 265mm；
Is a usb included as standard? what functions are affected without a usb?
the package does not include a standard usb flash drive. you can still initiate printing normally without a usb, as the printer has built-in storage space to run print files.
however, without a usb inserted, the following functions will be affected:
1. the recording and time-lapse photography functions can't be turned on;
2. printing cannot be initiated through the lan;
3. print files cannot be sent to the machine for storage through the studio;
4. log files cannot be exported;
usb requirements: usb2.0 protocol or above (actual minimum write speed needs to be greater than 10m/s), supported file formats are fat32 and exfat. and the printer only supports mounting one usb, and cannot connect multiple usb via a usb hub.
Why can’t i freely select hotend for printing with the printer’s built-in files?
the hotend to be used for printing has already been determined when the model file is sliced. as for the built-in models, the right hotend has been selected during the slicing process, so it is impossible to change the hotend used for printing on the printer screen.
when you slice the file in bambu studio and send the print task , you can freely choose to use the left hotend or the right hotend. for some filaments, such as tpu and pps/ppa-cf, it is recommended to use specific hotends for printing.
for more details on h2d filament printing, please check the wiki.
Will the smoke and dust generated by laser operations affect my printer's precision and lifespan?
h2d is equipped with an efficient exhaust system that effectively removes smoke and dust generated by laser operations, significantly reducing contamination. during r&d, we conducted rigorous testing to ensure that with regular machine cleaning, the impact of smoke and dust on performance and precision is negligible. for detailed cleaning instructions, please refer to: wiki
How can i improve the success rate and quality of tpu printing?
due to the flexible nature of tpu filaments, there are some operational issues that can arise during feeding and printing. to facilitate tpu printing, we have created a dedicated wiki guide. simply follow the instructions in the wiki to successfully print with tpu filaments: wiki
Are there any special safety precautions i need to take when using the laser function?
because laser processing involves using high-energy lasers on potentially flammable materials, we strongly advise users not to leave the machine unattended during laser operations. please maintain constant vigilance over the machine's operational status and ensure that there are no flammable or explosive materials in the machine's surroundings. for more information please refer to: wiki
for more information about h2d, refer to the official wiki.
