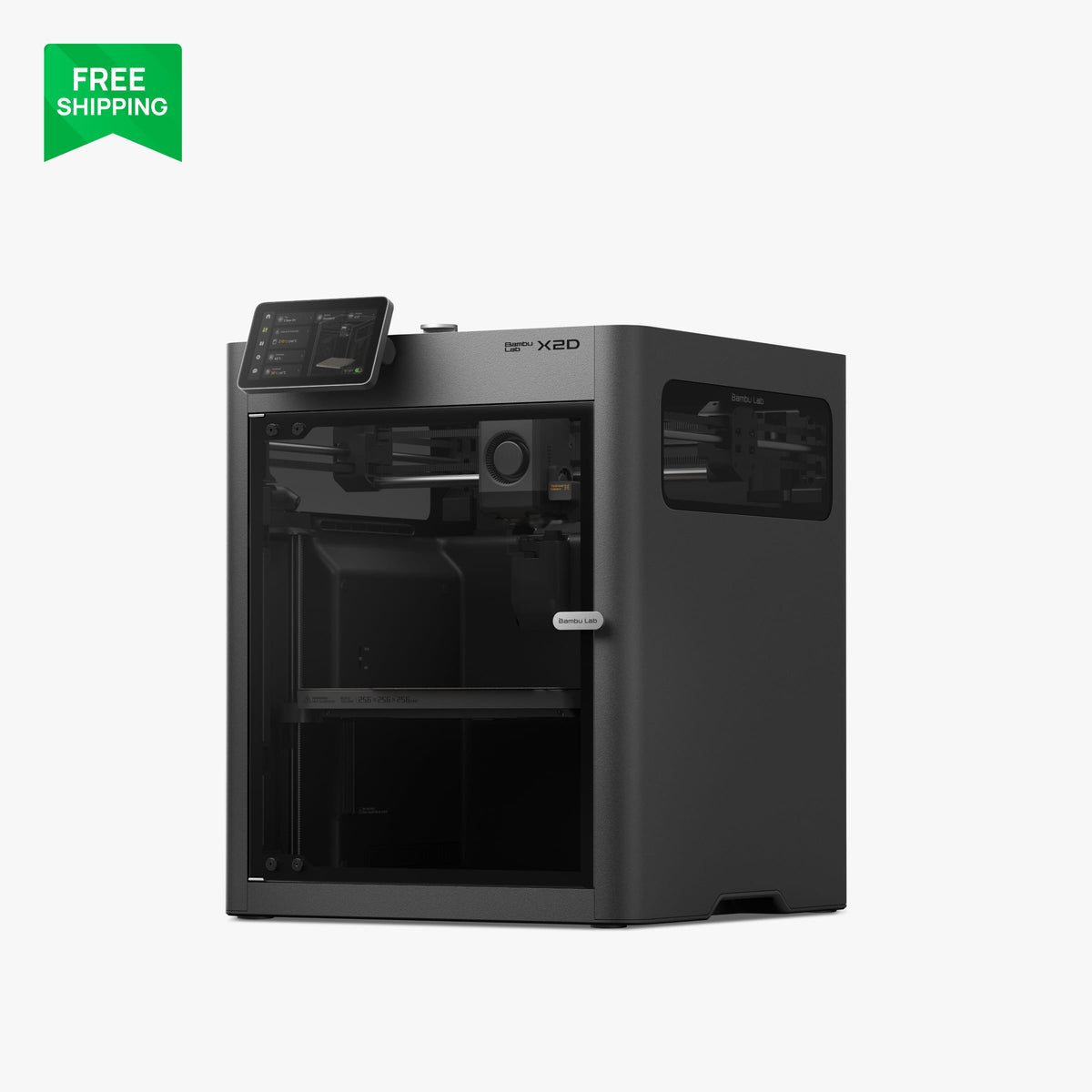

Bambu Lab X2D هي طابعة ثلاثية الأبعاد مكتبية مغلقة ذات فوهة مزدوجة مصممة لإزالة الدعامات بطريقة نظيفة وسير عمل مرن متعدد المواد.

الميزات الرئيسية

نظام فوهة مزدوجة بتبديل ميكانيكي
حجم بناء إجمالي يصل إلى 256 × 256 × 260 مم
فوهة 300 درجة مئوية وغرفة تسخين نشط 65 درجة مئوية
ترشيح هواء من ثلاث مراحل
متوافقة مع سير عمل الألوان المتعددة والمواد المتعددة

Bambu Lab

بامبو لاب X2D

السعر العادي: $649.00

Bambu Lab X2D هي طابعة ثلاثية الأبعاد مكتبية مغلقة ذات فوهة مزدوجة مصممة لإزالة الدعامات بطريقة نظيفة وسير عمل مرن متعدد المواد.

الميزات الرئيسية

نظام فوهة مزدوجة بتبديل ميكانيكي
حجم بناء إجمالي يصل إلى 256 × 256 × 260 مم
فوهة 300 درجة مئوية وغرفة تسخين نشط 65 درجة مئوية
ترشيح هواء من ثلاث مراحل
متوافقة مع سير عمل الألوان المتعددة والمواد المتعددة

السعر العادي: $649.00

الكمية

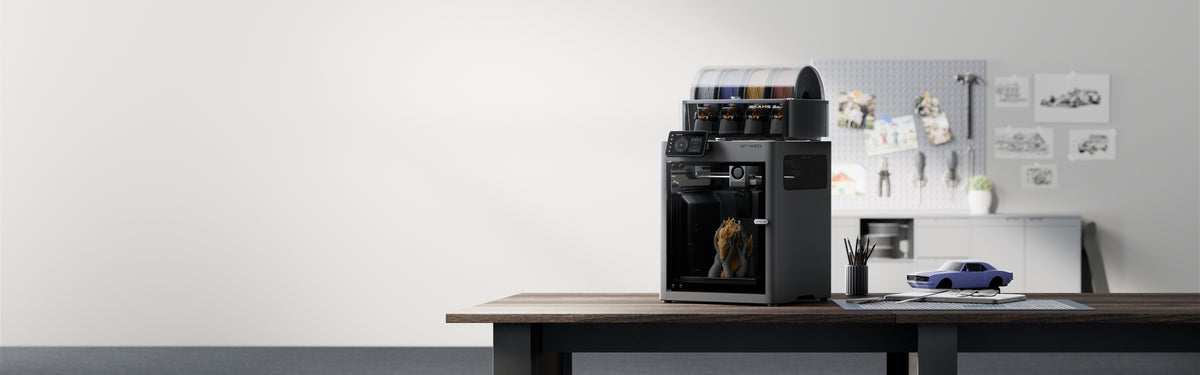

Bambu Lab X2D

Xcellence made simple

Why Choose Bambu Lab X2D

Dual nozzle

Multi-material made simple.

Servo Extruder

Smooth surfaces at full speed.

Dual-intake cooling

Crisp details.

Active heating.

Stronger parts.

Adaptive Calibration.

Lasting precision.

AI Monitoring

Your built-in backup.

Certified Emissions

Designed for your home.

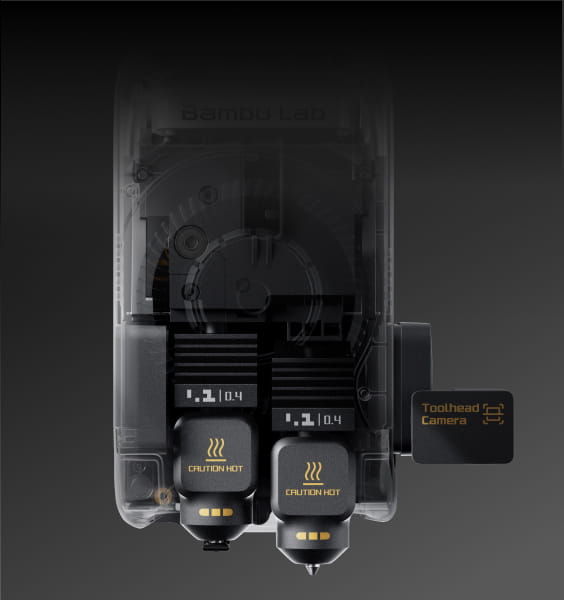

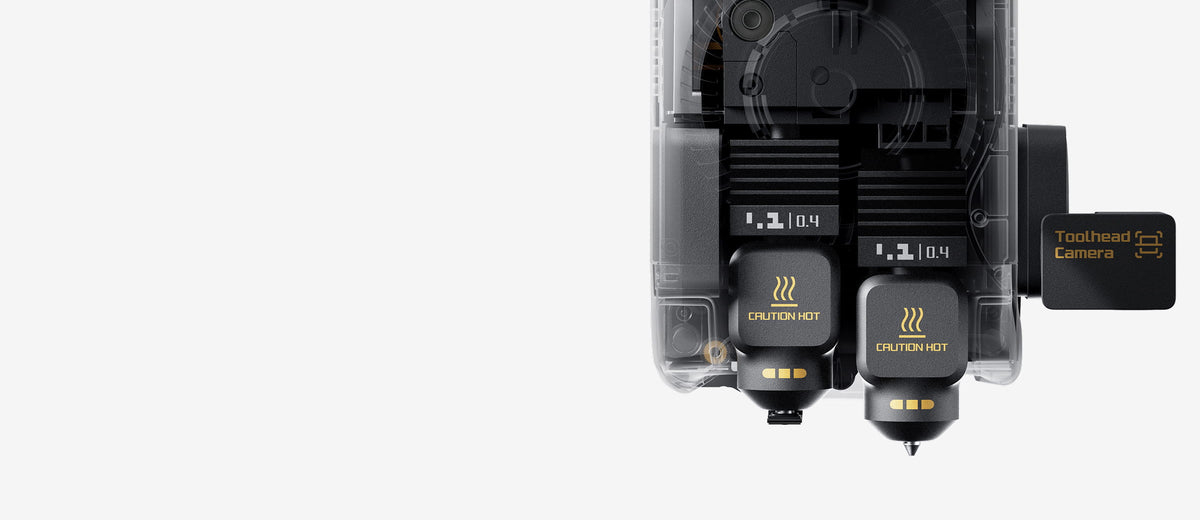

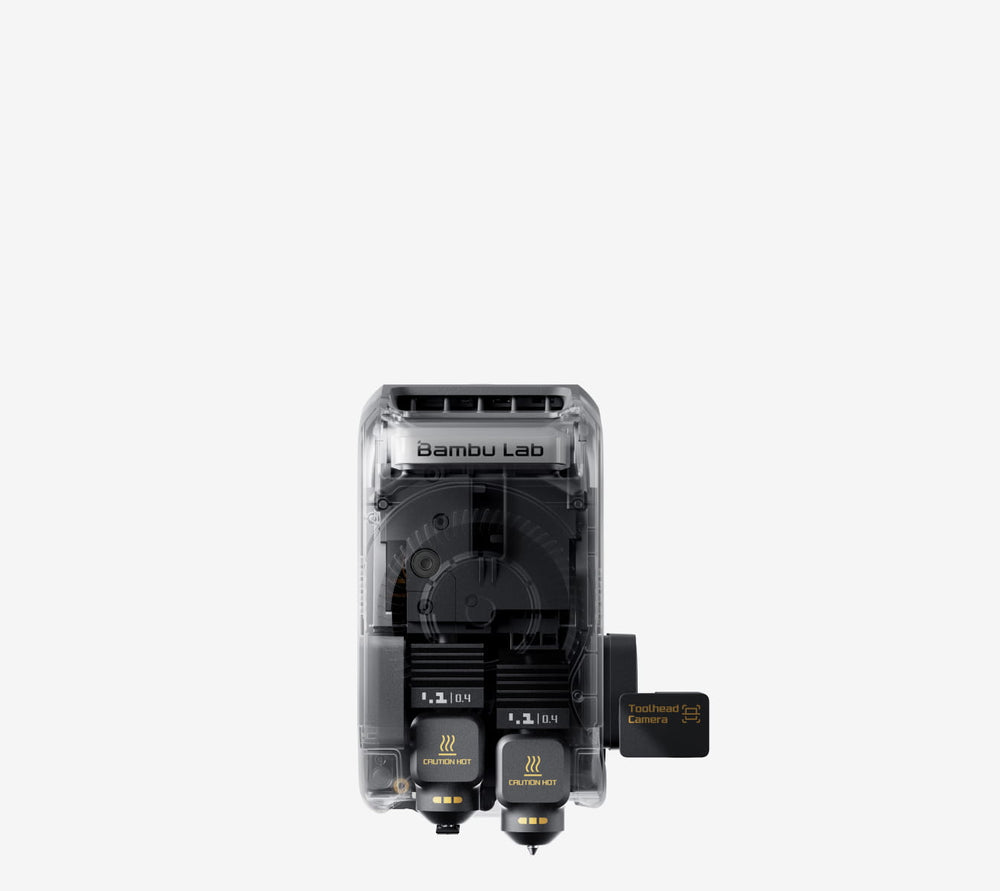

Dual Nozzle System.

Stop overthinking with support – start peeling it off clean. The main nozzle prints the part. The auxiliary nozzle handles the support. X2D hands the messy support work to a helper nozzle with its own material, then lets you peel it away clean.

Stop overthinking with support – start peeling it off clean.

The main nozzle prints the part. The auxiliary nozzle handles the support. X2D gives the support work to a dedicated material, so complex overhangs and internal channels peel away cleanly.

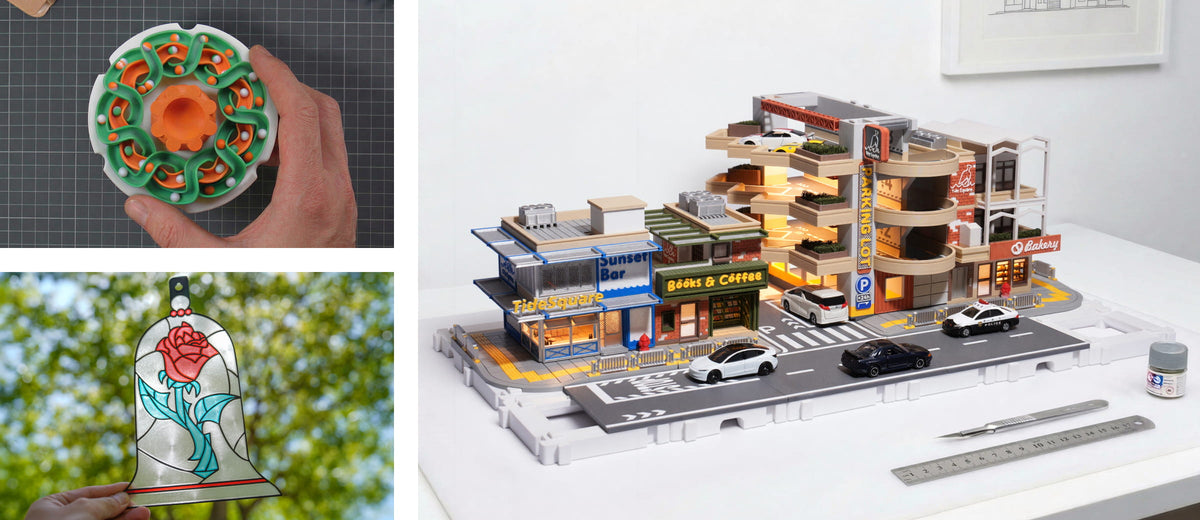

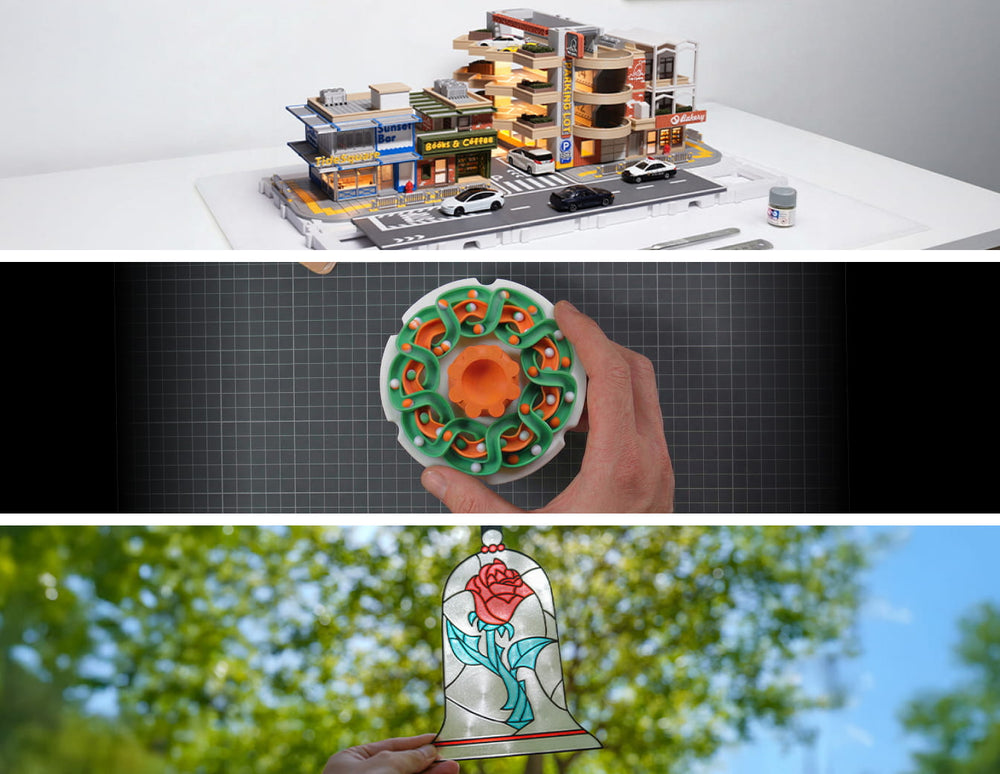

Add more color, more details and more fun.

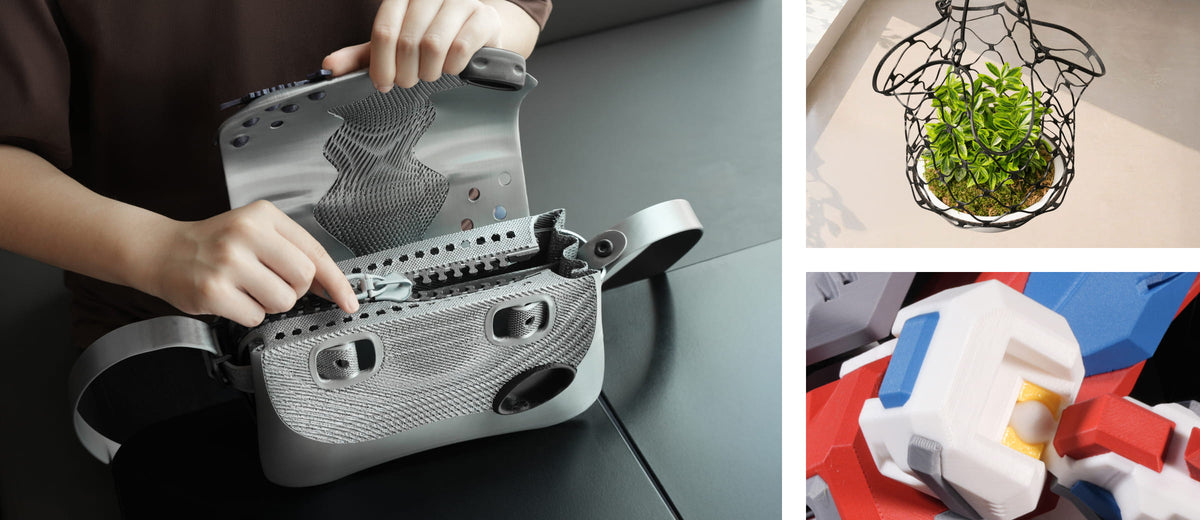

Fuse PLA and TPU in a single model for ready-to-use bags, grips, and bumpers. Dual nozzles switch in a split second for faster color changes, cleaner transitions, and less waste.

Finer. Sharper. True to the design.

A lighter toolhead reduces inertia and vibration, helping surfaces stay flawless even at full speed.

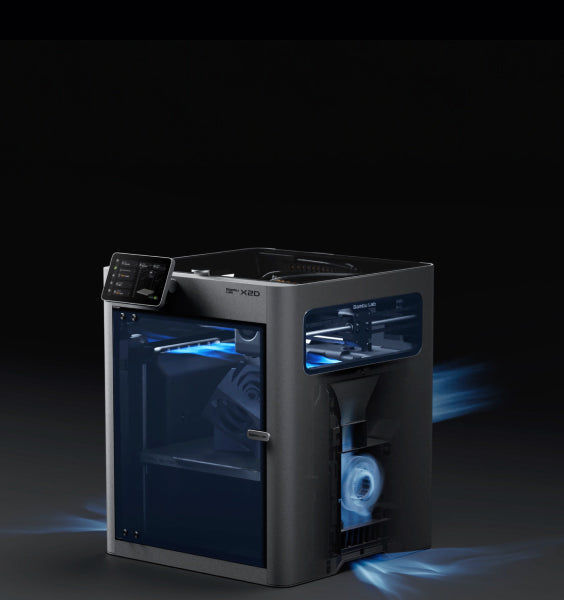

Cool it. Before gravity makes it droop.

Two intakes are always better than one. Freshly extruded filament is soft, but the X2D instantly flushes the chamber with cool air from dual left and right intakes. This stabilizes each layer so overhangs stay sharp and bridges stay clean.

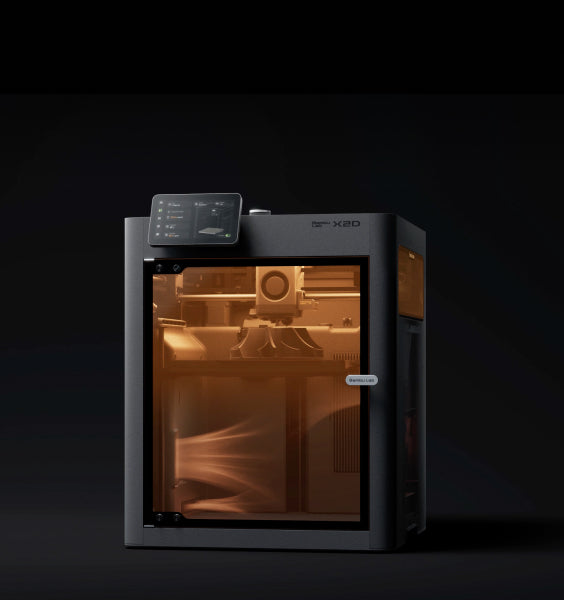

Hot Enough Isn't Enough. Heat It Even.

Heat is only useful when it is even. X2D's actively heated chamber reaches up to 65 °C and circulates warm air so engineering materials print with stronger layer bonding, less warping, and more consistent results.

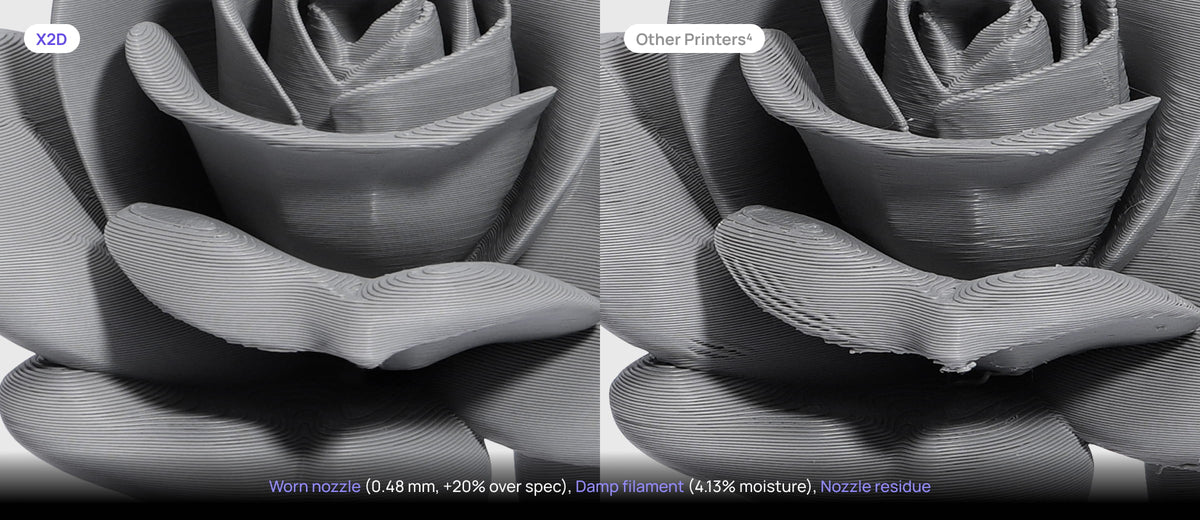

Calibration adapts to wear and material changes.

From nozzle wear to filament condition, X2D models the entire extrusion path and adjusts flow automatically so dimensional accuracy and surface quality stay consistent over time.

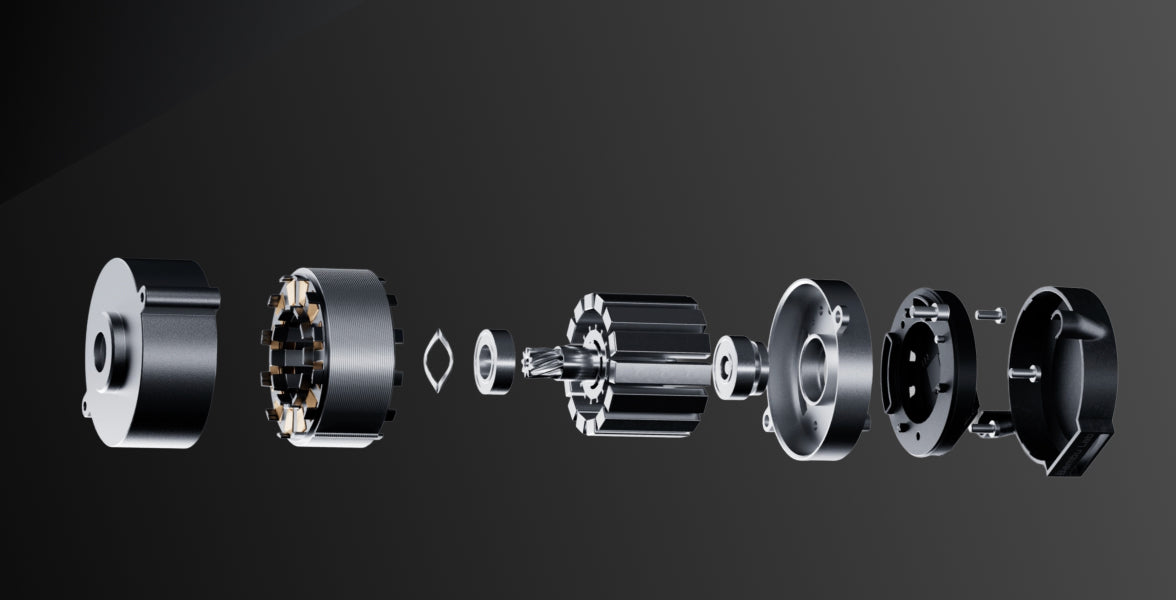

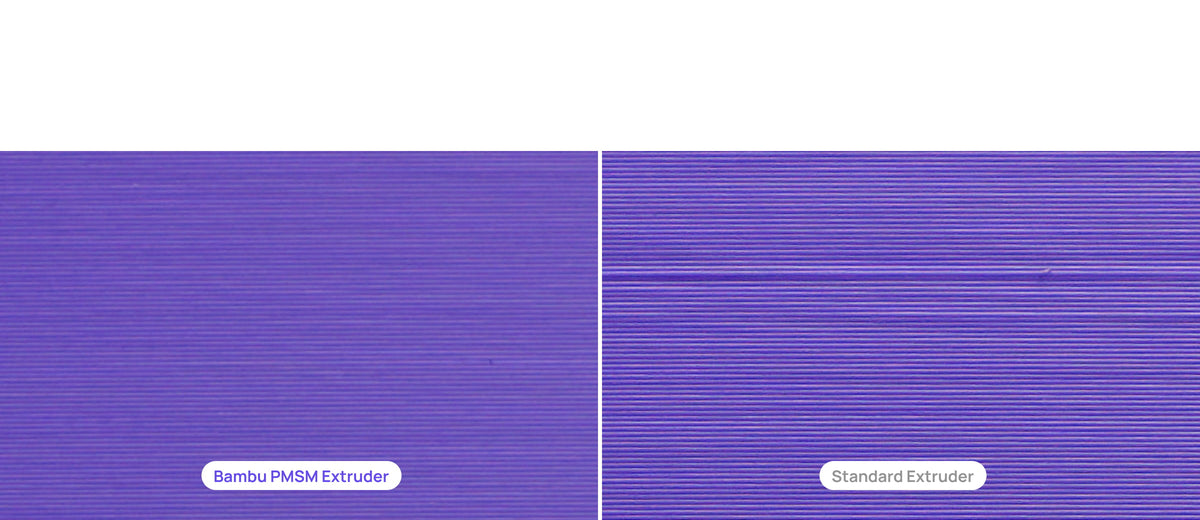

PMSM Servo System: Smoother surfaces start inside the extruder.

Extruder gears grind into filament as they feed it, causing small pressure fluctuations that show up as tiny lines on the surface. Exclusive to Bambu Lab, the PMSM servo system counters this in real time. With resistance and position sampling at 20 kHz, it adjusts electromagnetic torque on the fly, smoothing out every micro-fluctuation before it reaches the surface.

Smooth surface quality.

Extrusion pressure stays precisely controlled, keeping flow stable and surface finish clean and uniform, print after print.

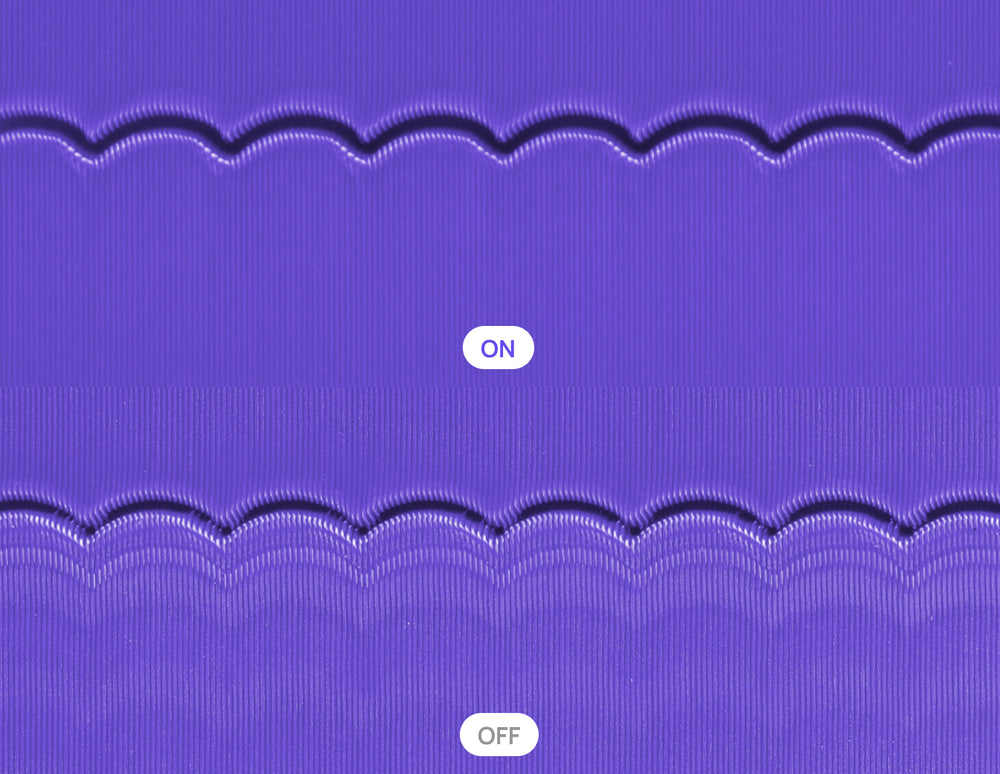

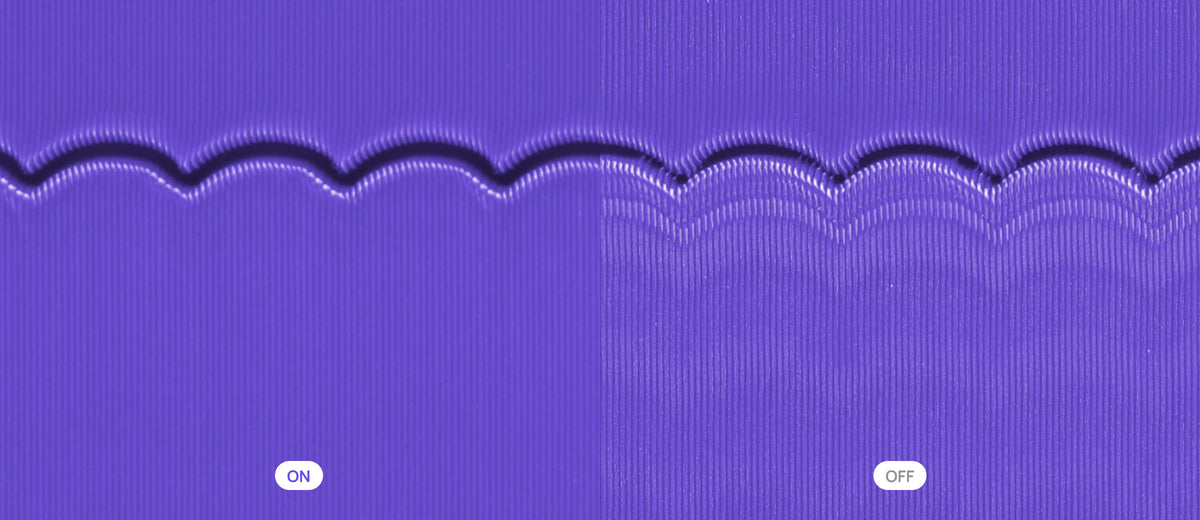

Compensation makes corners sharp and details clean.

Ringing and ghosting blur edges at high speed. Active Vibration Compensation cancels them in real time so edges remain crisp at speed.

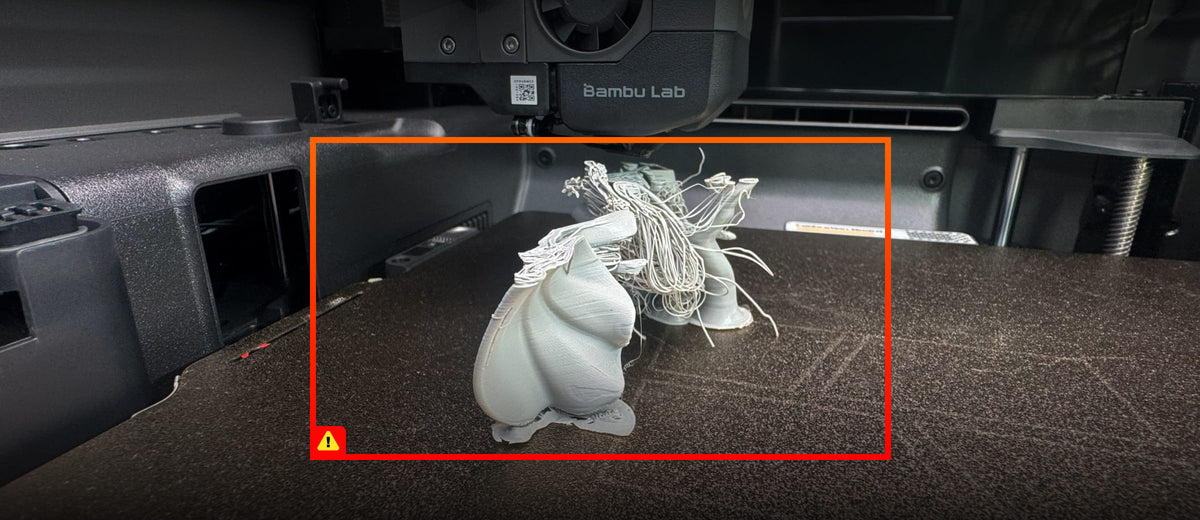

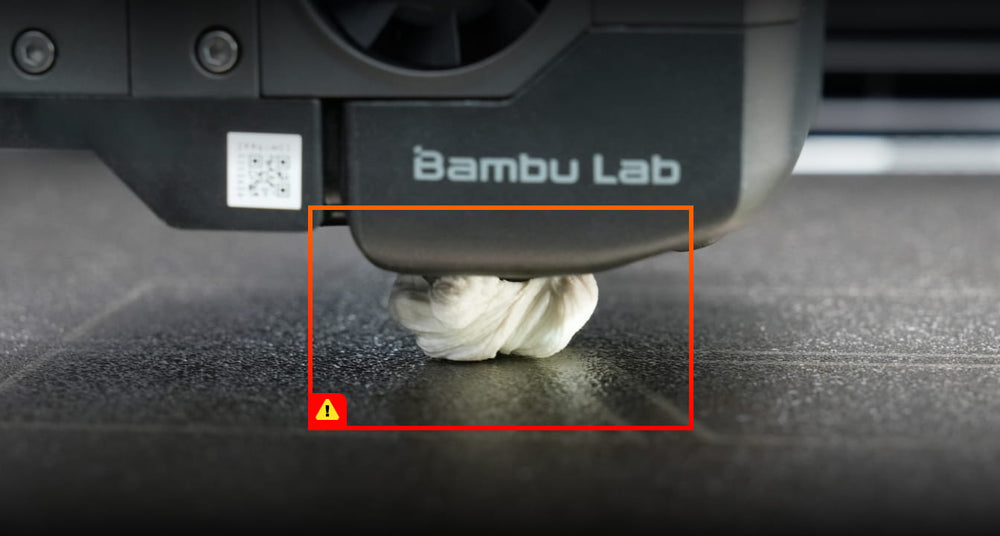

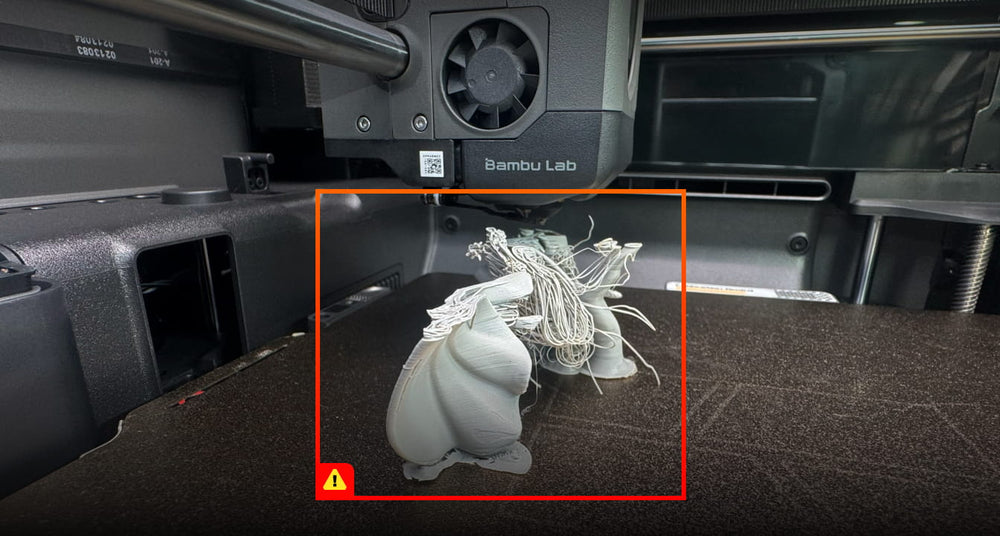

AI Camera keeps an eye on your prints.

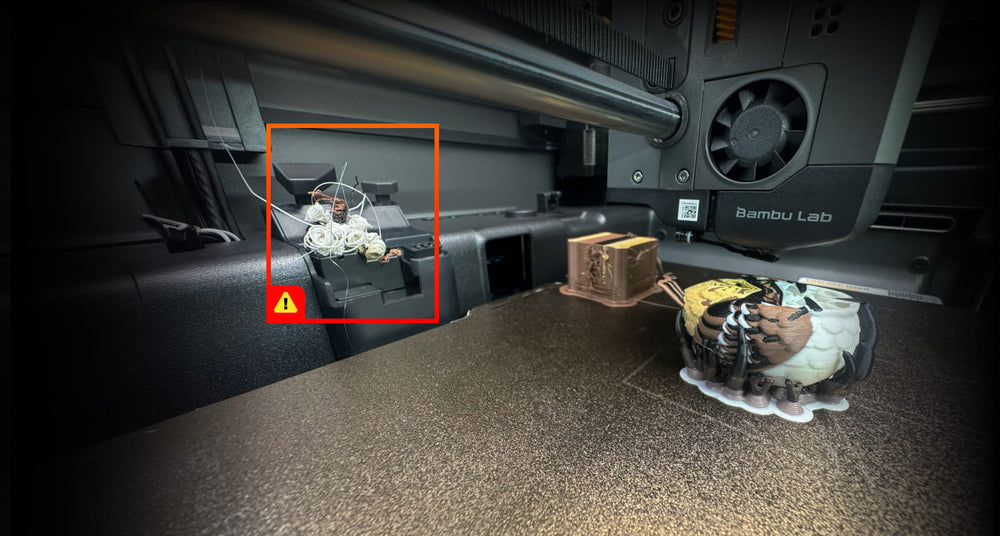

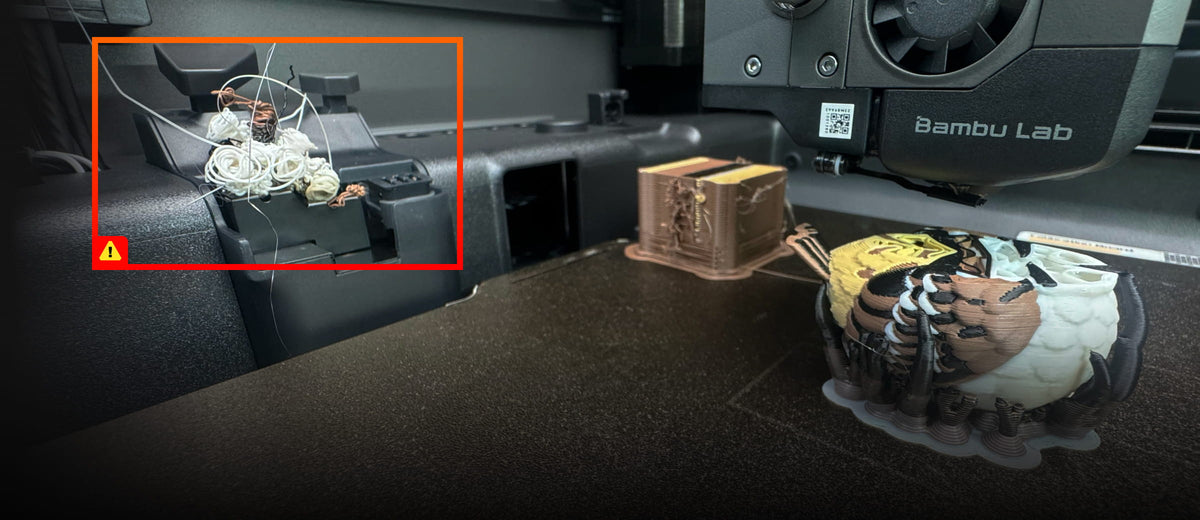

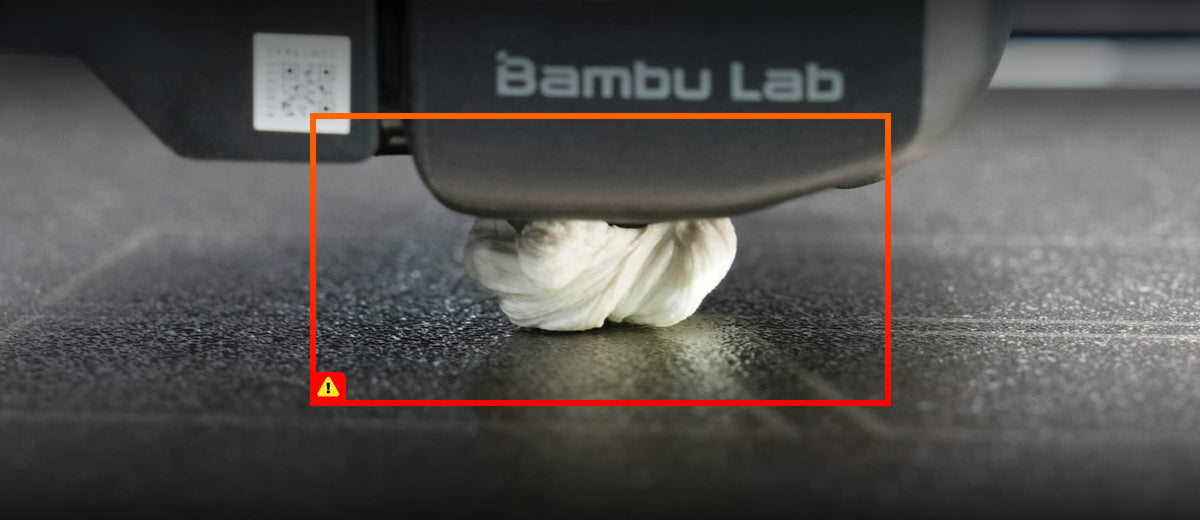

Before printing, the AI Liveview Camera and Toolhead Camera check the build plate and plate placement. During printing, they monitor for spaghetti, nozzle clumping, and purge-chute jams, pausing the job before more time and filament are wasted.

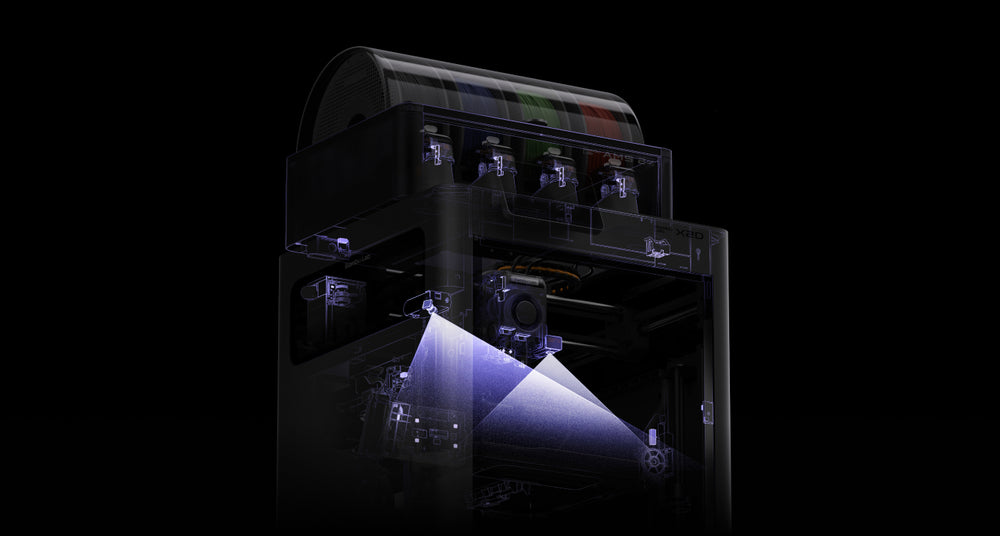

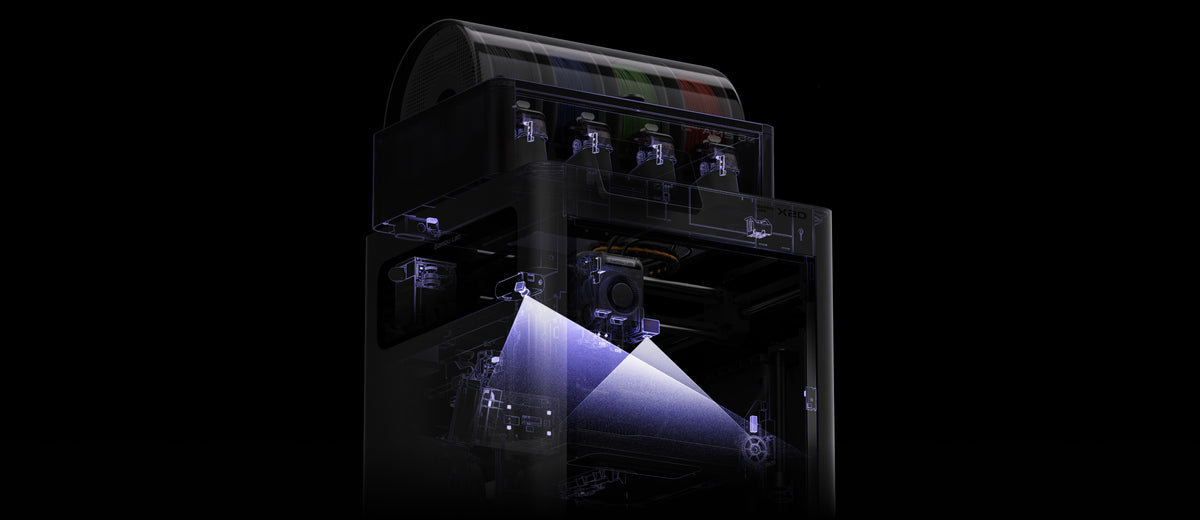

Fully-equipped sensors cover every critical stage.

Thirty-one sensors monitor the feeding path, printing process, thermal environment, and machine safety in real time, allowing the printer to measure, check, and act on variables that affect each print.

All the must-haves for everyday use.

Clean air. Always.

A G3 pre-filter, H12 HEPA filter, and coconut-shell activated carbon layer work together to reduce odors and airborne particles whenever X2D prints.

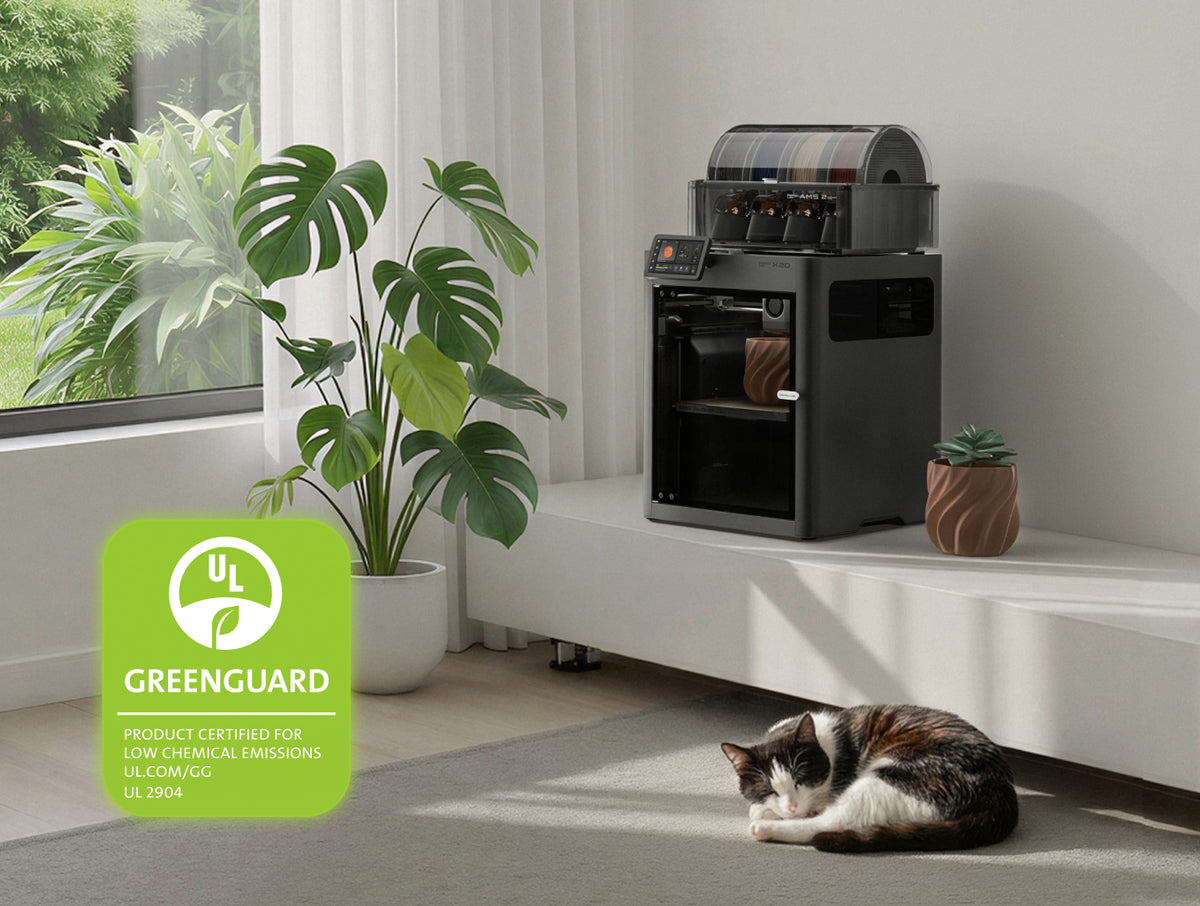

Safe for your living room.

UL 2904 certification confirms low particle and VOC emissions when printing with Bambu PLA Basic and PETG Basic.

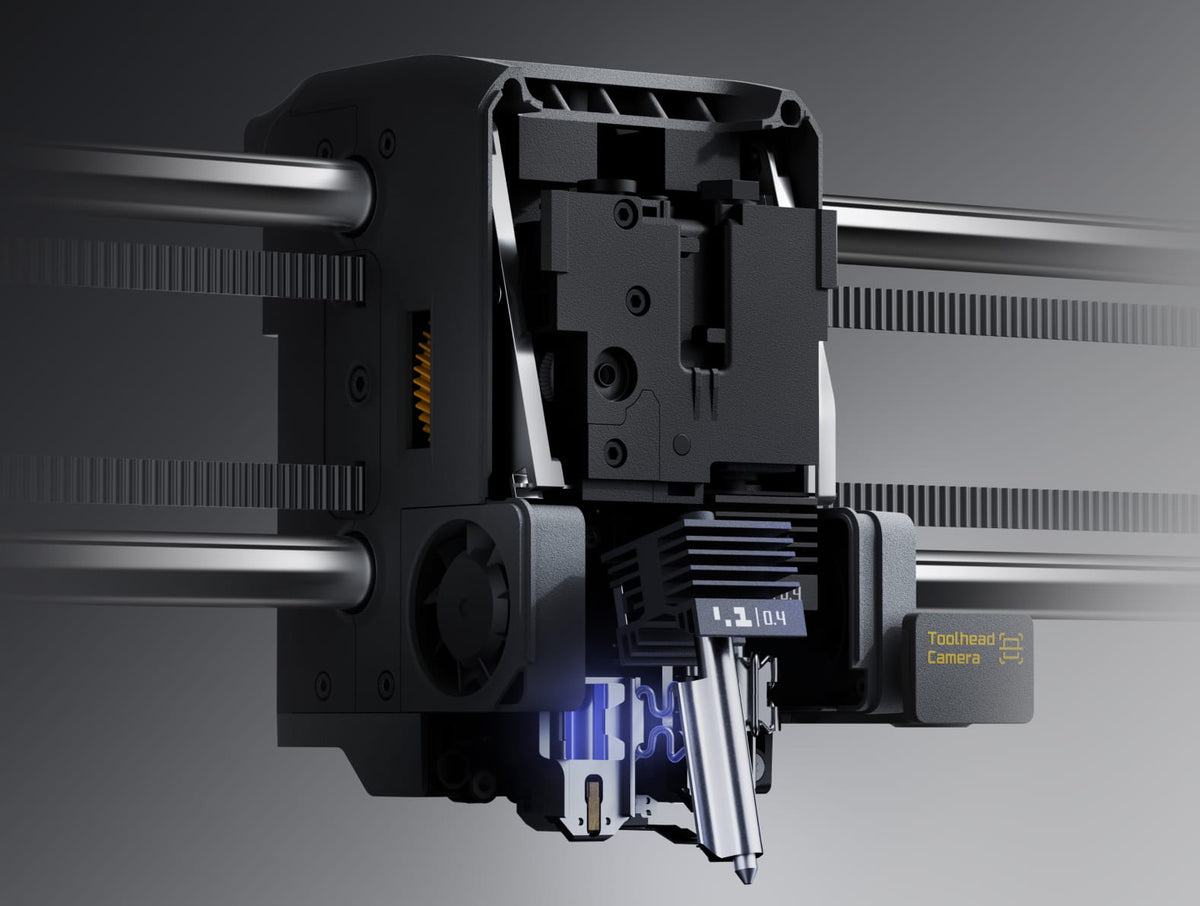

Tool-free nozzle swap.

Swap nozzles in seconds with no tools and no hassle.

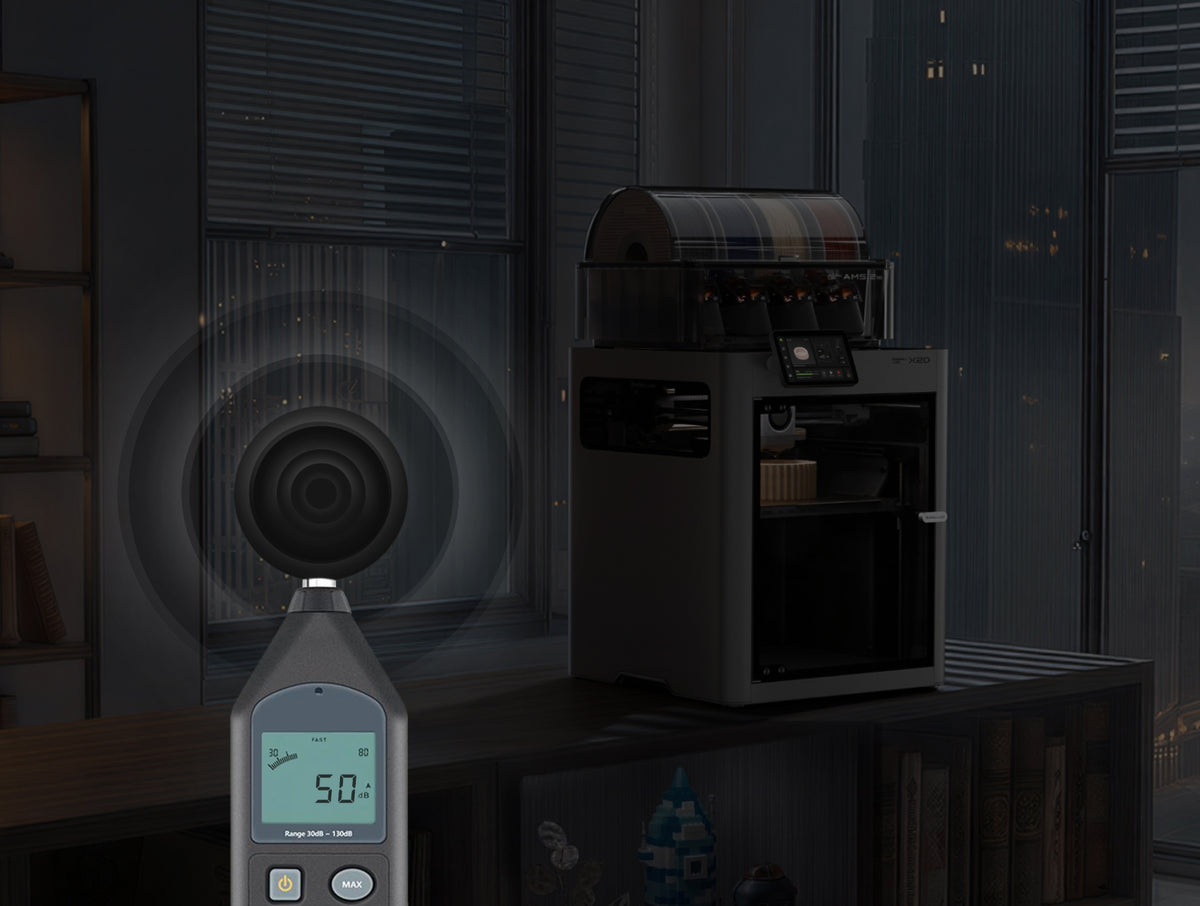

Quiet enough for overnight prints.

Active Motor Noise Canceling and a noise-optimized air duct keep X2D below 50 dB under typical conditions.

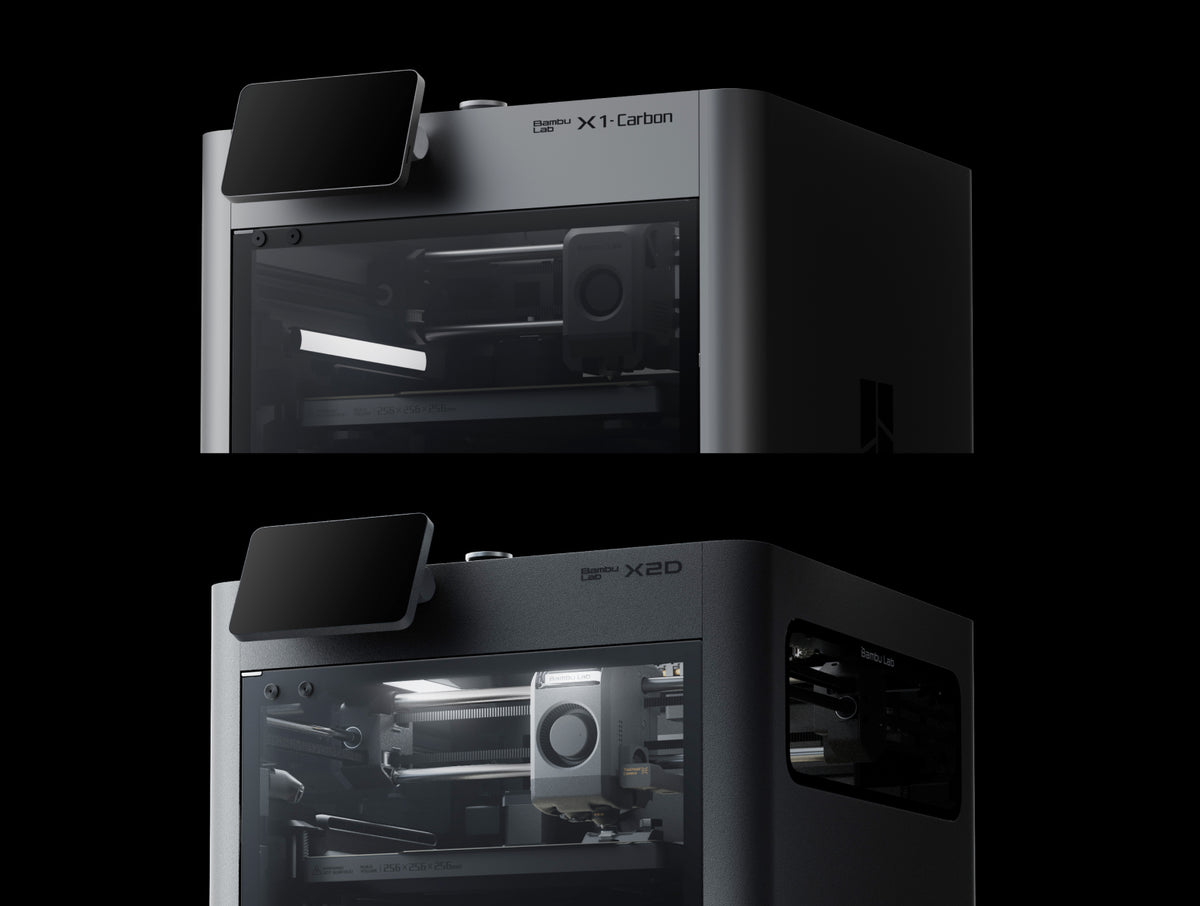

See every detail, remotely.

Brighter chamber lighting makes Live View and time-lapse clearer, so prints can be checked from anywhere.

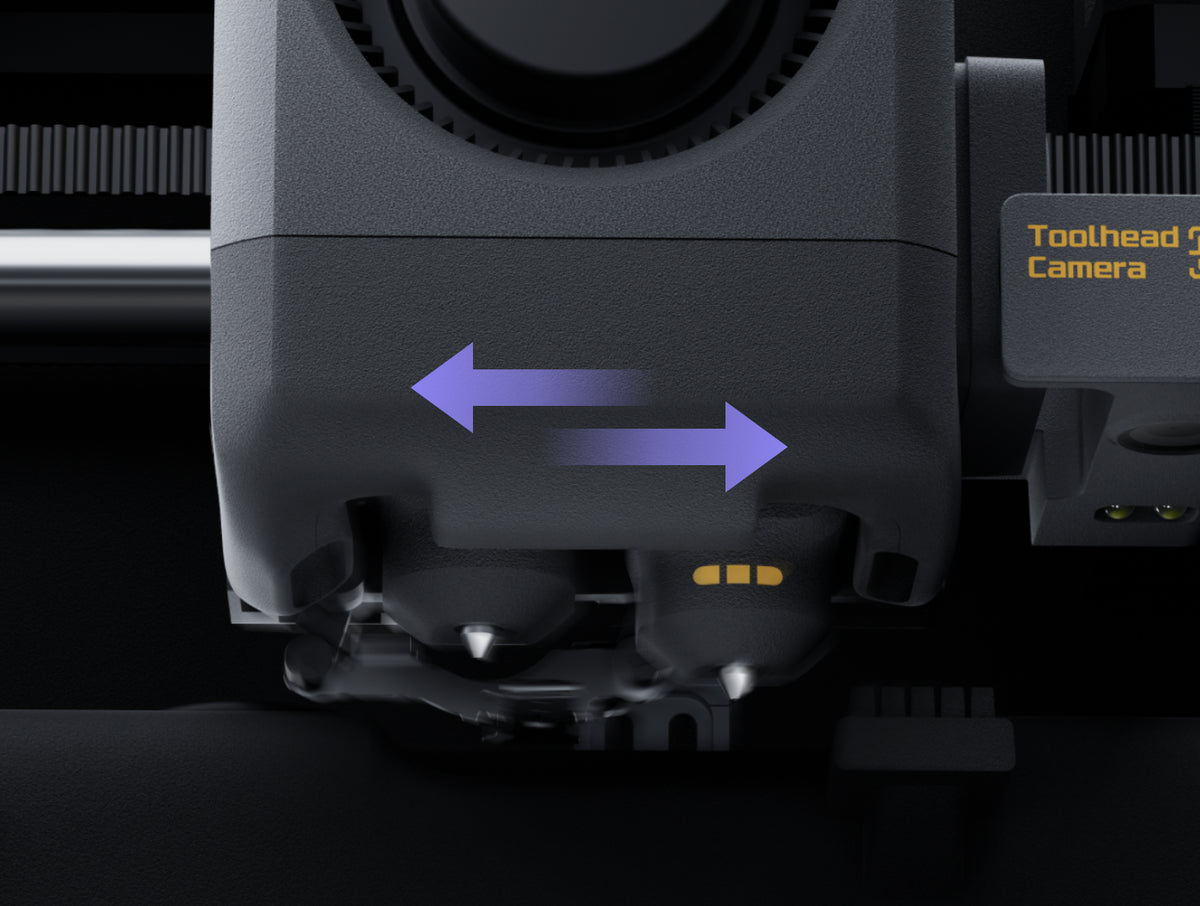

One million switches. Still smooth.

The dual-nozzle system completed more than one million switch cycles in life-cycle testing while maintaining smooth, consistent motion.

A printer that updates like your phone.

X2D prints beautifully from day one and improves with ongoing firmware updates that add features and refine performance.

Unboxing Video

See the complete X2D unboxing process and included components.

Watch video

What's in the box

X2D

Textured PEI Build Plate

External Exhaust Fan Bundle

Accessory Box

Spool holder

AMS 2 Pro (combo version)

Bambu Lab X2D - Technical Specifications

Specifications can vary by region. Check the voltage label near the printer power socket before use.

Category	Item	Specifications
	Printing Technology	Fused Deposition Modeling
Body	Build Volume (WDH)	Main Nozzle Printing: 256256260 mm³ Auxiliary Nozzle Printing: 235.5256256 mm³ Dual Nozzle Printing: 235.5256256 mm³ Total Volume for Two Nozzles: 256256260 mm³
	Chassis	Plastic and Steel
	Outer Frame	Plastic, Glass, and Metal
Dimensions and Weight	Physical Dimensions	392406478 mm³ Recommended printer space：500×700×850mm
	Net Weight	16.25 kg (Gross Weight: X2D 20.2 kg, X2D AMS Combo 22.2kg)
Toolhead	Main Extruder Gear	Hardened Steel
	Main Extruder Motor	Bambu Lab High-precision Permanent Magnet Synchronous Motor
	Auxiliary Extruder Gear	Hardened Steel
	Auxiliary Extruder Motor	Stepper Motor
	Nozzle	Hardened Steel
	Max Nozzle Temperature	300 °C
	Included Nozzle Diameter	0.4 mm
	Supported Nozzle Diameter	0.2 mm, 0.4 mm, 0.6 mm, 0.8 mm
	Filament Cutter	Built-in
	Filament Diameter	1.75 mm
Heatbed	Supported Build Plate Type	Textured PEI Plate, Smooth PEI Plate, Cool Plate SuperTack, Engineering Plate
	Max Heatbed Temperature	120 ℃
Speed	Max Speed of Toolhead	1000 mm/s
	Max Acceleration of Toolhead	20,000 mm/s²
	Max Flow for Hotend (Standard Flow Hotend)	40 mm³/s (Test parameters: 250 mm round model with a single outer wall; Bambu Lab ABS; 280 °C printing temperature)
	Max Flow for Hotend (Optional High Flow Hotend)	65 mm³/s (Test parameters: 250 mm round model with a single outer wall; Bambu Lab ABS; 280 °C printing temperature)
Chamber Temperature Control	Active Chamber Heating	Supported
	Max Temperature	65 °C
Air Purification	Pre-filter Grade	G3
	HEPA Filter Grade	H12
	Activated Carbon Filter Type	Granulated Coconut Shell
	VOC Filtration	Supported
	Particulate Matter Filtration	Supported
Cooling	Part Cooling Fan	Closed Loop Control
	Cooling Fan for Hotend	Closed Loop Control
	Main Control Board Fan	Closed Loop Control
	Chamber Exhaust Fan	Closed Loop Control
	Chamber Heat Circulation Fan	Closed Loop Control
	Auxiliary Part Cooling Fan	Closed Loop Control
Filament Supported	Main Hotend	PLA, PETG, ABS, ASA, TPU, Support for PLA, Support for PLA/PETG, Support for ABS, Support for PA/PET, PET, PA, PC, PVA; Carbon/Glass Fiber Reinforced PLA, PETG, ABS, ASA, PA6, PAHT, PPA, PET
	Auxiliary Hotend	PLA (excluding PLA Aero), PETG, ABS, ASA, TPU for AMS, Support for PLA, Support for PLA/PETG, Support for ABS, Support for PA/PET, PET, PA, PC, PVA; Carbon/Glass Fiber Reinforced PLA, PETG, ABS, ASA, PA6, PAHT, PET
	Auxiliary Hotend (print with caution¹)	PLA Silk, PETG-CF, ASA-CF, PA6-CF, TPU for AMS, Support for PA/PET
Sensor	Live View Camera	Built-in; 1920*1080
	Toolhead Camera	Built-in; 1600*1200

Category	Item	Specifications
Sensor	Door Sensor	Supported
	Filament Run Out Sensor	Supported
	Filament Tangle Sensor	Supported
	Filament Odometry	Supported with AMS
	Power Loss Recovery	Supported
Electrical Requirements²	Voltage	100-120 VAC , 50/60 Hz
	Max Power³	1100 W@110 V
	Steady-State Power	PLA (25 °C): 250 W@110 V PC (25 °C): 550 W@110 V Please purchase the version corresponding to your region's voltage. Using the Printer in different regions, you may need to purchase a transformer accordingly.
Environment Requirements	Working Temperature	10 °C-30 °C
Electronics	Touchscreen	5-inch 1280*720 Touchscreen
	Storage	Built-in 8 GB EMMC and USB Port
	Control Interface	Touchscreen, mobile App, PC App
	Motion Controller	Dual-core Cortex-M4 and Single-core Cortex-M7
	Application Processor	Quad-core ARM with dedicated NPU
Software	Slicer	Bambu Studio Supports third-party slicers which export standard G-code, such as Super Slicer, PrusaSlicer and Cura, but certain advanced features may not be supported.
	Supported Operating System	MacOS, Windows, Linux
Network Control	Ethernet	Not Available
	Wireless Network	Dual-Band Wi-Fi
	Network Kill Switch	Not Available
	Removable Network Module	Not Available
	802.1X Network Access Control	Not Available
Wi-Fi	Operating Frequency	2412 - 2472 MHz, 5150 - 5850 MHz (FCC/CE) 2400 - 2483.5 MHz, 5150 - 5850 MHz (SRRC)
	Wi-Fi Transmitter Power (EIRP)	2.4 GHz: <23 dBm (FCC); <20 dBm (CE/SRRC/MIC) 5 GHz Band1/2: <23 dBm (FCC/CE/SRRC/MIC) 5 GHz Band3: <30 dBm (CE); <24 dBm (FCC) 5 GHz Band4: <23 dBm (FCC/SRRC); <14 dBm (CE)
	Wi-Fi Protocol	IEEE 802.11 a/b/g/n

1) For optimal print quality, use the main hotend for filaments marked for cautious auxiliary-hotend use. 2) Voltage specifications vary by sales region. 3) The printer may use maximum power for approximately 3–5 minutes while heating the bed.

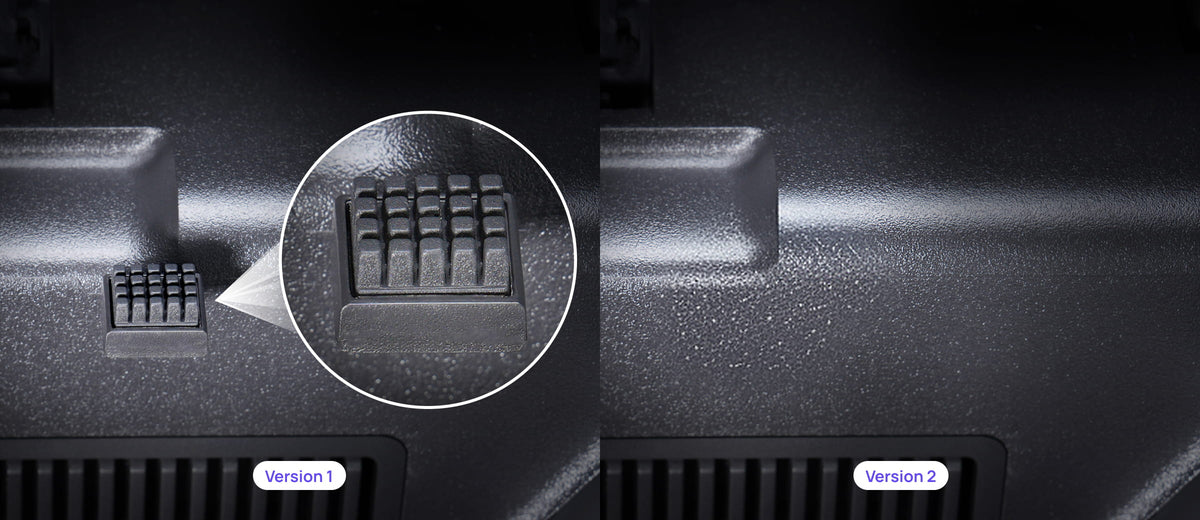

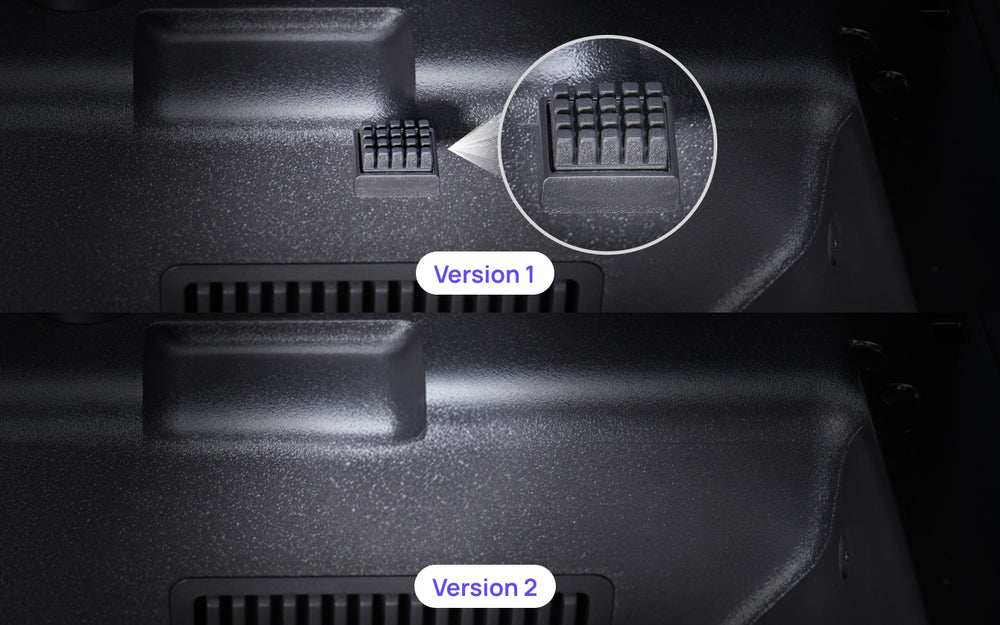

Product Variation Notice

Depending on the production batch, an X2D may or may not include a silicone wiper near the nozzle-switching area. Its function has been replicated through a software update, so both versions perform identically.

مراجعات العملاء

الأسئلة الشائعة

What are the main differences between the x2d and x1c?

x2d is x1c's next chapter. it adds a dual-nozzle system for up to 25-color printing, an actively heated chamber (up to 65 °c) for engineering filaments, a servo extruder with real-time flow sensing, filament tangle detection, expanded ai monitoring with both liveview and toolhead cameras, and support for vision encoder–based motion accuracy calibration. everything that made x1c great - refined and taken further.

for more product specifications, please refer to this page.

What is the maximum print speed and acceleration of the x2d?

when printing with the main nozzle, the maximum movement speed is 1000 mm/s and the maximum acceleration is 20,000 mm/s².

Are the left and right hotends identical?

yes, the left and right hotends are identical in structure and components, and can be used interchangeably between left and right positions.

What is the function of the chamber exhaust fan on the x2d's rear panel?

it actively extracts air from the chamber. in cooling mode (pla and other low-temp filaments), it works with the adaptive airflow system to dissipate heat and expel fumes. after printing high-temp filaments, enable "purify air at print end" to clear residual fumes - optionally routing them outdoors via a ventilation pipe.

What is the maximum number of ams units the x2d can connect to?

single hotend: supports up to 4 ams 2 pro and 8 ams ht units (12 units total, 24 slots).

dual hotends: enables up to 25-color printing when combined with the maximum ams configuration.

The buffer of the x2d has two 6-pin ports on top. does it support connecting two ams/ams 2 pro/ams ht units simultaneously?

no. the two ports serve different purposes: one is for connecting ams/ams 2 pro/ams ht. the other is for connecting the chamber exhaust fan.
to connect multiple ams units, daisy-chain them using 6-pin cables.

Can x2d use the ams hub?

incompatible. the interface types are different.

Is the x2d's build plate compatible with those of x/p/a series printers?

the x2d supports all current bambu lab 256 mm × 256 mm build plates. it does not recognize 1st-generation build plates. if the printer fails to detect the build plate type, manually select "ignore" or disable build plate detection in the on-screen settings.

Does the x2d support high-flow nozzles?

yes. high-flow hotends maintain print quality while significantly increasing print speed, reducing print time by up to 30% compared with standard nozzles.

What's the advantage of having two extruders?

the main extruder (in the toolhead) handles precise flow control. auxiliary extruder (mounted on the top of the rear panel): as a remote extruder, it feeds filament from the buffer to the toolhead through a ptfe tube, effectively saving toolhead space and maximizing available print volume.

Does the x2d require an external power supply to use the dry filament function when connected to the ams 2 pro?

connect the printer to a single ams 2 pro using a 6-pin cable to use the drying function of the ams 2 pro when the entire unit is in standby mode. during drying, print-related functions will be paused. if you need to dry filaments in multiple ams 2 pro units simultaneously, you must purchase additional official bambu lab power adapters to power the remaining ams 2 pro units.

power adapter parameters:

input voltage range

ac 100-240v 50/60hz

output

24v/4a 96w

please refer to ams 2 pro for details.
