340 × 320 × 340 mm volume
-
files/bambu-lab-h2s-main.jpg

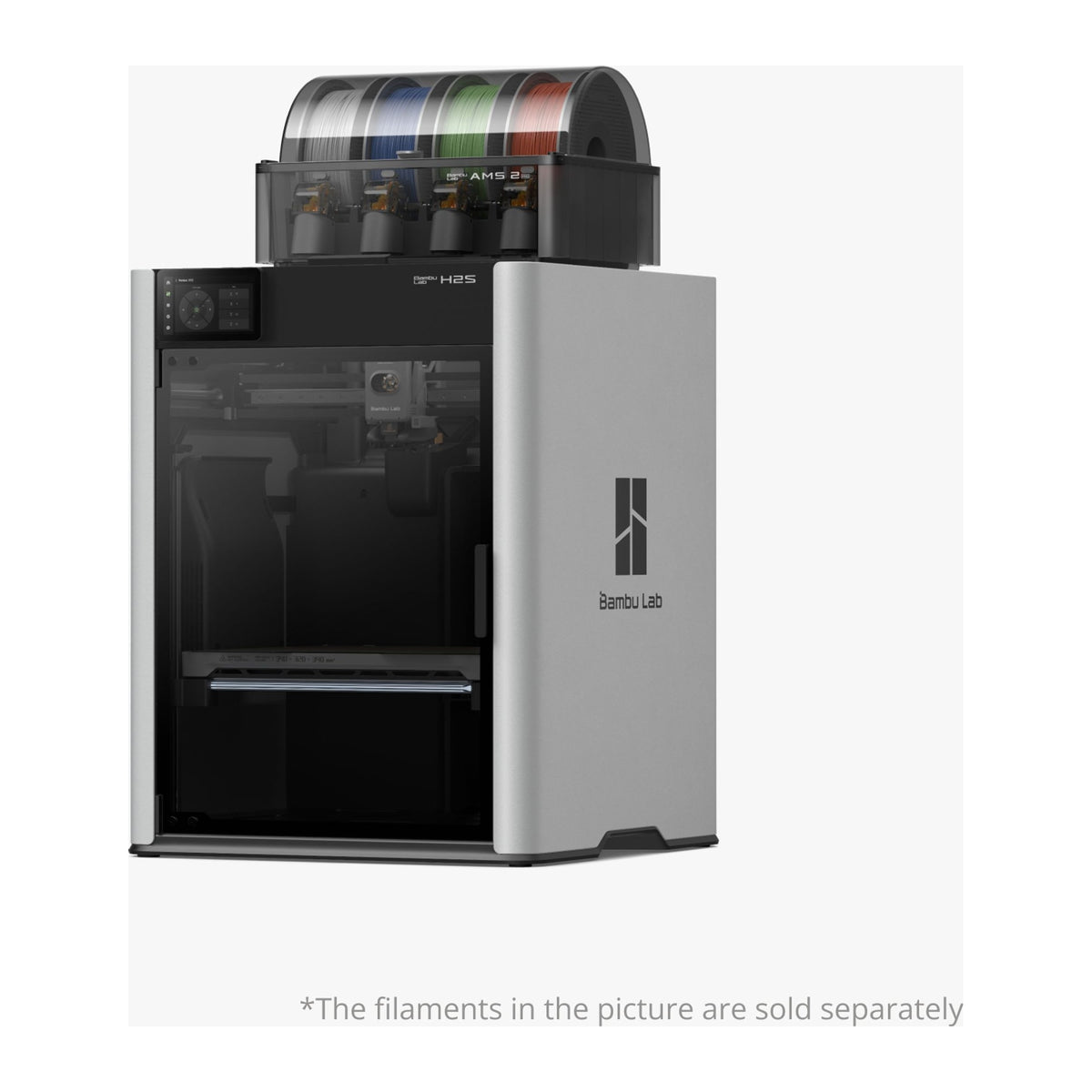

Bambu Lab H2S هي طابعة ثلاثية الأبعاد كبيرة الحجم ومغلقة، وتتميز بحركة عالية السرعة، وتدفئة نشطة للحجرة، ودعم واسع للمواد الهندسية.
الميزات الرئيسية
- حجم الطباعة 340 × 320 × 340 ملم
- سرعة رأس الأداة تصل إلى 1000 ملم/ثانية
- فوهة 350 درجة مئوية وحجرة مدفأة بنشاط 65 درجة مئوية
- قاذف سيرفو ذو حلقة مغلقة
- طباعة متعددة الألوان مع أنظمة AMS المتوافقة
Bambu Lab H2S هي طابعة ثلاثية الأبعاد كبيرة الحجم ومغلقة، وتتميز بحركة عالية السرعة، وتدفئة نشطة للحجرة، ودعم واسع للمواد الهندسية.
الميزات الرئيسية
- حجم الطباعة 340 × 320 × 340 ملم
- سرعة رأس الأداة تصل إلى 1000 ملم/ثانية
- فوهة 350 درجة مئوية وحجرة مدفأة بنشاط 65 درجة مئوية
- قاذف سيرفو ذو حلقة مغلقة
- طباعة متعددة الألوان مع أنظمة AMS المتوافقة
- السعر العادي
- $0.00
Overview
Bambu Lab H2S
Your Personal Manufacturing Hub
Product Highlights
Closed-loop servo extrusion
Active chamber heating
Optional creative tools
Precision Manufacturing
Accuracy That Works for You

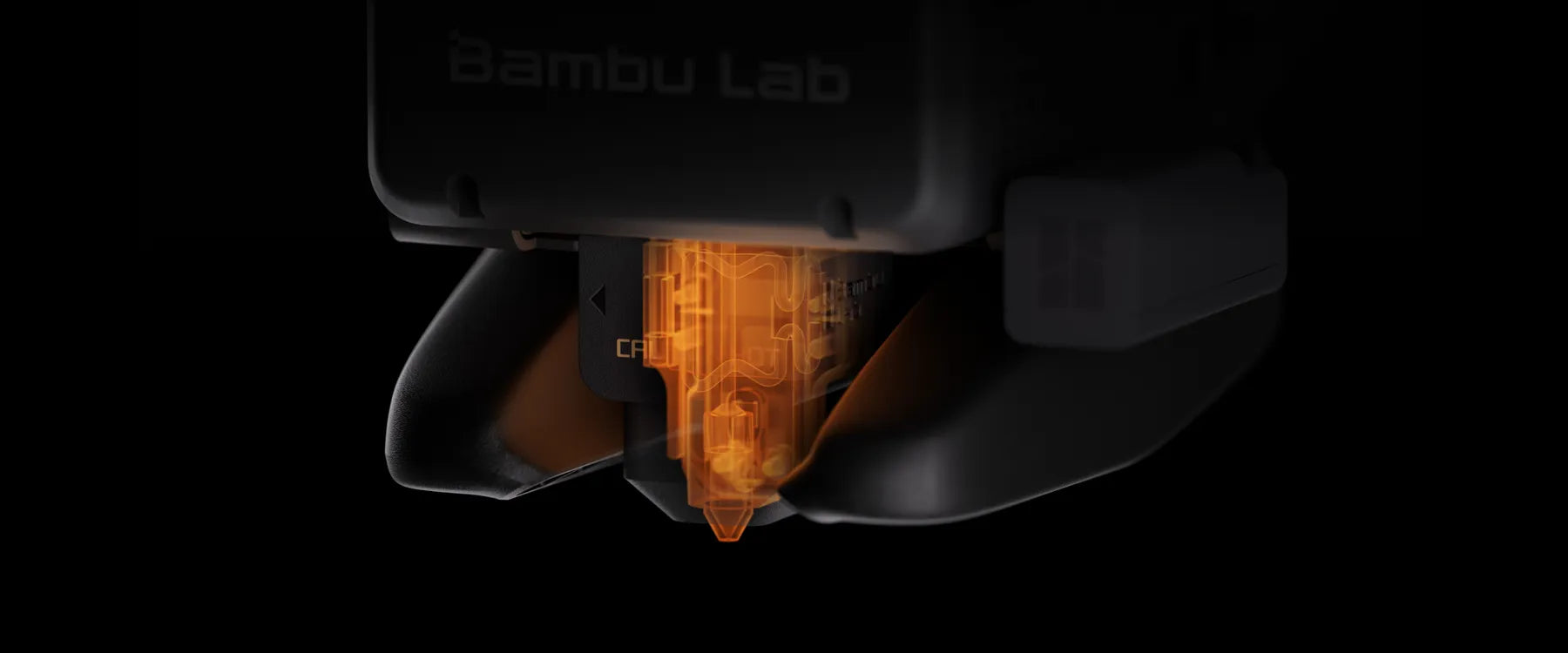

Optical motion calibration and automatic compensation help maintain dimensional accuracy as the machine and materials change over time.
Closed-Loop Control
Intelligence That Has Your Back

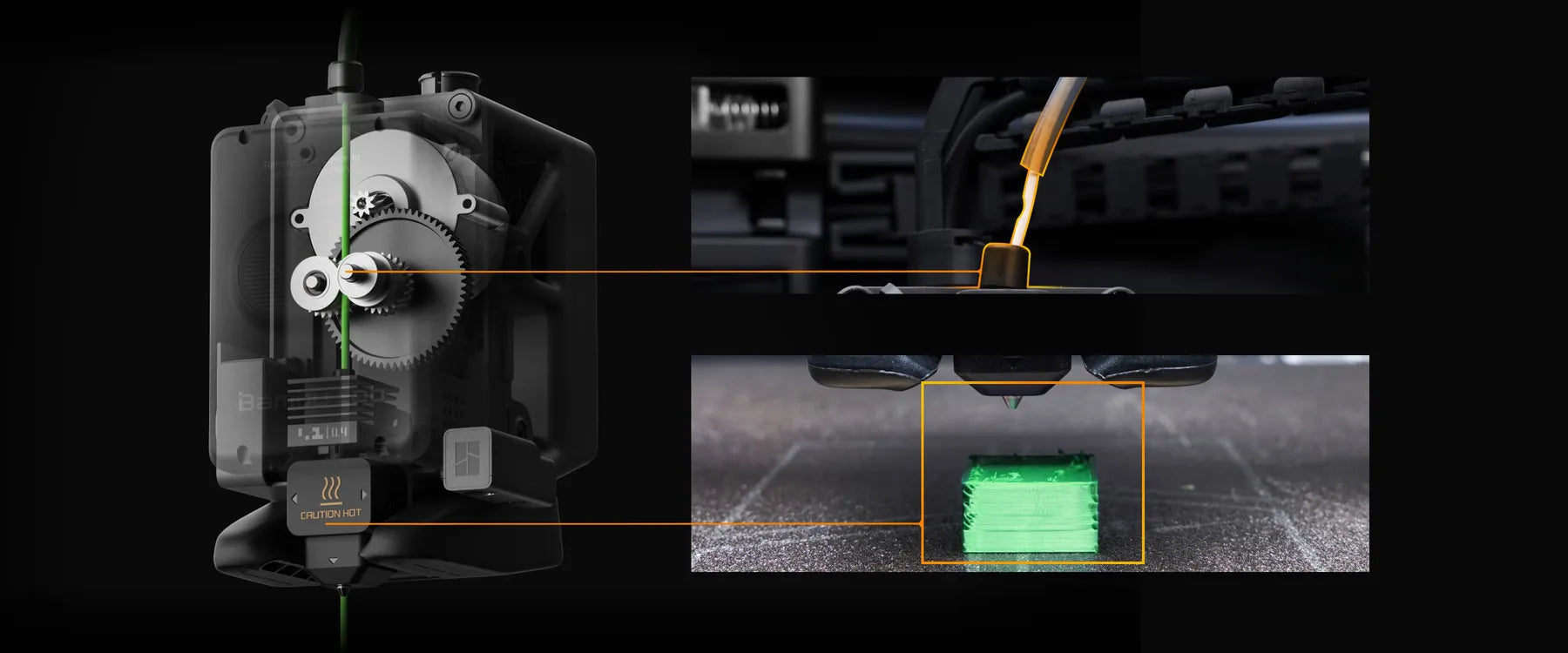

Servo extrusion, cameras, and a distributed sensor network monitor feeding, temperature, safety, and print quality throughout the job.
Large-Format Printing
Bigger, Faster, Better

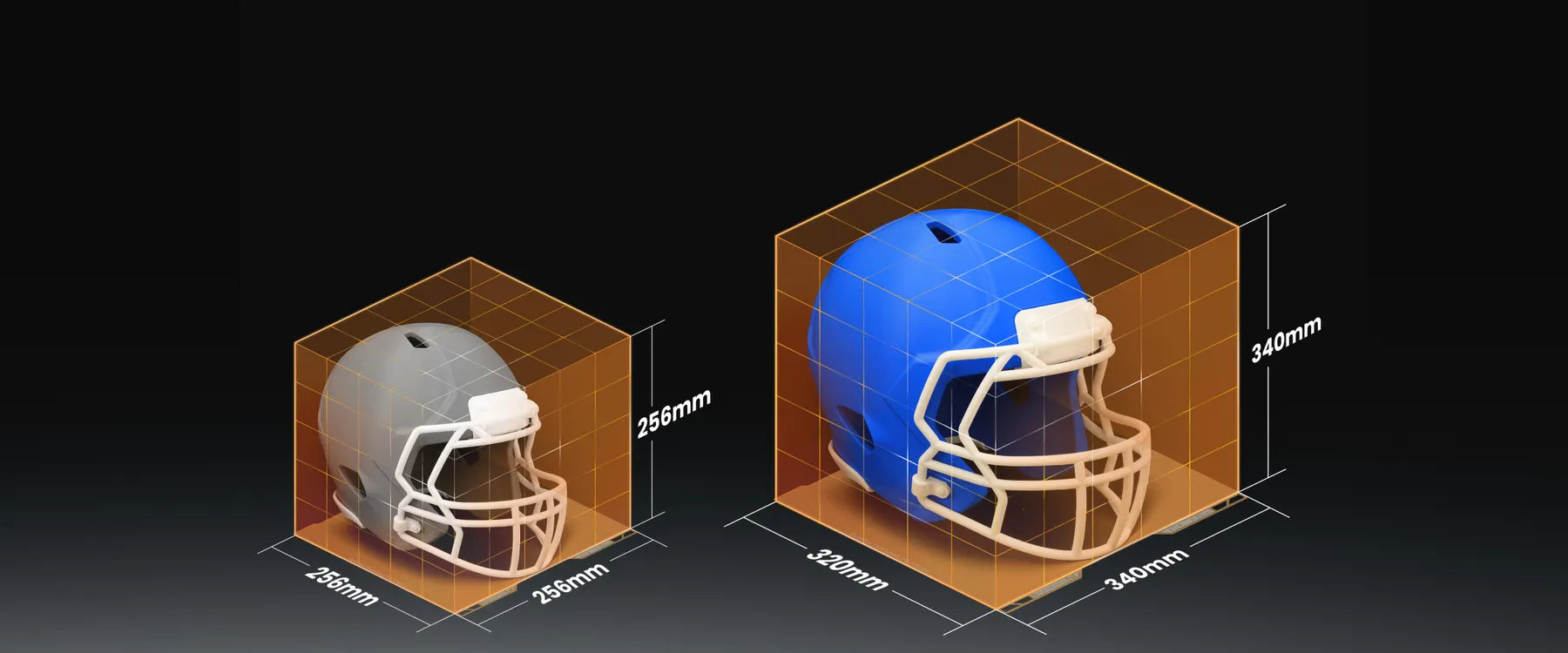

The 340 × 320 × 340 mm build volume supports full-scale parts and productive batches, while high-flow extrusion helps shorten demanding jobs.
Optional Creative Tools
Cut, Engrave, and Draw

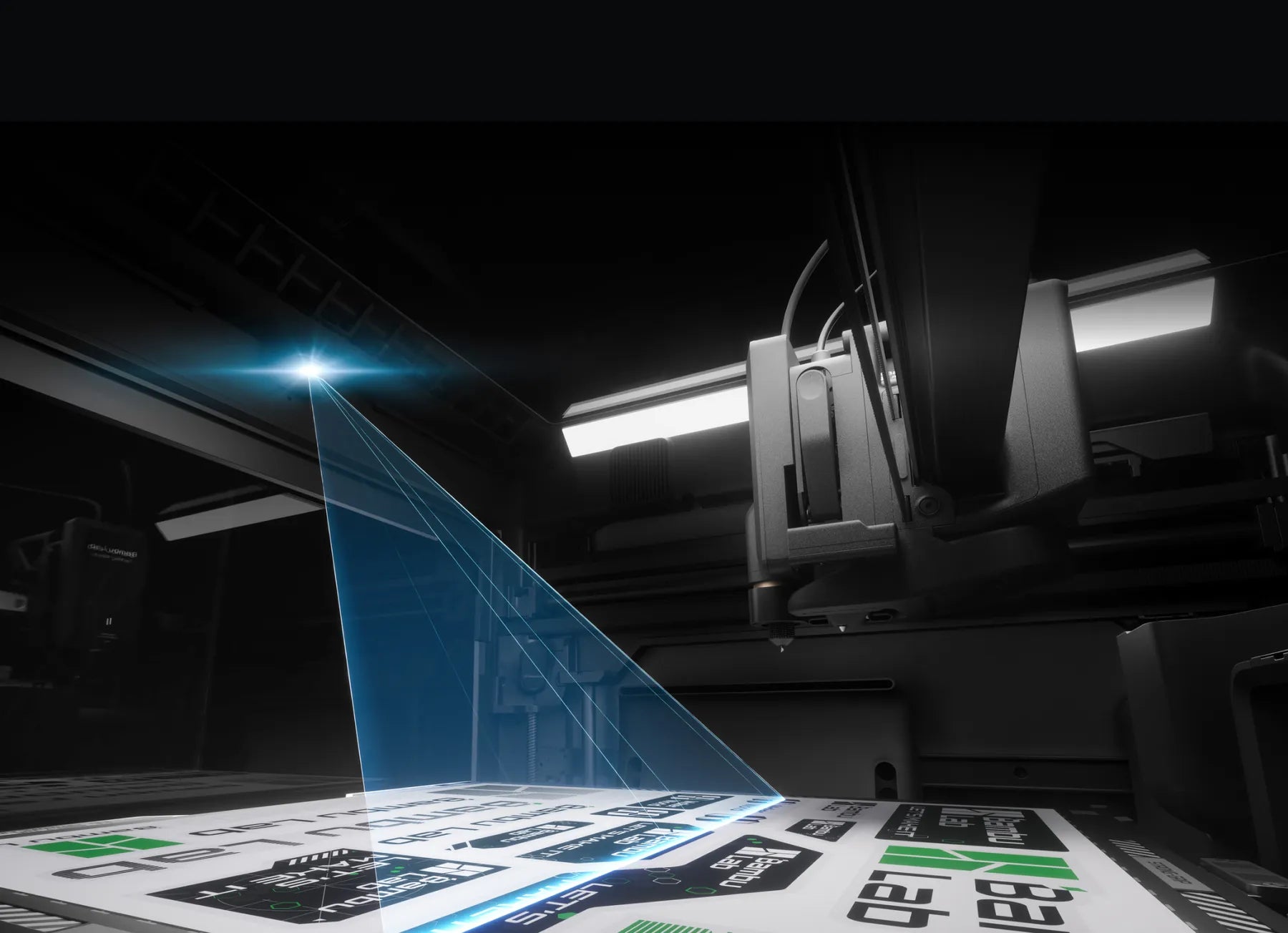

Compatible laser, cutting, and drawing modules turn the platform into a flexible workshop for both additive and flat-material projects.
مراجعات العملاء
الأسئلة الشائعة
Does the h2s support laser and cutting functions?
it supports 10w laser and cutting but does not support 40w laser.
Can a non-laser h2s be upgraded to a laser h2s?
yes. the upgrade kit and its installation guide will be available some time after the product launch. note that the upgrade kit uses an external air pump, which differs in installation structure from the built-in air pump. it must be installed externally and connected to the machine via an air tube. the upgraded printer has the same functionality and processing performance as the laser version.
Can the h2s be upgraded to an h2d?
no, it is recommended to choose the model that suits your needs when placing an order.
Is the h2s compatible with the first-generation ams or ams lite?
the first-generation ams is fully plug-and-play compatible with the h2s for multi-color printing but does not support ams drying. due to fundamental differences in the feeding mechanism and buffer structure, the h2s does not support ams lite.
How many ams 2 pro and ams ht units can the h2s support, and how many colors can it print?
the h2s supports up to 4 ams 2 pro and 8 ams ht units, totaling 12 units with 24 filament slots, enabling up to 24-color printing.
Are the hotend and silicone sock of the h2s compatible with the h2d or a1?
the h2s hotend and silicone sock are compatible with the h2d. while structurally similar to the a1 hotend, they are not fully compatible. for optimal print quality, we strongly recommend not using the a1 hotend on h2 series printers. using an h2 series hotend on an a1 printer is feasible, but it requires the h2 series silicone sock.
Are the h2s and a1 series tool heads the same? can the components on the tool head be shared with the a1 series?
the h2s tool head features a completely new design, with optimized and upgraded components, including the extruder motor, filament drive wheel, hotend heating assembly, and cooling fan. as a result, the components on the h2s tool head are not compatible with the a1 series, except for the cutter blade.
Are the build plates of the h2s and h2d compatible?
yes, they are compatible.
Does the h2s support motion accuracy calibration, and is the calibration plate from my previously purchased h2d compatible?
it supports motion accuracy calibration, and the h2d calibration plate is compatible.
The ams 2 pro connects to the printer via a 6-pin interface. what are the two remaining 4-pin interfaces on the back of the h2s printer used for?
the two 4-pin ports on the back are reserved for future expansion accessories. for example, to upgrade a non-laser version of the printer to a laser version, one of these ports can be used to connect an external air pump.
Does the h2s come with a standard usb drive, and what functions are affected without one? what are the usb drive specifications?
the package does not include a standard usb flash drive. you can still initiate printing normally without a usb, as the printer has built-in storage space to run print files. however, without a usb inserted, the following functions will be affected:
1. the recording and time-lapse photography functions can't be turned on;
2. printing cannot be initiated through the lan;
3. print files cannot be sent to the machine for storage through the bambu studio;
4. log files cannot be exported;
usb requirements: usb2.0 protocol or above (actual minimum write speed needs to be greater than 10mb/s), supported file formats are fat32 and exfat. and the printer only supports mounting one usb, and cannot connect multiple usb via a usb hub.
What precautions or recommendations are there for printing tpu with the h2s?
due to tpu’s flexible nature, which can cause issues during feeding and printing, we’ve created a dedicated wiki guide for tpu printing. following the guide ensures smooth tpu printing.
What precautions should be taken when using the laser function?
laser processing involves high-energy beams that may interact with flammable materials. never leave the machine unattended during laser operation, ensure no flammable or explosive items are nearby, and refer to the laser safety document for detailed safety guidelines.
