الخيوط ونماذج العرض الظاهرة في الصور غير مشمولة، إلا إذا ذُكرت صراحةً ضمن محتويات الحزمة المختارة.

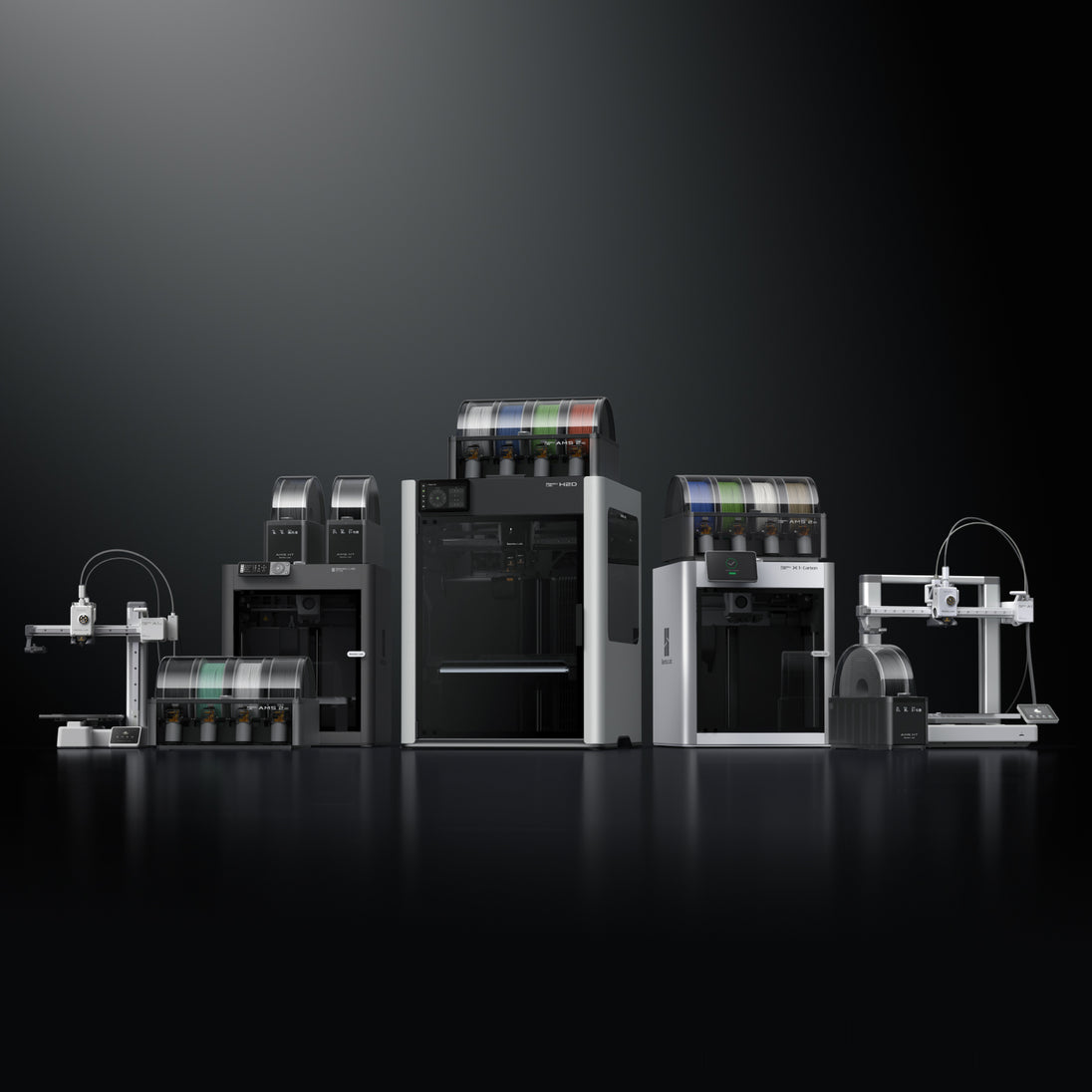

الطابعات وأنظمة التغذية الأخرى في صورة التوافق معروضة للتوضيح وليست مشمولة.

ميزات المنتج

  • تجفيف الخيوط عند 85°م بتهوية نشطة
  • تخزين محكم الإغلاق للخيوط
  • طباعة متعددة المواد وبما يصل إلى 24 لونًا
  • محرك تغذية مؤازر دون فرش
  • مزامنة الخيوط عبر RFID

ملاحظة مهمة

يتطلب AMS تجهيزات محددة من الملحقات حسب طراز طابعة Bambu Lab ثلاثية الأبعاد. يجب شراء جميع الملحقات المذكورة في الوصف بشكل منفصل.

AMS HT

السعر قيد التأكيد

ميزات المنتج

  • تجفيف الخيوط عند 85°م بتهوية نشطة
  • تخزين محكم الإغلاق للخيوط
  • طباعة متعددة المواد وبما يصل إلى 24 لونًا
  • محرك تغذية مؤازر دون فرش
  • مزامنة الخيوط عبر RFID

ملاحظة مهمة

يتطلب AMS تجهيزات محددة من الملحقات حسب طراز طابعة Bambu Lab ثلاثية الأبعاد. يجب شراء جميع الملحقات المذكورة في الوصف بشكل منفصل.
السعر قيد التأكيد
حدد نوع الطابعة التي تخطط لاستخدامها مع AMS
Bambu Lab AMS HT 1 Bambu Lab AMS HT 2 Bambu Lab AMS HT 3 Bambu Lab AMS HT 4 Bambu Lab AMS HT 5
Bambu Lab AMS HT 1 Bambu Lab AMS HT 2 Bambu Lab AMS HT 3 Bambu Lab AMS HT 4 Bambu Lab AMS HT 5

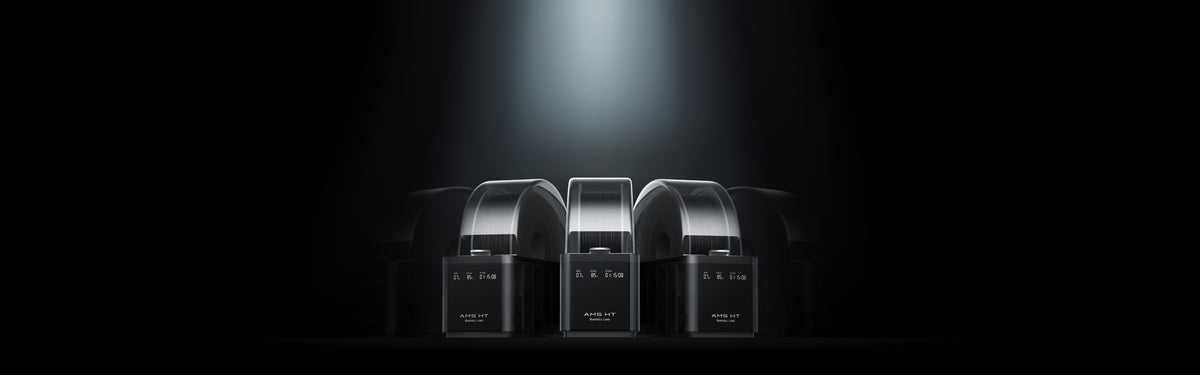

AMS HT AMS HT

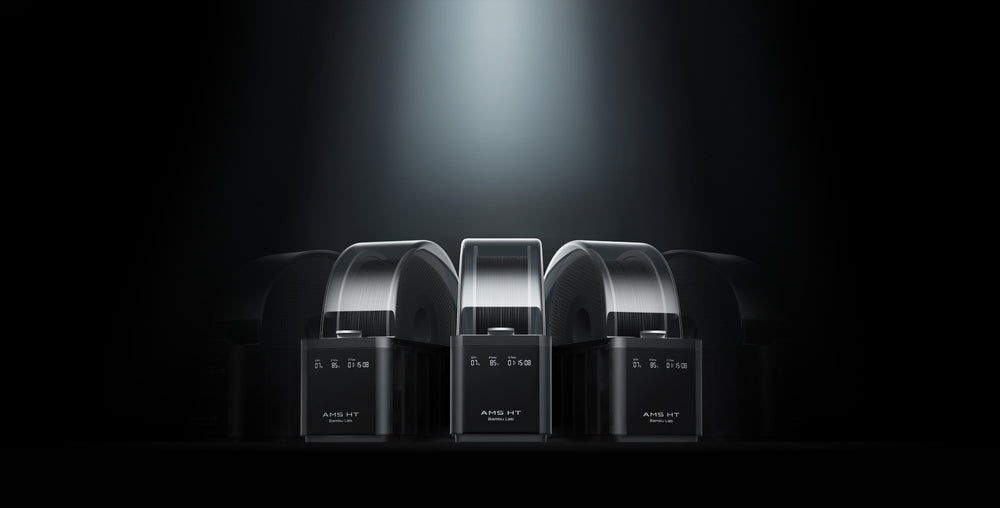

AMS HT

Specialized for High-Performance Materials

24-Colors/Multi-material

Serial connect up to 4 AMS 2 Pro & 8 AMS HT, total of 24 filaments

Electro-Magnetic Air Vent

Fast filament drying & air-tight filament storage

85°C Drying Temp

Specialized for high-performance filament drying

Brushless Motor

60% faster feeding speed

Engineered To Better Dry & Use High-performance Filaments

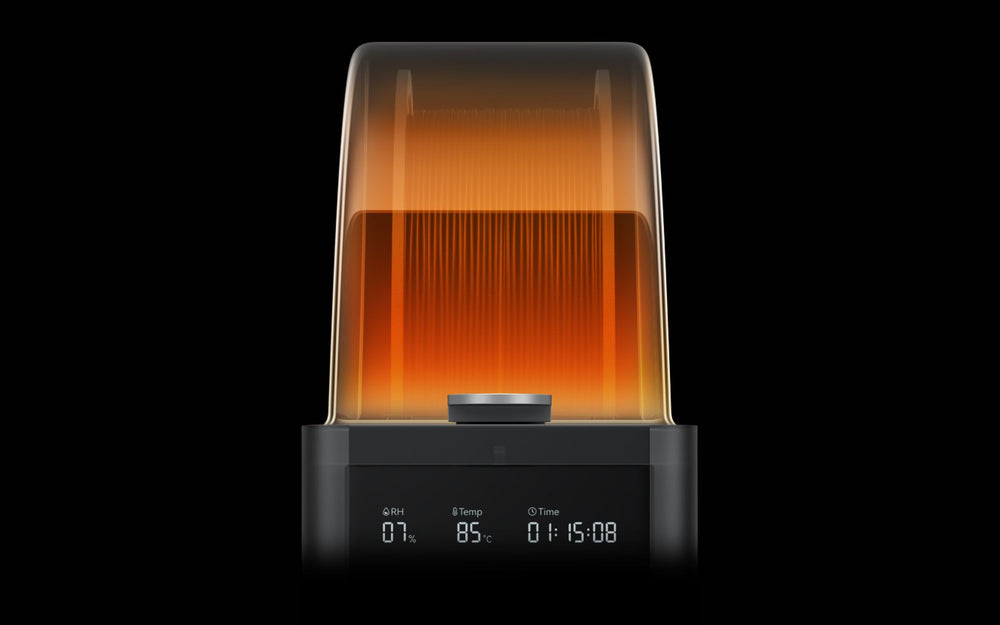

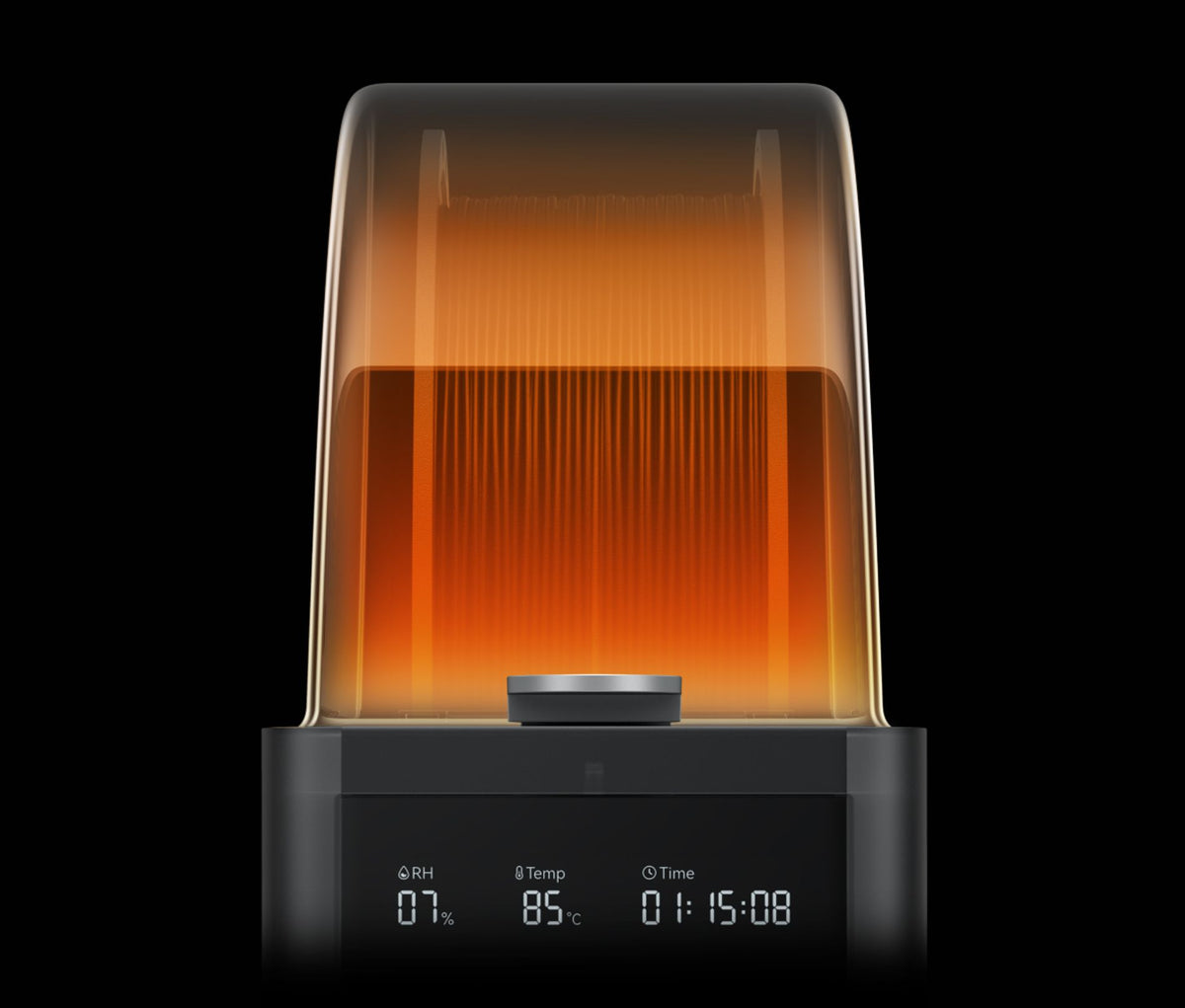

High-temp Drying High-temp Drying

High-temp Drying

Drying temperature up to 85°C, optimized for high-temperature materials

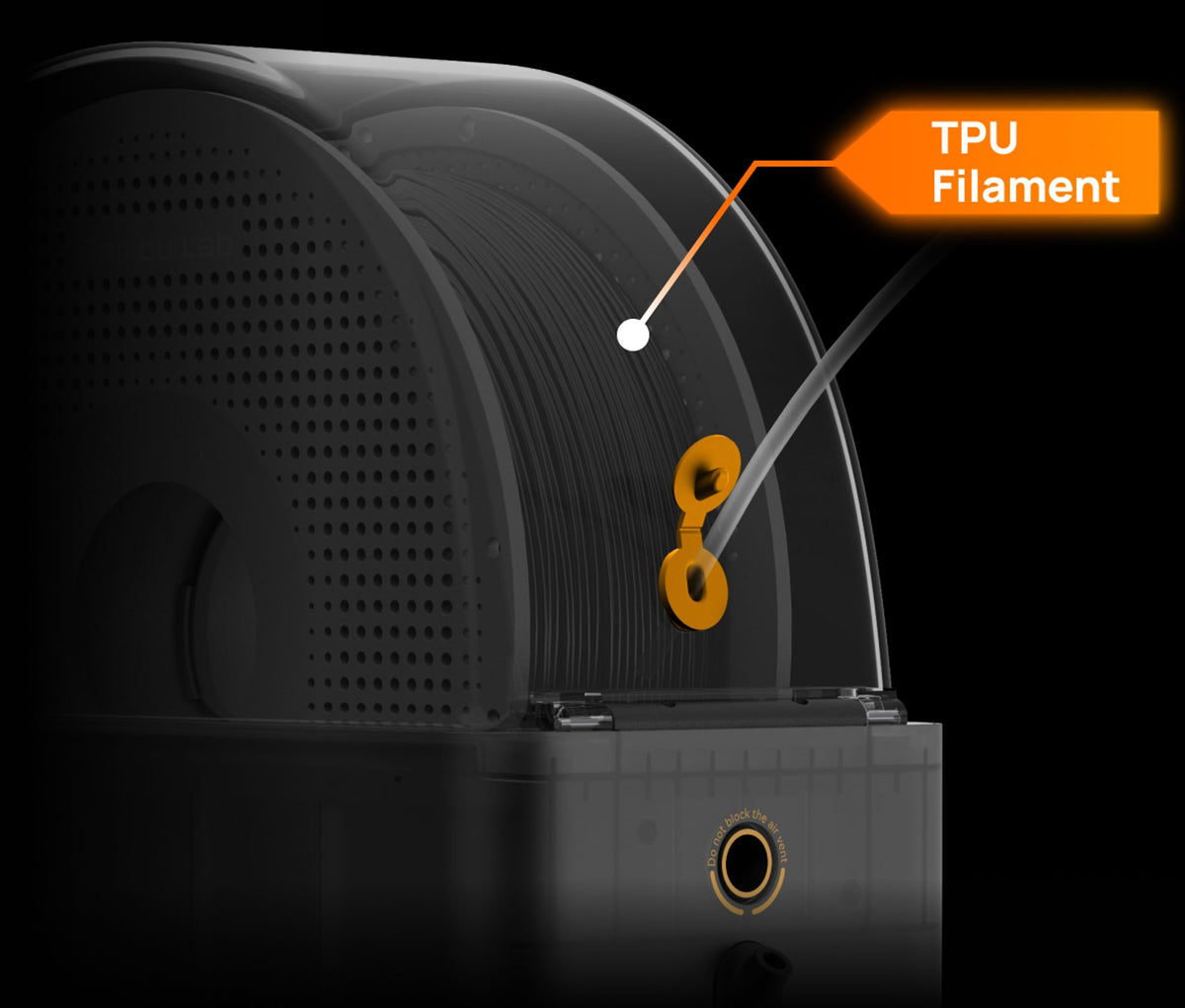

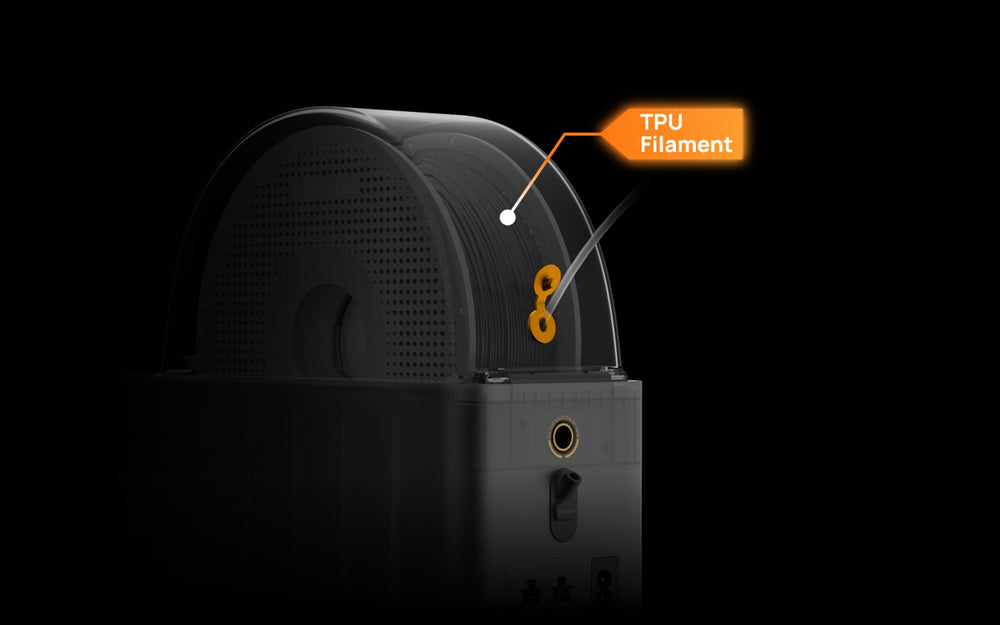

Bypass Outlet Bypass Outlet

Bypass Outlet

Independent filament outlet designed for soft or brittle materials

Dry Filament Quickly and Intelligently

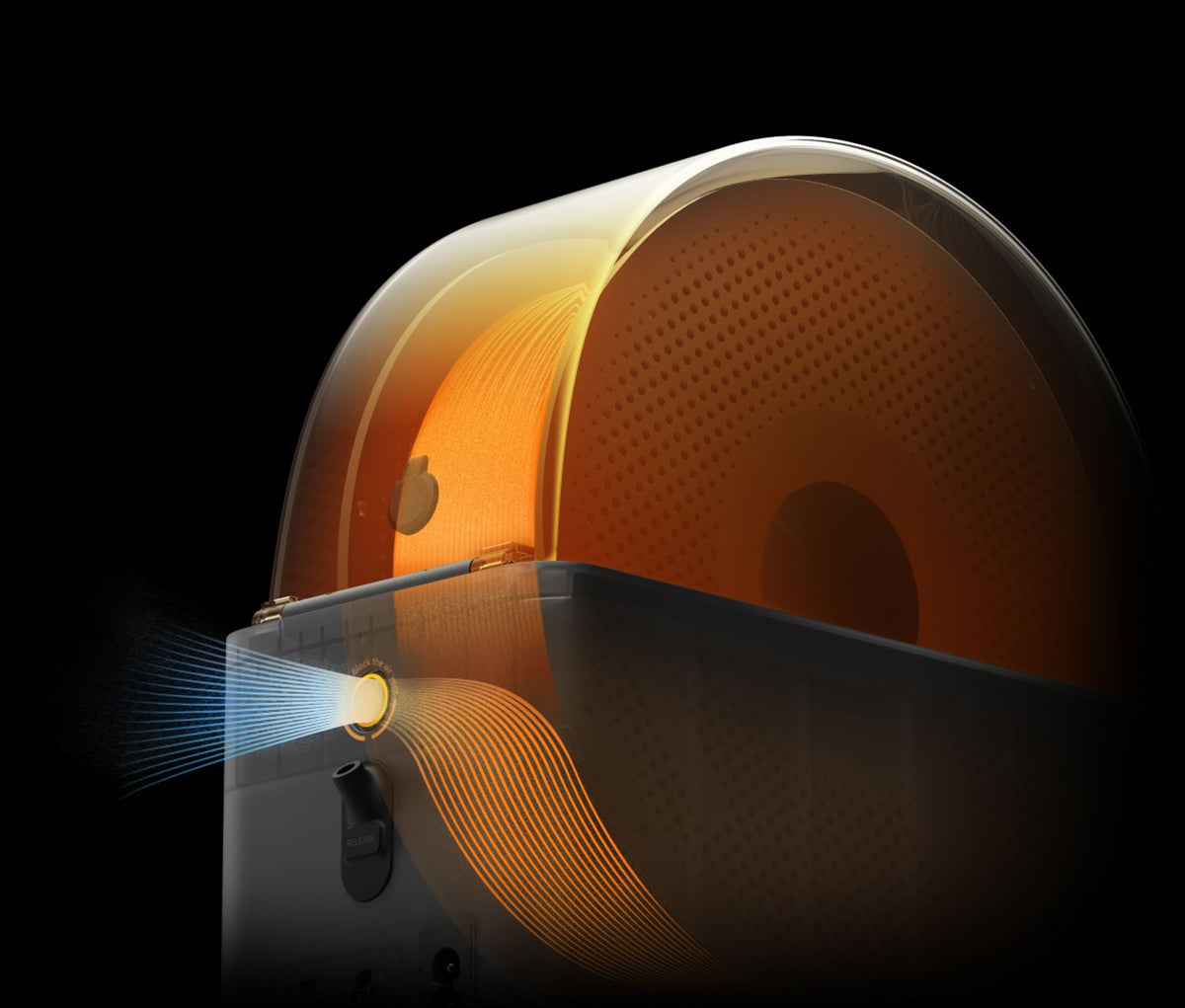

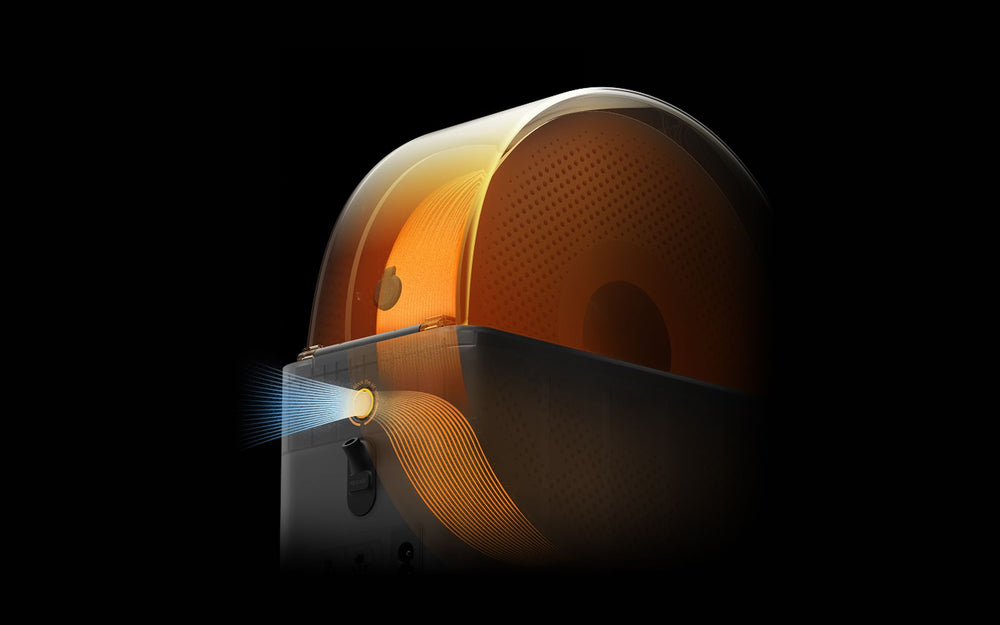

Electro-Magnetic Air Vent Electro-Magnetic Air Vent

Electro-Magnetic Air Vent

Automated venting facilitates dehumidification during drying and airtight sealing for weeks of quality printing

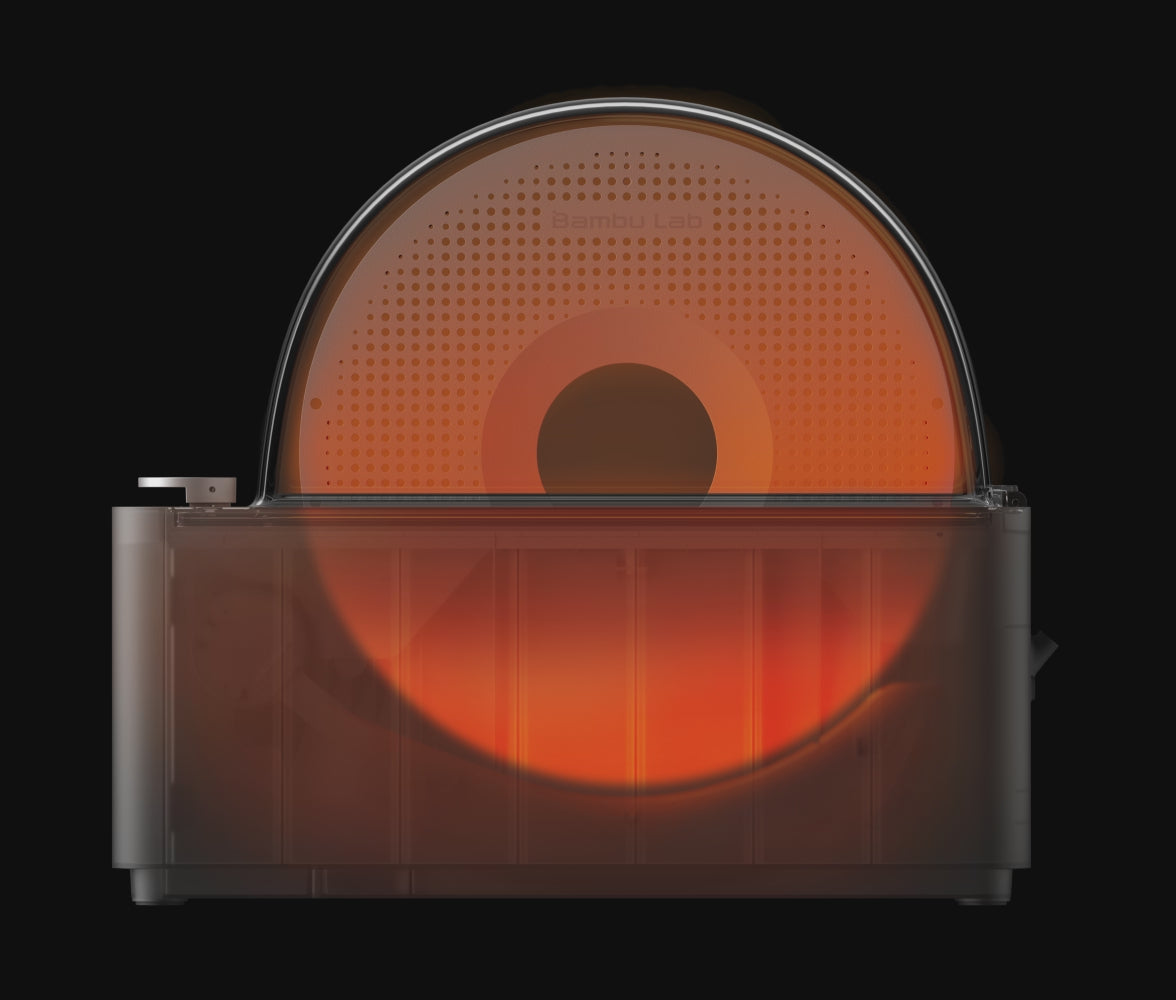

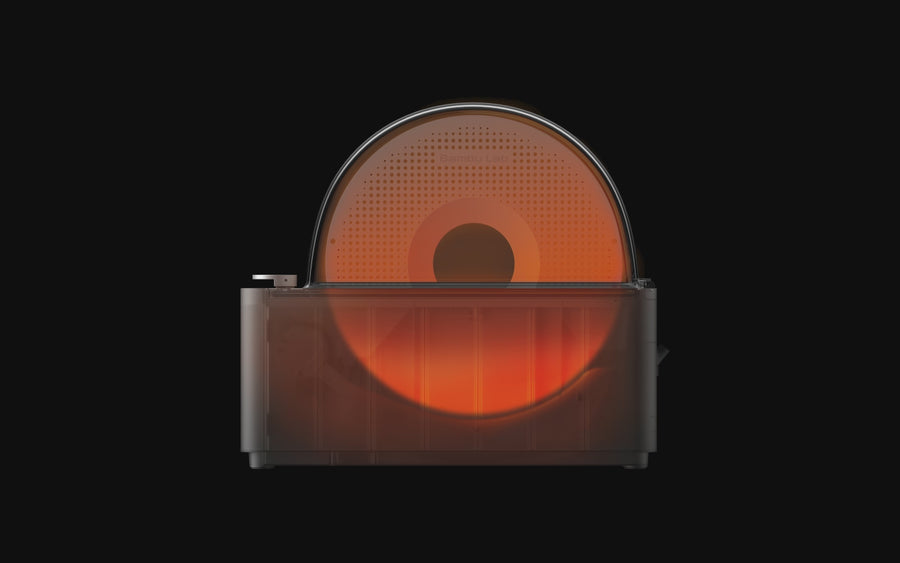

Auto-rotate Drying

During the drying process, the filament spools rotate automatically to ensure more even drying

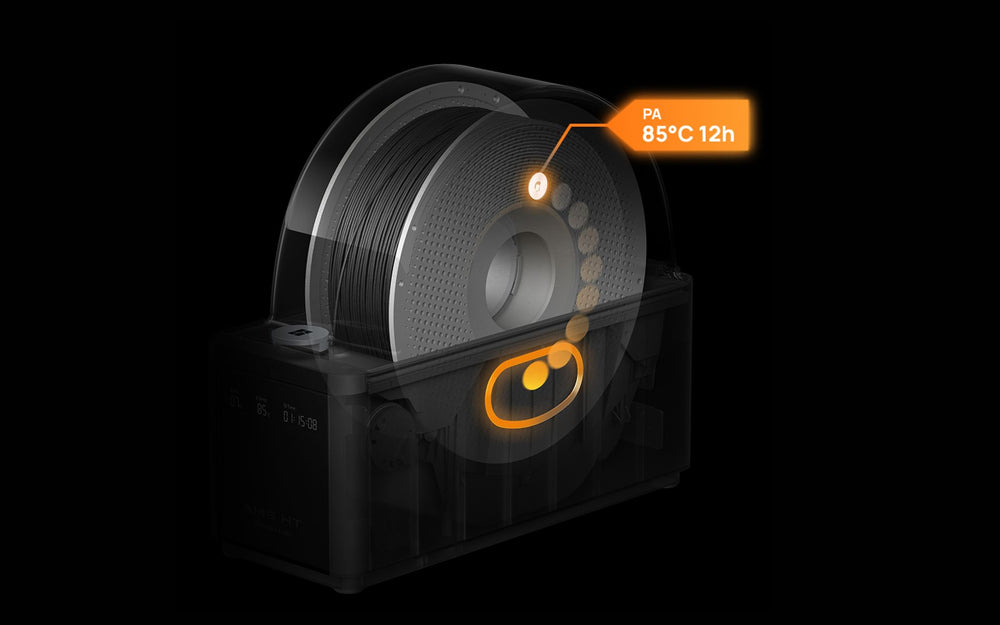

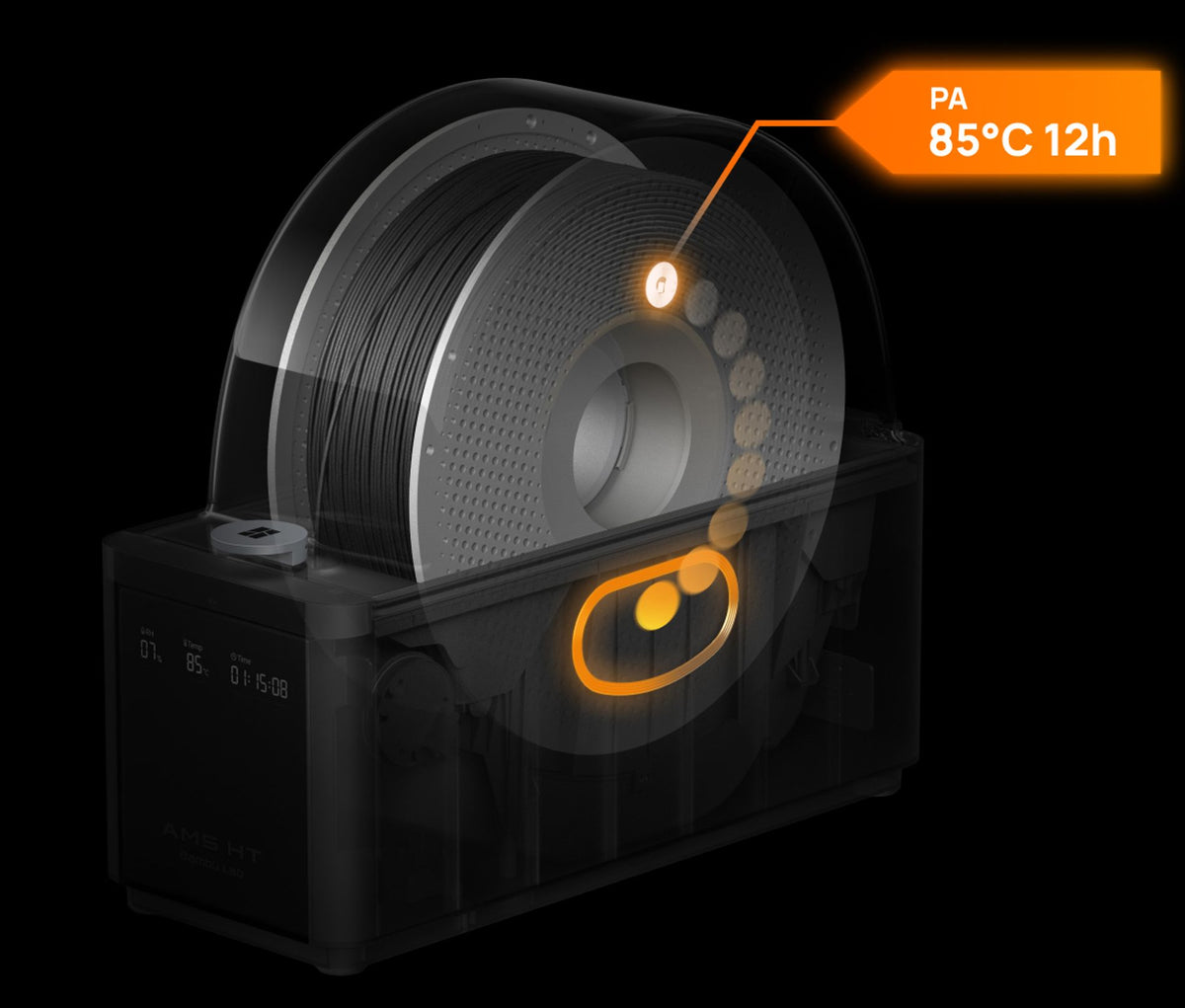

RFID Sync RFID Sync

RFID Sync

AMS HT uses RFID to auto-match drying settings for Bambu official filaments, no manual input needed

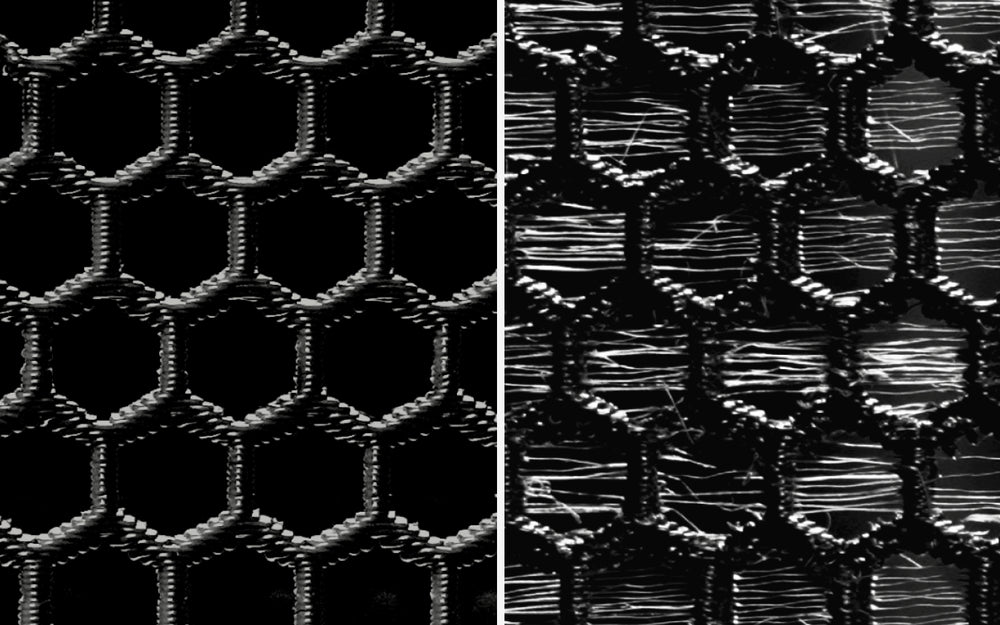

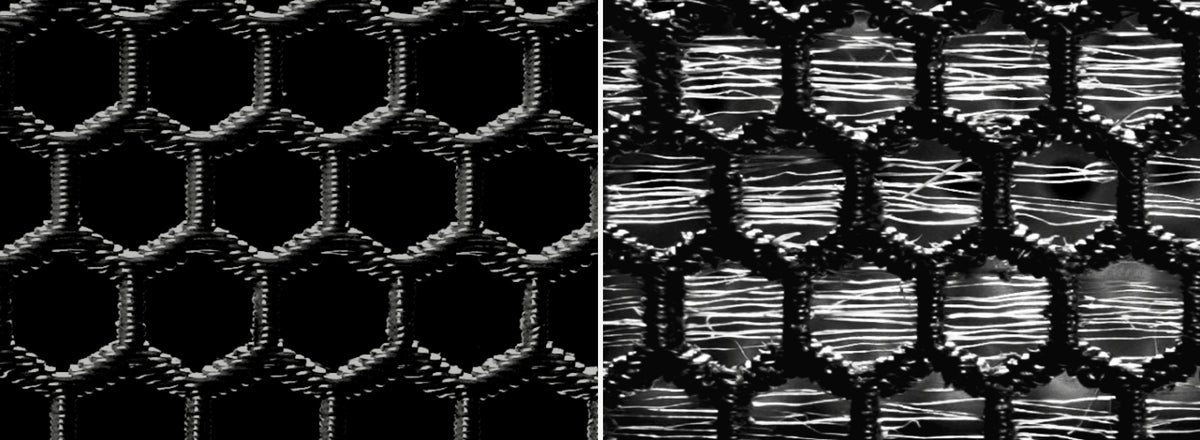

Bambu PET-CF Bambu PET-CF

Moist

Dry

Bambu PET-CF

Evolved, Polished Design Details

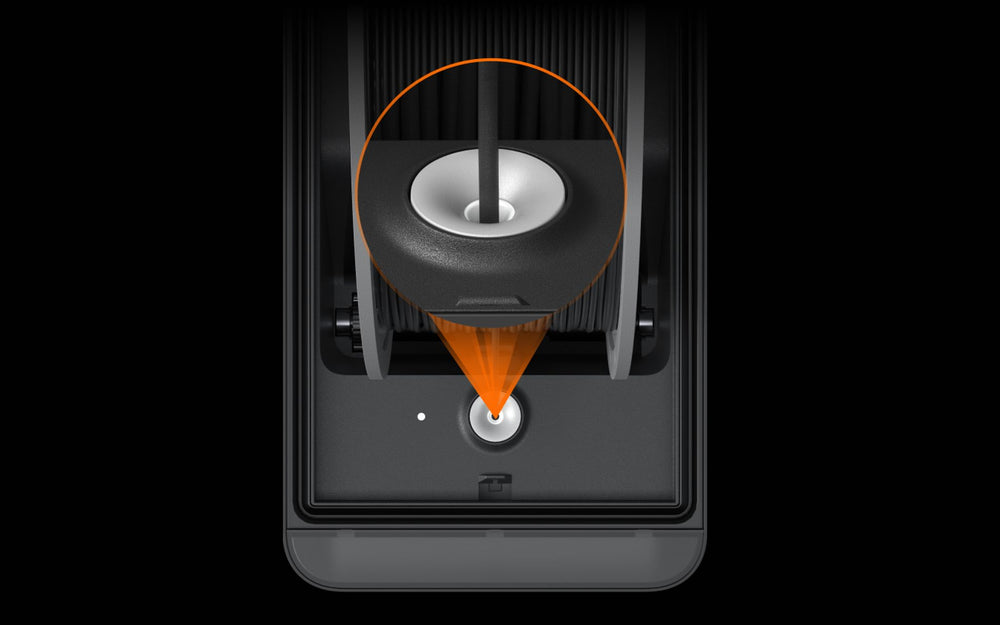

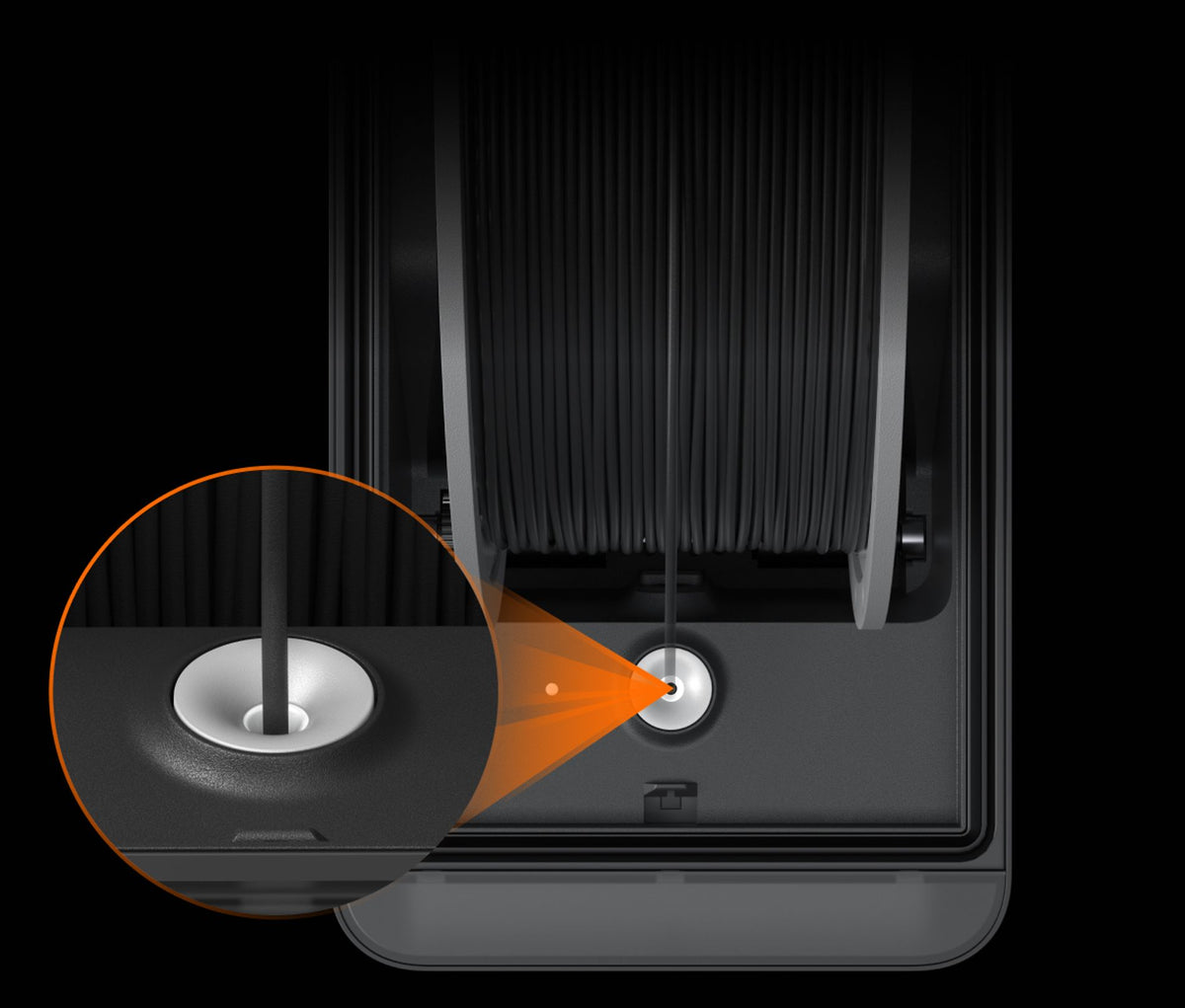

Ceramic Inlet Ceramic Inlet

Ceramic Inlet

Ceramic filament inlets with Vickers hardness of 1200 significantly enhance durability

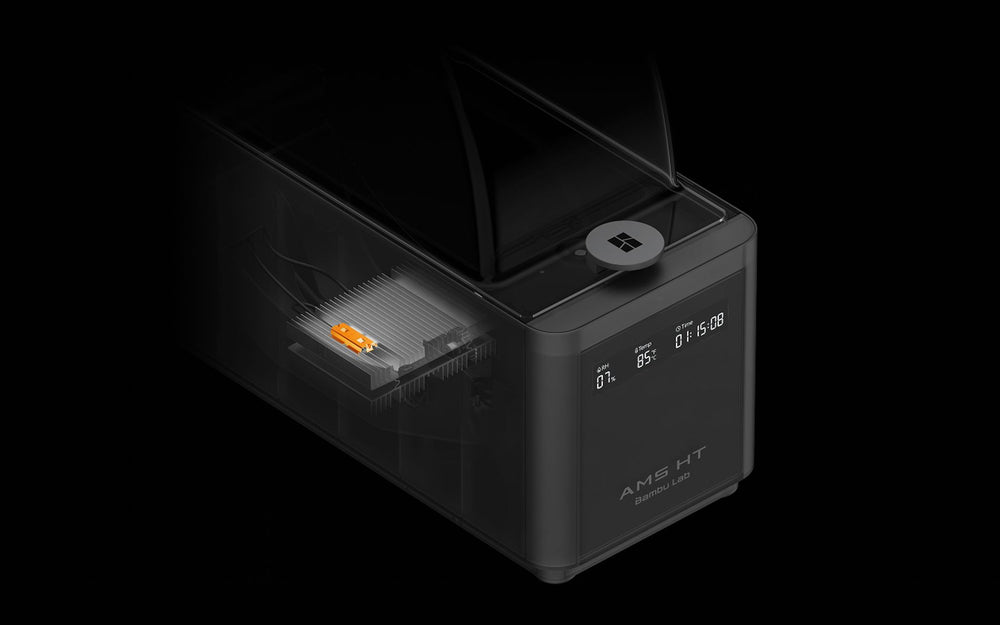

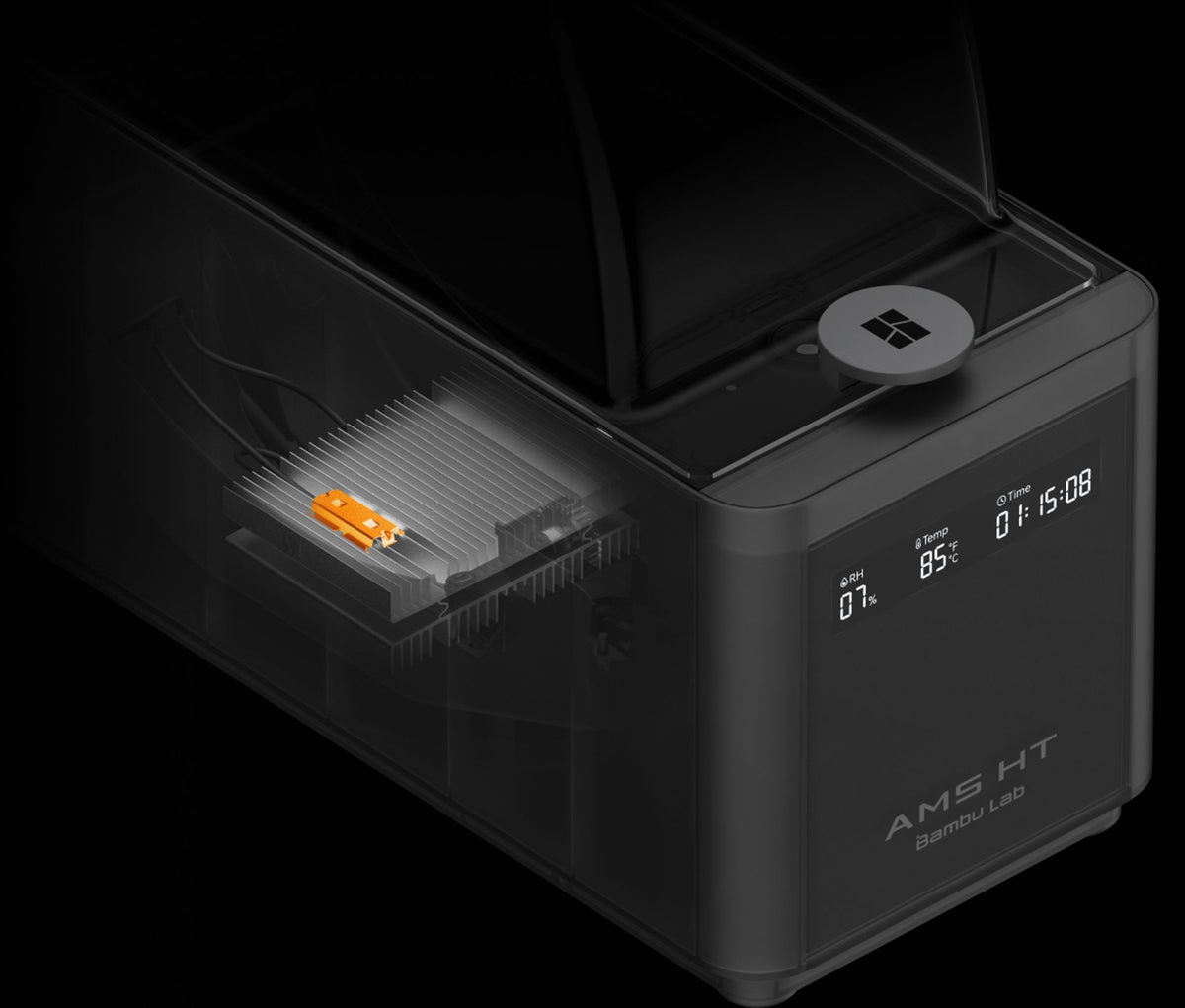

Over Temperature Protection Over Temperature Protection

Over Temperature Protection

Accurate temperature sensor and physical failsafe for safe, precise heating

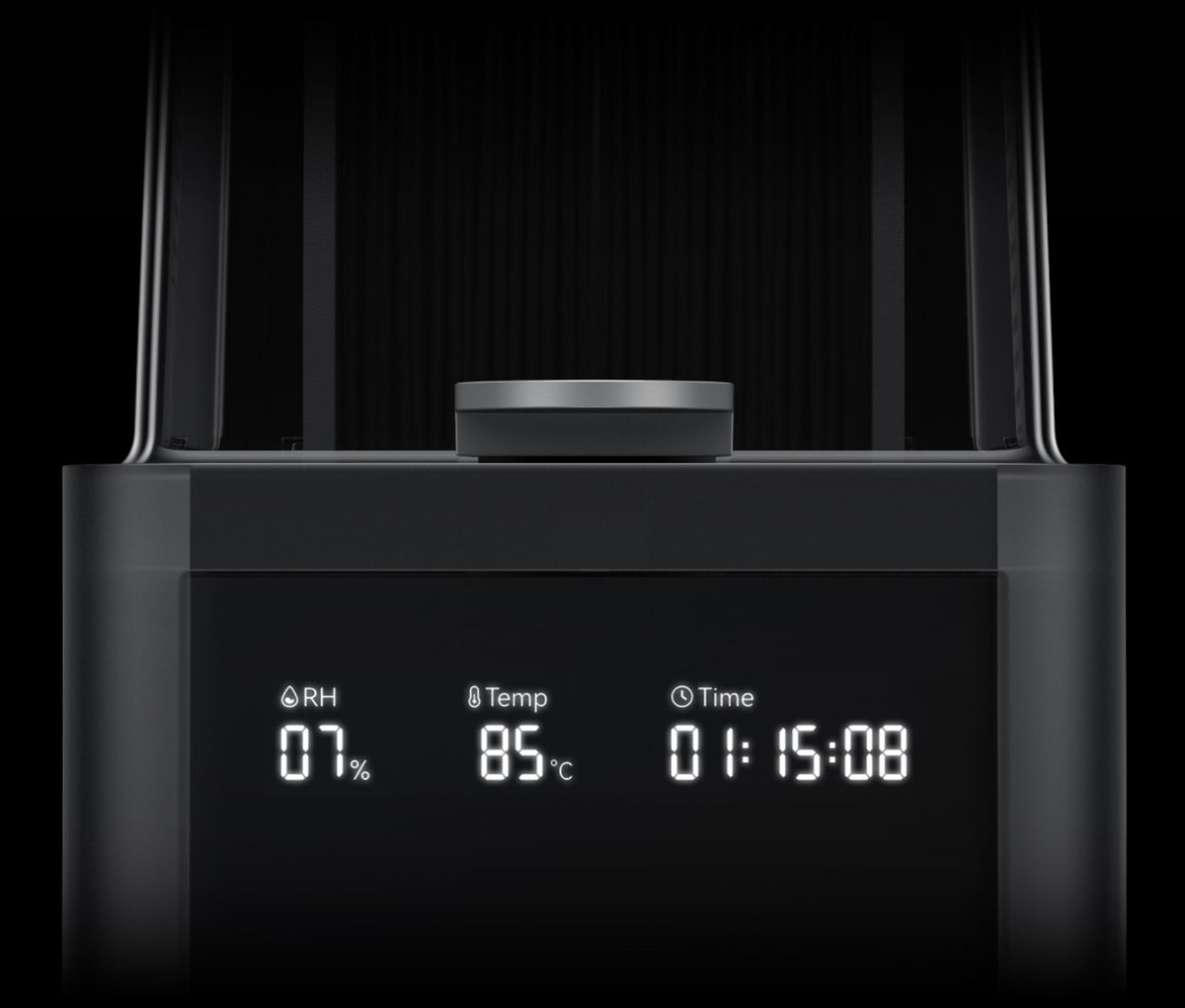

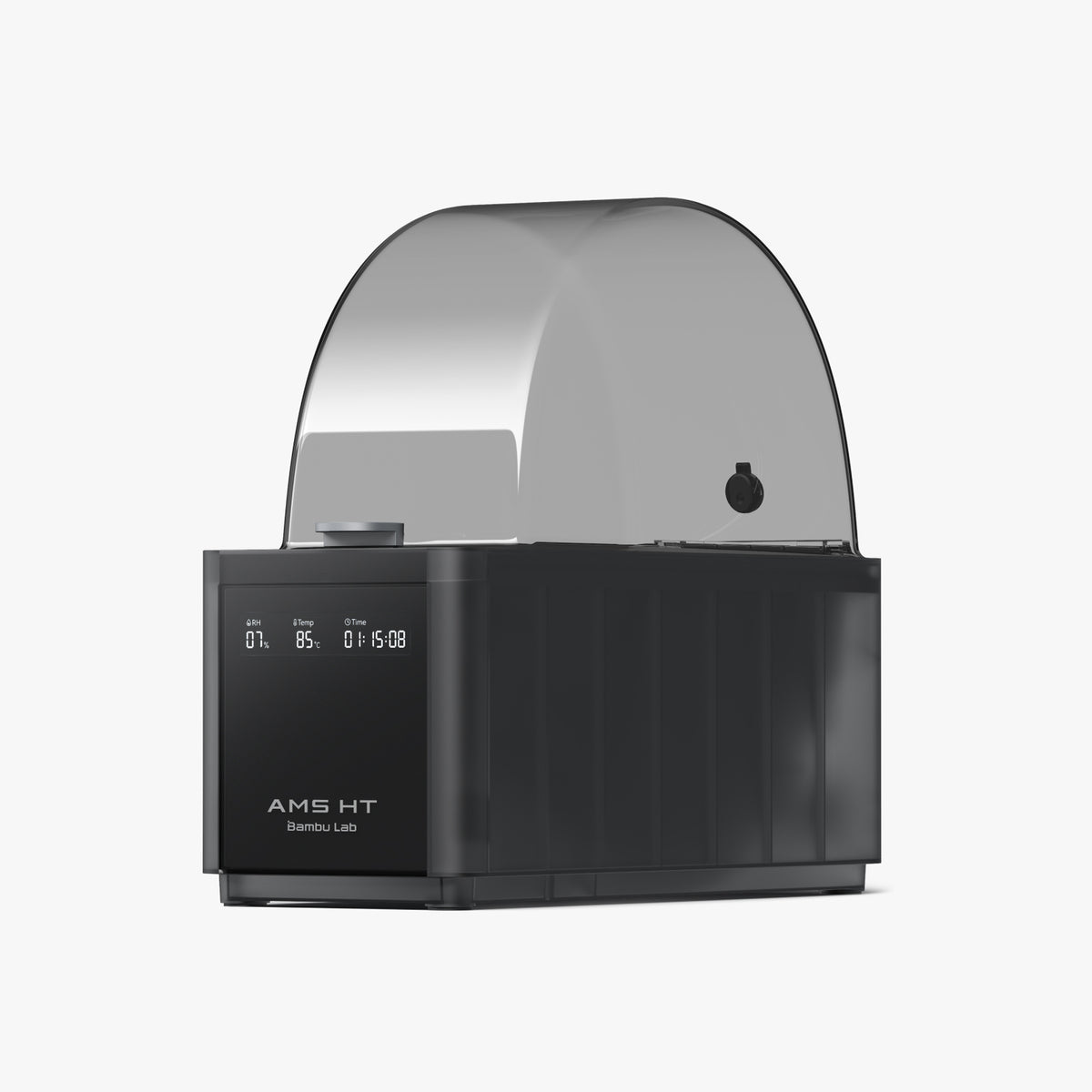

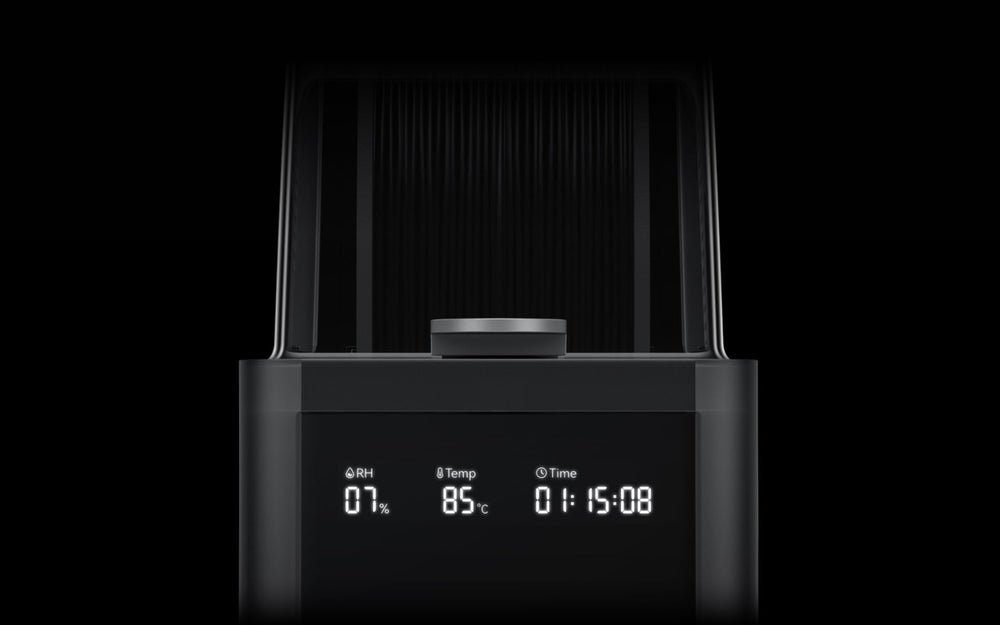

Status Display Status Display

Status Display

Clear digital display for easy monitoring of drying status

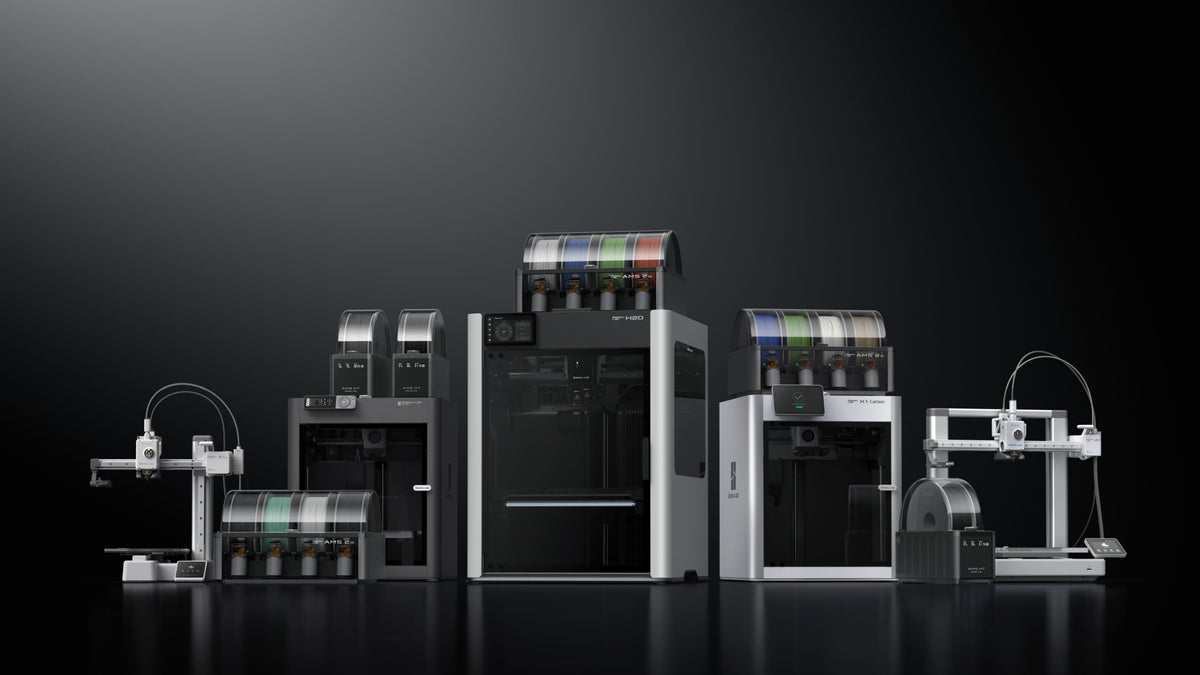

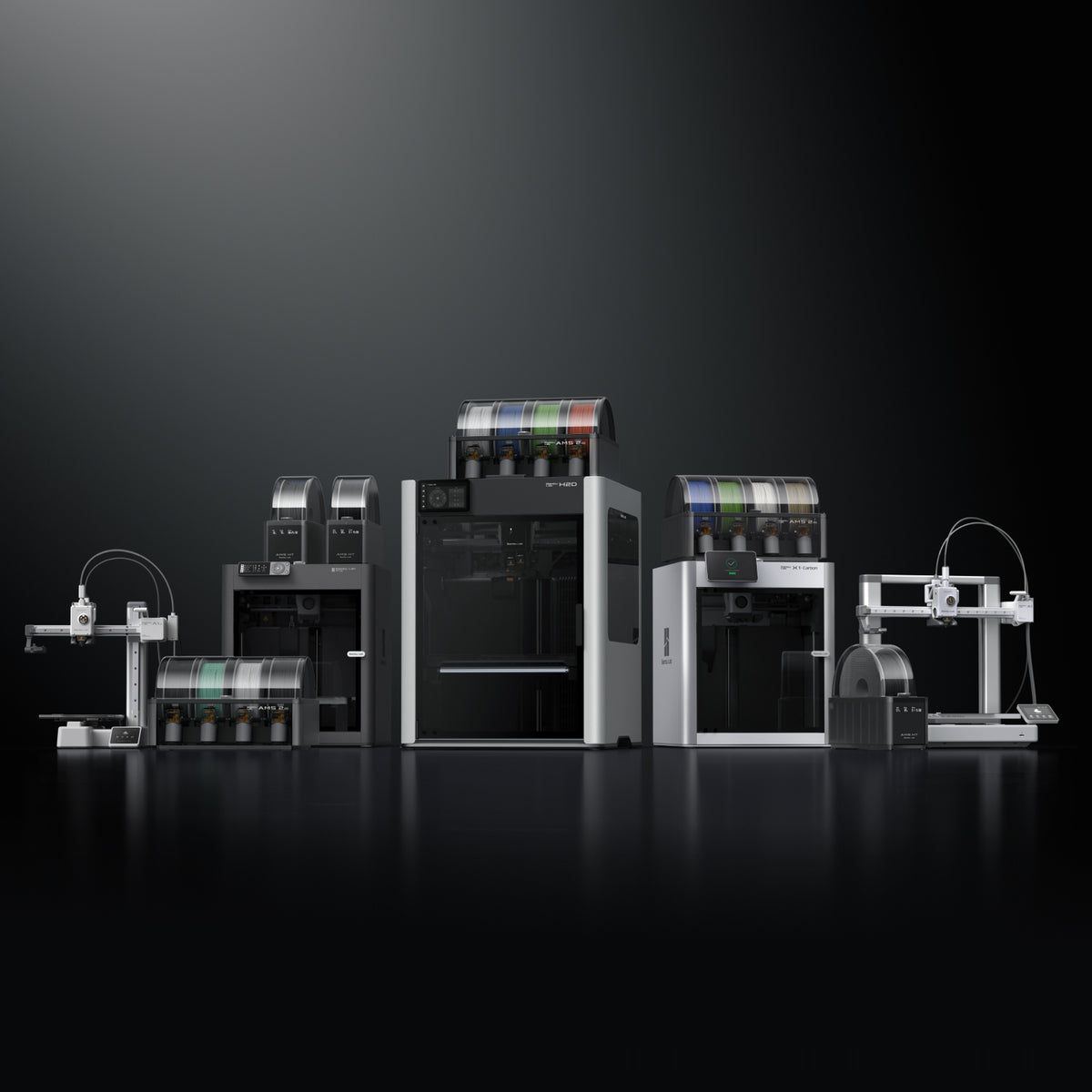

Compatible With All Bambu Lab Printers Compatible With All Bambu Lab Printers

Compatible With All Bambu Lab Printers

The AMS HT will be compatible with all Bambu Lab products.

مواصفات المعالجة الحرارية لنظام إدارة الأصول (AMS)

ItemSpecification
BodyDimensions

114*280*245 mm³
Net Weight

1.21 kg
Housing Material

PC/PA
Flame Retardant Grade

UL 94 V-0
Screen

Supports displaying real-time temperature and humidity, and remaining drying duration.
PrintingFilament Supported

PLA, PETG, ABS, ASA, PET, PA, PC, PVA (dried), BVOH (dried), PP, POM, HIPS, Bambu PLA-CF/PAHT-CF/PETG-CF/Support for PLA/PETG, and TPU for AMS.
Bypass Filament Outlet: TPE, generic TPU, Bambu PET-CF/TPU 95A, and other filament that contains carbon fiber or glass fiber.
Filament Not Supported

PVA (damp), BVOH (damp)
Filament Diameter

1.75 mm
Spool Dimension

Width: 50 mm-68 mm
Diameter: 197 mm-202 mm
RFID Identification

Supported
Filament Odometry

Supported
DryingMaximum Temperature

85 °C
Filament Supported

PLA, PETG, Support for PLA/PETG, ABS, ASA, PET, PA, PC, PVA, BVOH, PP, POM, HIPS, Bambu PLA-CF/ PAHT-CF/ PETG-CF, and TPU for AMS
Active Moisture Discharge

Supported
Rotating Drying Mode

Supported
Sealed Storage

Supported
Top Lid Open Detection

Supported
Temperature and Humidity Detection and Maintenance

Supported. Real-time information can be displayed on the screen, printer UI, Bambu Studio, and Bambu Handy.
Voltage

DC: 24 V
AC: 100 V–240 V~, 50 Hz/60 Hz
Average Power

150 W
Download TDS

What’s in the Box

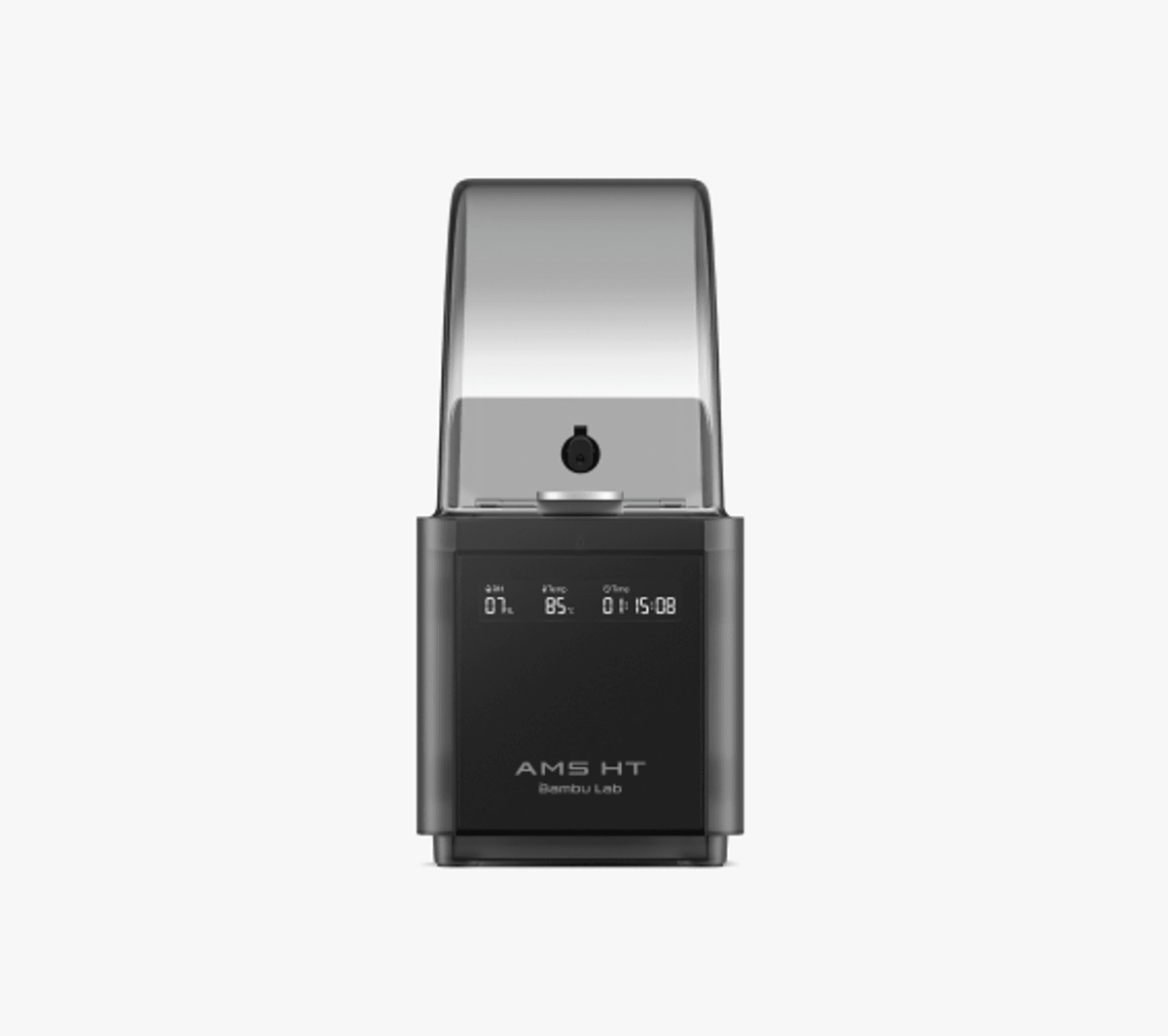

Bambu AMS HT

Bambu AMS HT

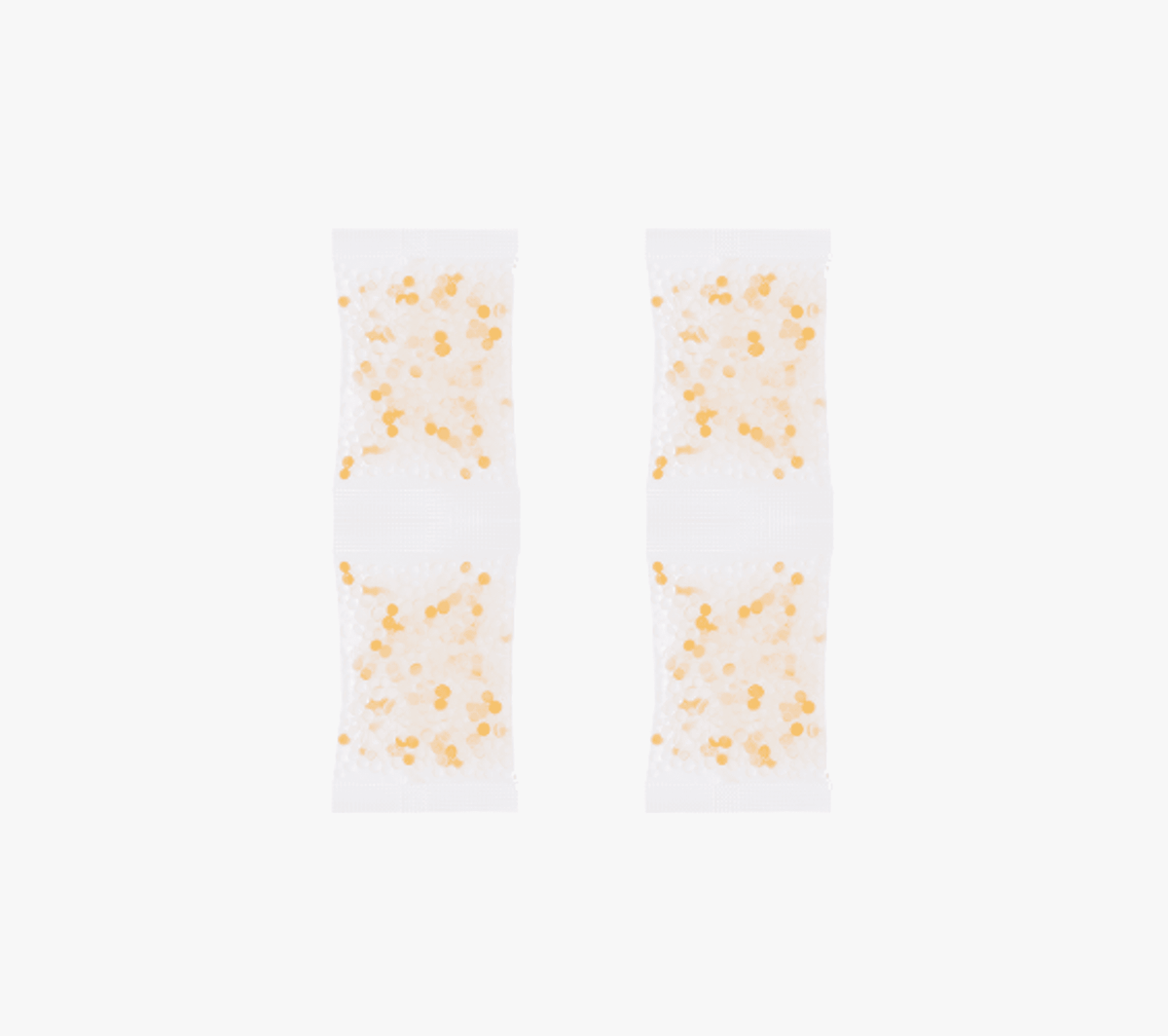

Desiccant

Desiccant

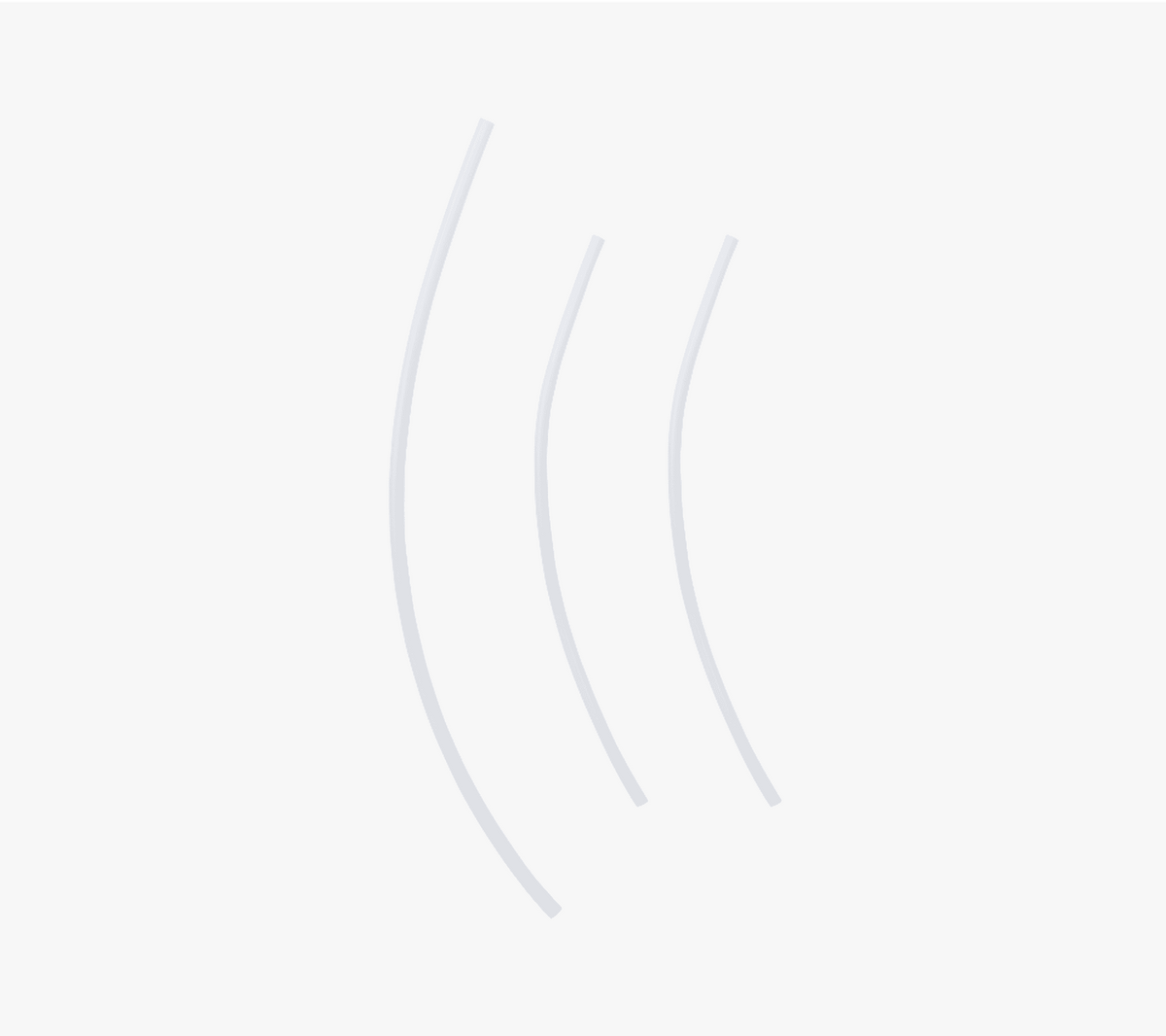

PTFE Tube (263 mm ×2 + 900 mm ×1)

PTFE Tube (263 mm ×2 + 900 mm ×1)

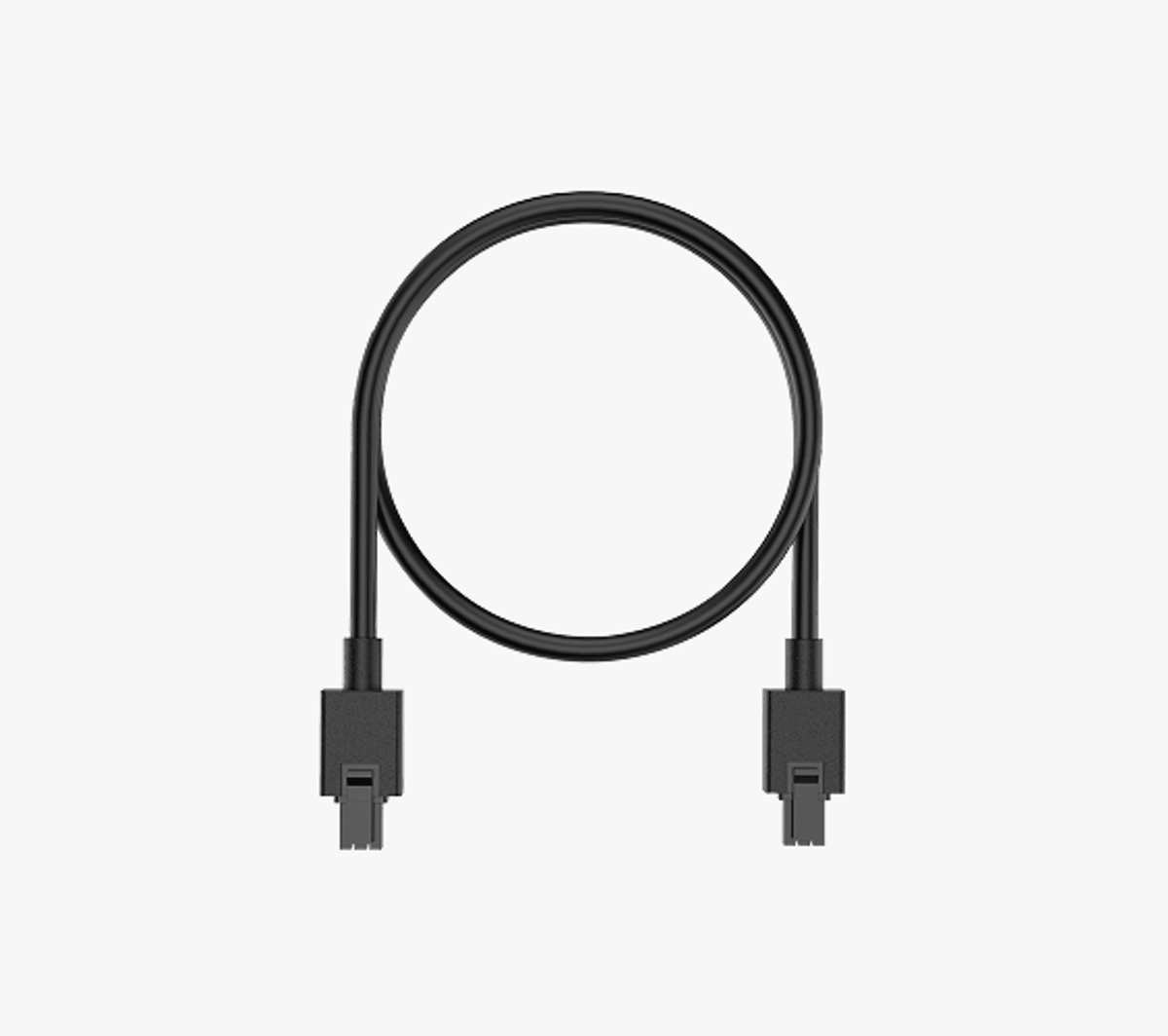

Bambu Bus Cable-6Pin

Bambu Bus Cable-6Pin

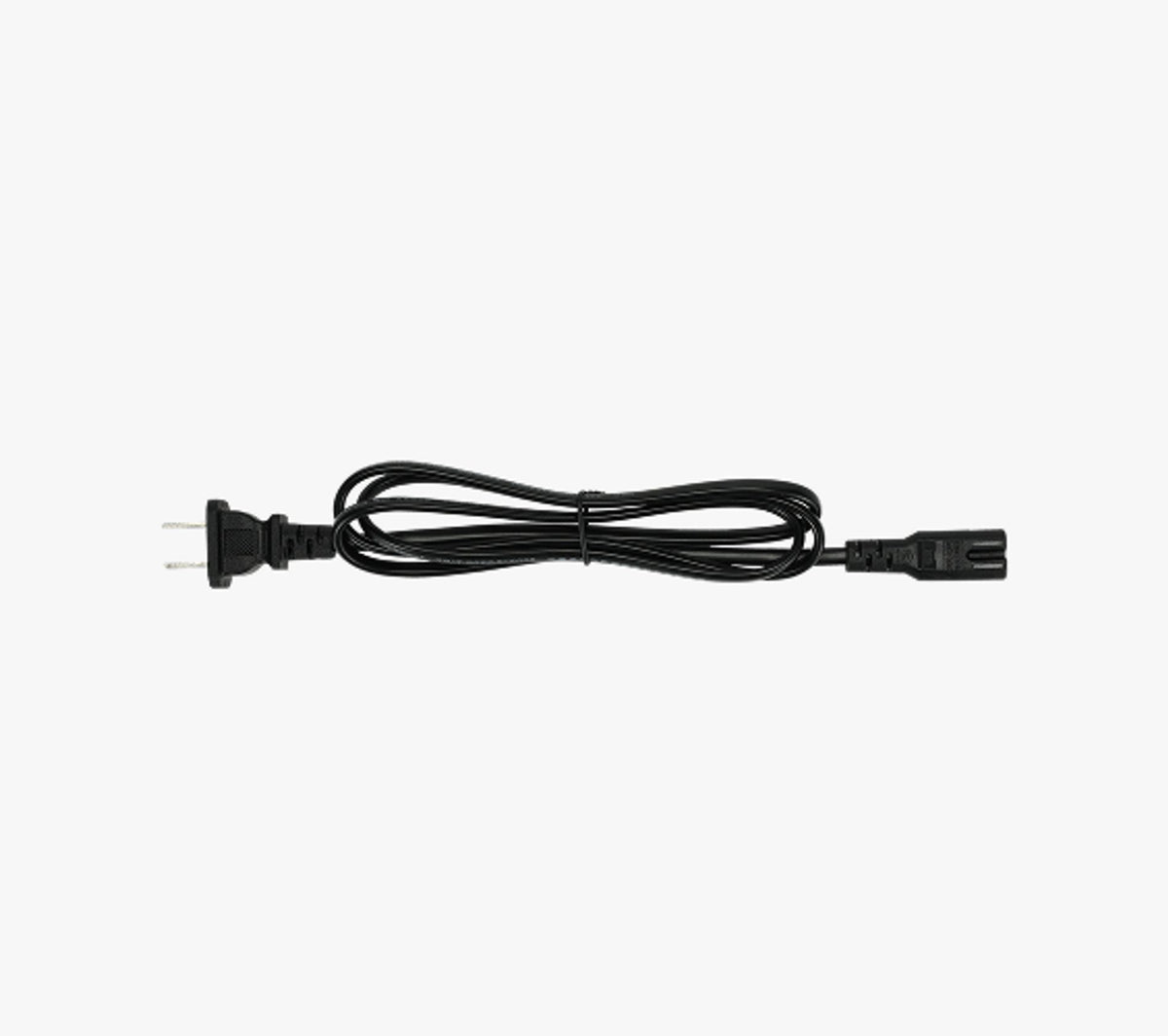

Power Cord (For AMS HT Only)

Power Cord (For AMS HT Only)

الأسئلة الشائعة

Explore more about AMS HT

1.What is the difference between the two discharge ports on the back of the machine?
The port at the rear of the top cover is specifically for TPU filament. Due to the softness of the TPU filament, it is easy to fail when using the AMS 2 Pro automatic feeding function. When using the TPU, insert it into the AMS HT and ensure the material tray rotates in the correct direction. Insert the material tube into the TPU output port and manually push the filament through the PTFE tube until it is fully loaded into the extruder.

Note:
  • 1.When using TPU, AMS HT cannot use the automatic feed and return function, but can be used as a drying box to prevent material moisture.
  • 2.AMS HT won't be able to run filament drying while feeding filament and initiating a print via the bypass port.
2.Can the AMS HT be used with all series printers?
Yes, AMS HT is compatible with all printers.

The AMS HT requires specific accessory configurations for various Bambu Lab 3D printers.

See the Multiple AMS Units Connection Guide for detailed setup instructions.
3.Can I print and dry at the same time?
Certain models currently support the Simultaneous Drying and Printing Function.Please refer to the Wiki for the minimum supported firmware version and operation guidelines.
4.How many AMS HT units can be connected to the X1 series and P1 series at most?
X1 and P1 series printers support up to 4 AMS HT connections at the same time.
5.Can the AMS HT be directly connected to the printer for drying?
H2D and X/P/A series printers are connected to AMS HT and use drying function. Each AMS HT requires an external 220V power supply for drying It is not supported to draw power from the printer for drying (The power adapter is pre-included with the product package).
6.Does it support standalone drying without connecting to the printer?
When using the AMS HT drying function, the AMS HT must be connected to the printer via a 6-pin bus cable to ensure that the printer is powered on and set to filament drying mode.
The AMS HT cannot perform standalone drying without a connection to the printer.
