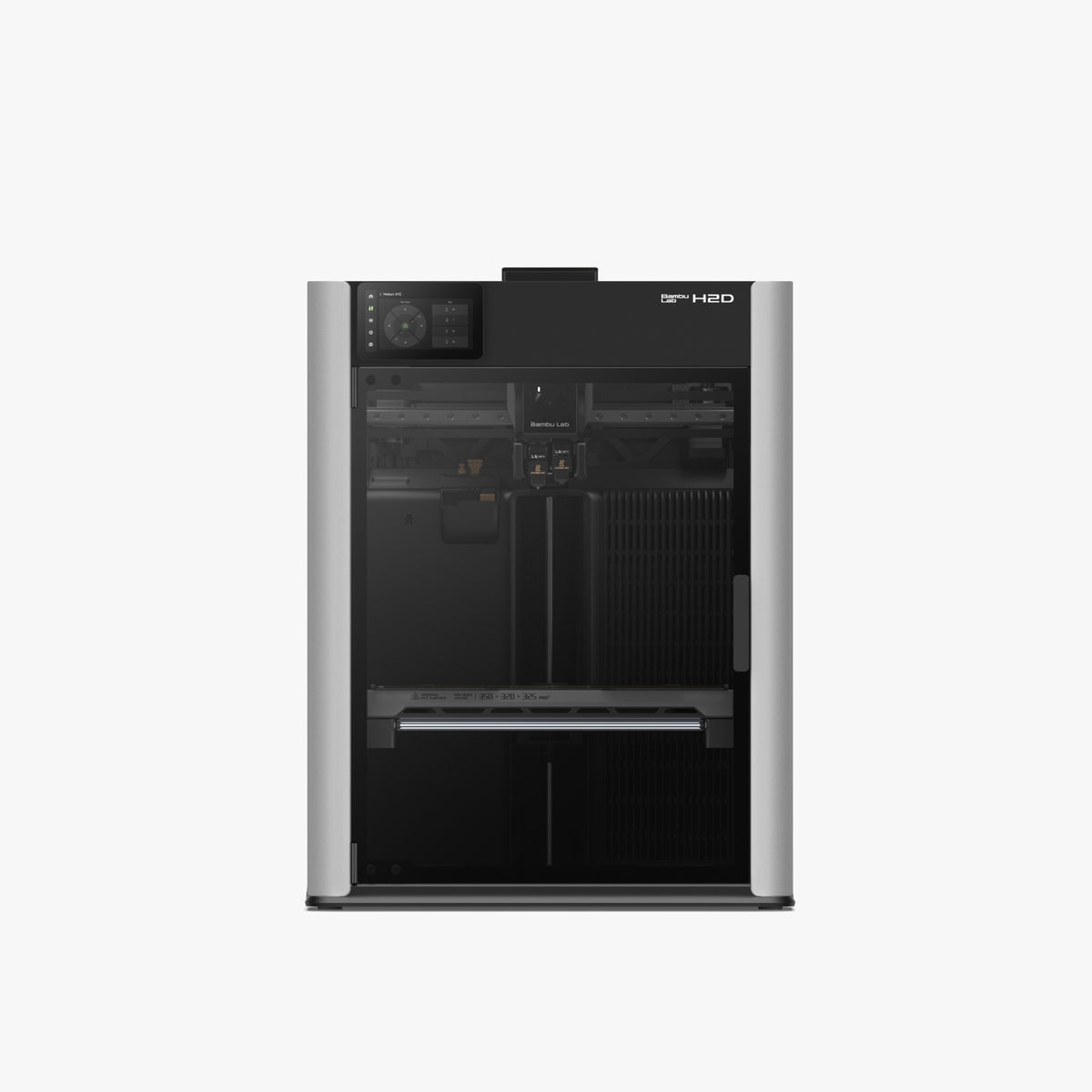

  • Bambu Lab H2D 4
  • Bambu Lab H2D 5
  • Bambu Lab H2D 6

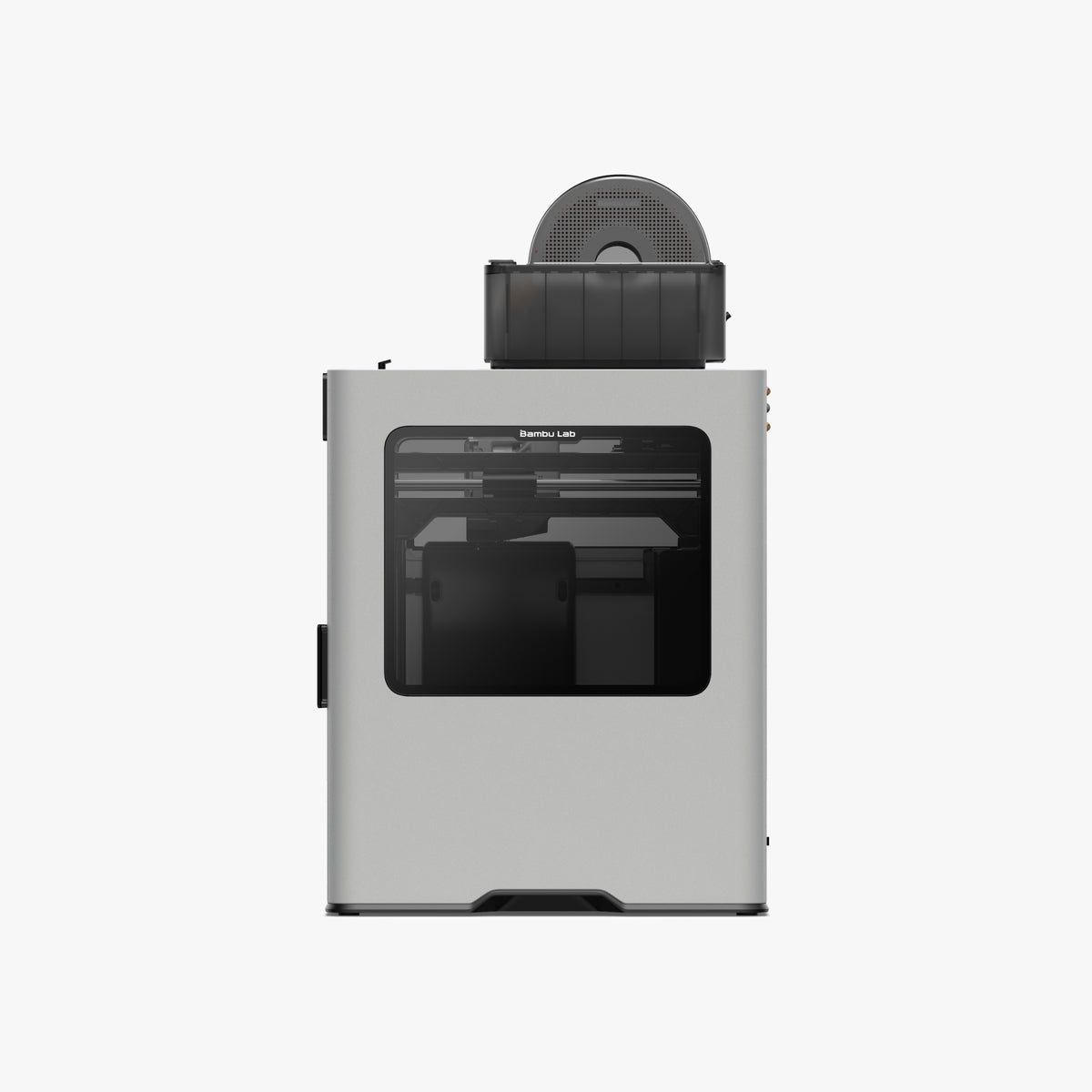

  • Bambu Lab H2D 7
  • Bambu Lab H2D 8
  • Bambu Lab H2D 9
Bambu Lab H2D Combo 1
Bambu Lab H2D 2

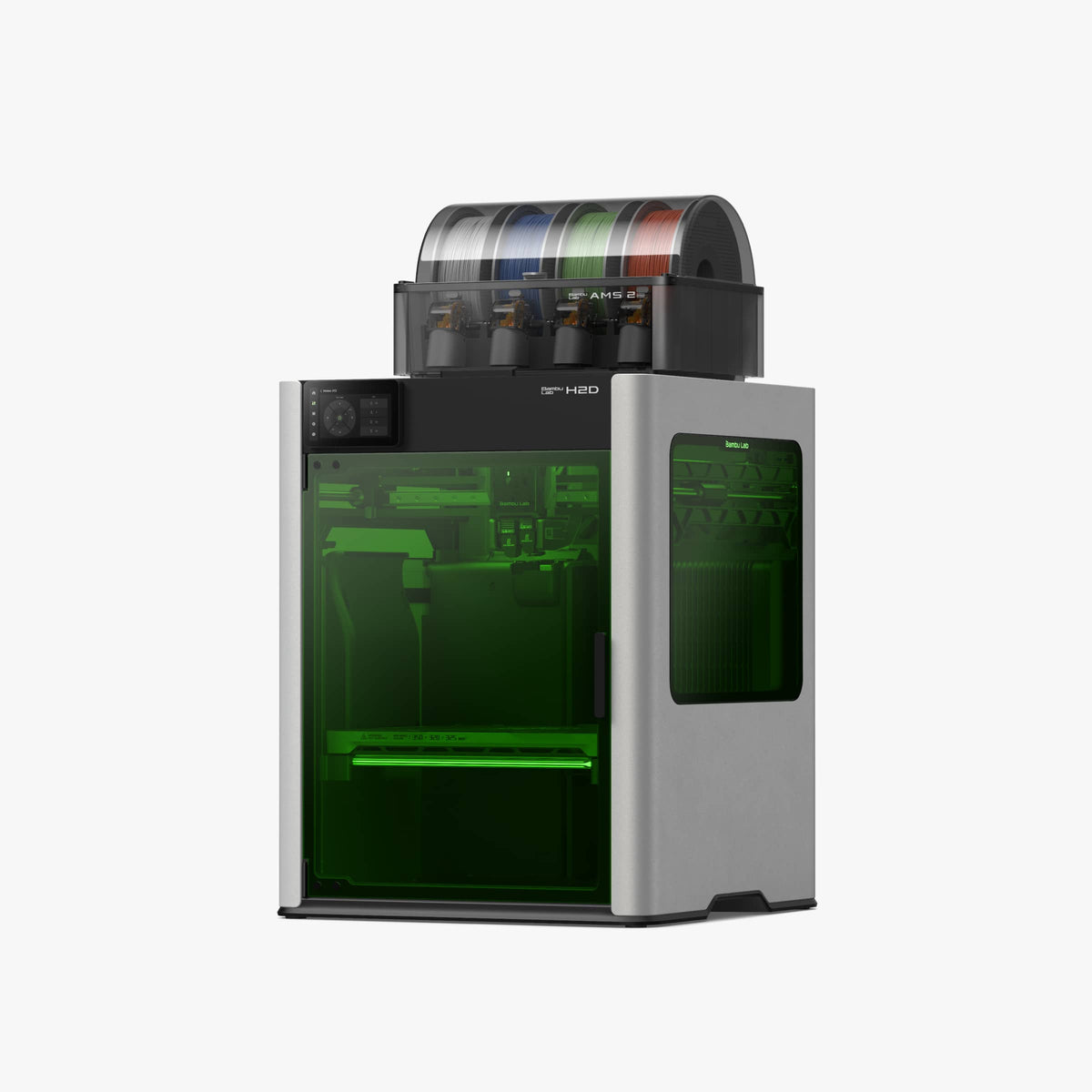

Bambu Lab H2D Combo 3
Bambu Lab H2D 4
Bambu Lab H2D 5
Bambu Lab H2D 6
Bambu Lab H2D 7

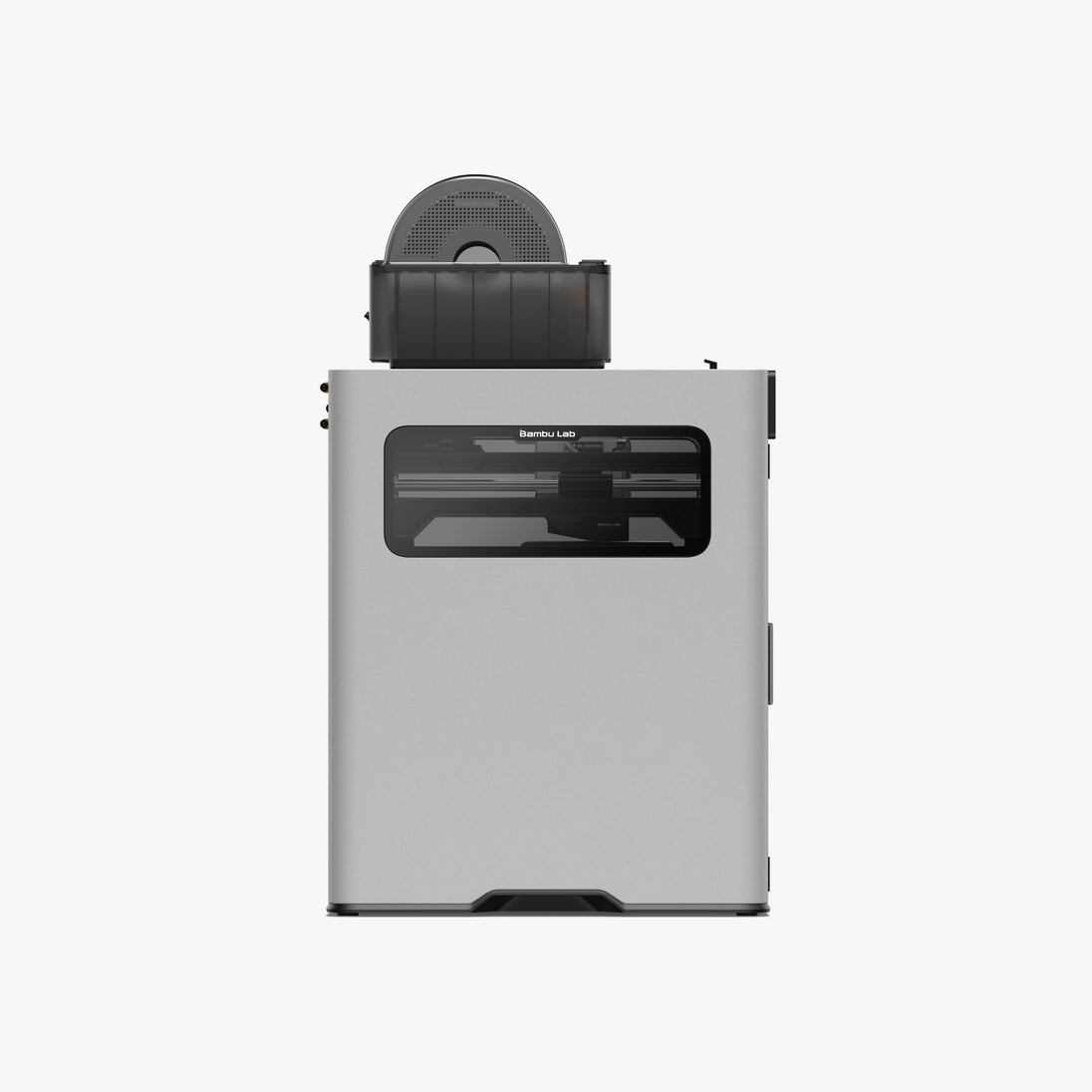

Bambu Lab H2D 8

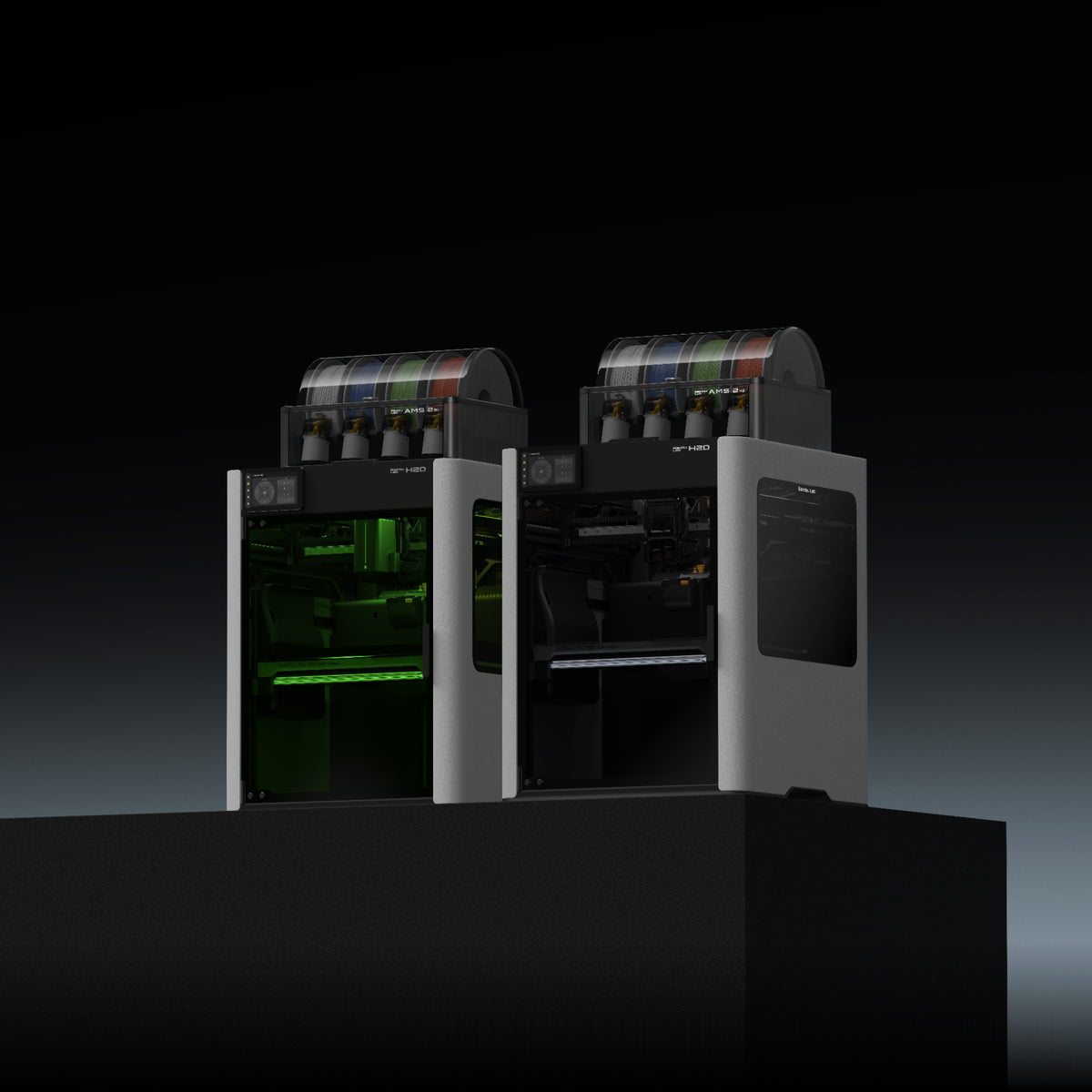

Bambu Lab H2D 9

الخيوط ونماذج العرض الظاهرة في الصور غير مشمولة، إلا إذا ذُكرت صراحةً ضمن محتويات الحزمة المختارة.

ميزات المنتج

  • طباعة ثلاثية الأبعاد متعددة المواد بفوهتين
  • وحدة ليزر اختيارية بقدرة 10 واط أو 40 واط ووحدة قطع
  • حجم طباعة 350 × 320 × 325 مم³
  • معايرة بصرية للحركة بدقة استشعار 5 ميكرومتر
  • وحدة بثق مؤازرة بتحكم مغلق الحلقة
  • فوهة بدرجة حرارة تصل إلى 350°م وتسخين نشط للحجرة حتى 65°م

* لتوصيل أكثر من وحدتي AMS (بما في ذلك AMS 2 Pro وAMS HT)، يلزم محوّل PTFE ‏4 في 1 (FAZ013-N).

* متوافق في مجال الأمن السيبراني مع المادة 3.3(d)(e) من توجيه الاتحاد الأوروبي RED ومع المعيار ETSI EN 303 645 V2.1.1:2020.

بامبو لاب H2D

SAR 14,538.90

ميزات المنتج

  • طباعة ثلاثية الأبعاد متعددة المواد بفوهتين
  • وحدة ليزر اختيارية بقدرة 10 واط أو 40 واط ووحدة قطع
  • حجم طباعة 350 × 320 × 325 مم³
  • معايرة بصرية للحركة بدقة استشعار 5 ميكرومتر
  • وحدة بثق مؤازرة بتحكم مغلق الحلقة
  • فوهة بدرجة حرارة تصل إلى 350°م وتسخين نشط للحجرة حتى 65°م

* لتوصيل أكثر من وحدتي AMS (بما في ذلك AMS 2 Pro وAMS HT)، يلزم محوّل PTFE ‏4 في 1 (FAZ013-N).

* متوافق في مجال الأمن السيبراني مع المادة 3.3(d)(e) من توجيه الاتحاد الأوروبي RED ومع المعيار ETSI EN 303 645 V2.1.1:2020.
SAR 14,538.90
طرد:
Bambu Lab H2D Combo 1 Bambu Lab H2D 2 Bambu Lab H2D Combo 3 Bambu Lab H2D 4 Bambu Lab H2D 5 Bambu Lab H2D 6 Bambu Lab H2D 7 Bambu Lab H2D 8 Bambu Lab H2D 9
Bambu Lab H2D Combo 1 Bambu Lab H2D 2 Bambu Lab H2D Combo 3 Bambu Lab H2D 4 Bambu Lab H2D 5 Bambu Lab H2D 6 Bambu Lab H2D 7 Bambu Lab H2D 8 Bambu Lab H2D 9

Bambu Lab H2D

Rethink

Personal Manufacturing

Explore Dual-Nozzle Capabilities

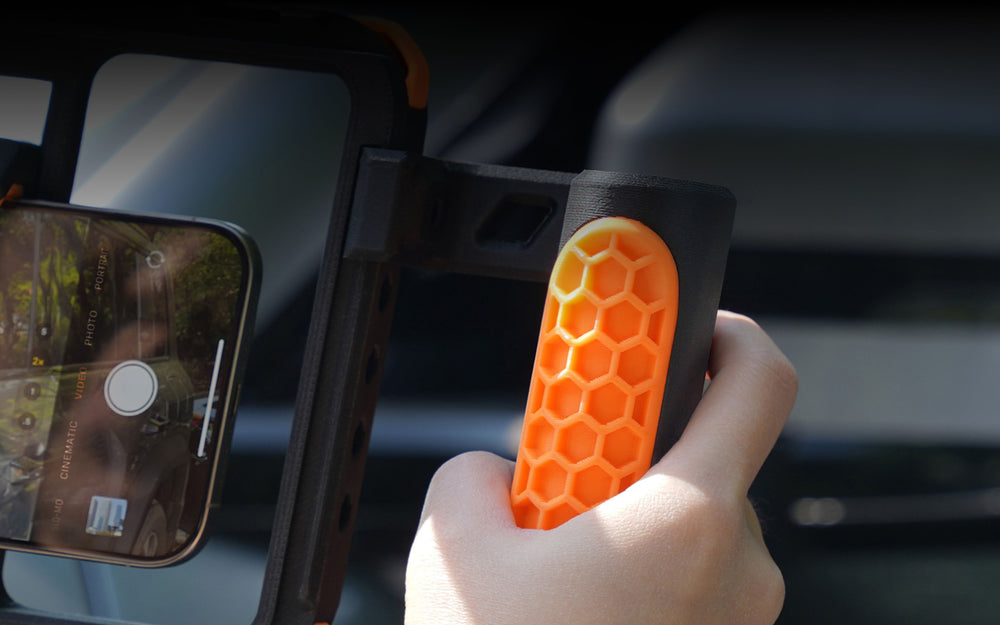

Multi-material Printing H2D multi-material printing

Multi-material Printing

Flexible and rigid, low cost and exotic materials in one print

Dedicated Support Material H2D dedicated support material

Dedicated Support Material

Perfect supports with minimal waste, purging and reloading

Efficient Multi-color Printing H2D efficient multi-color printing

Efficient Multi-color Printing

Fast and efficient multi-color printing

Multi-material Printing

Flexible and rigid, low cost and exotic materials in one print

Combine flexible and rigid materials in a single print to create impressive interlocking structures and innovative designs beyond traditional manufacturing. Pairing high-performance materials with standard ones further reduces costs and boosts material efficiency by using premium materials only where necessary.

Multi-material Printing
MOCA Pro by @thrutheframe

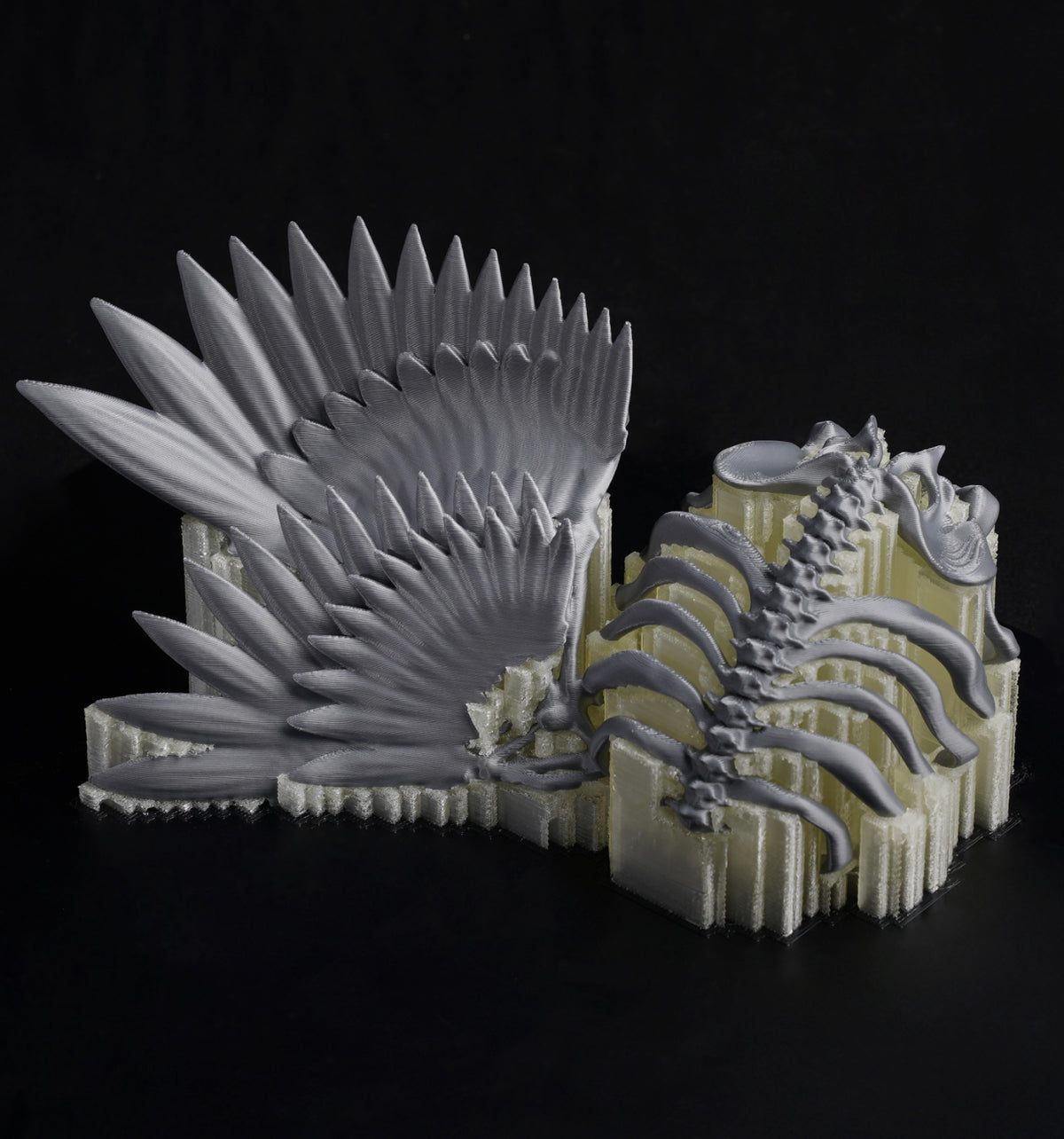

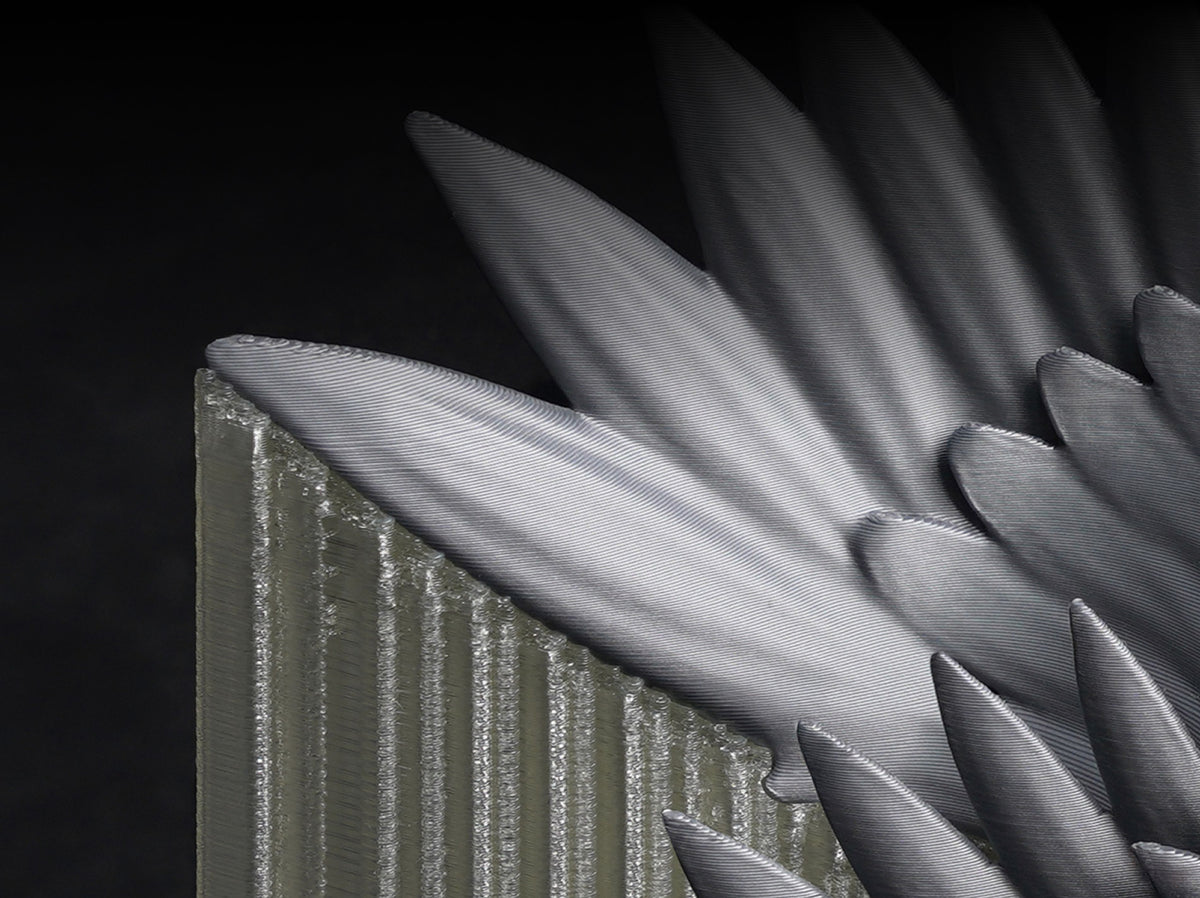

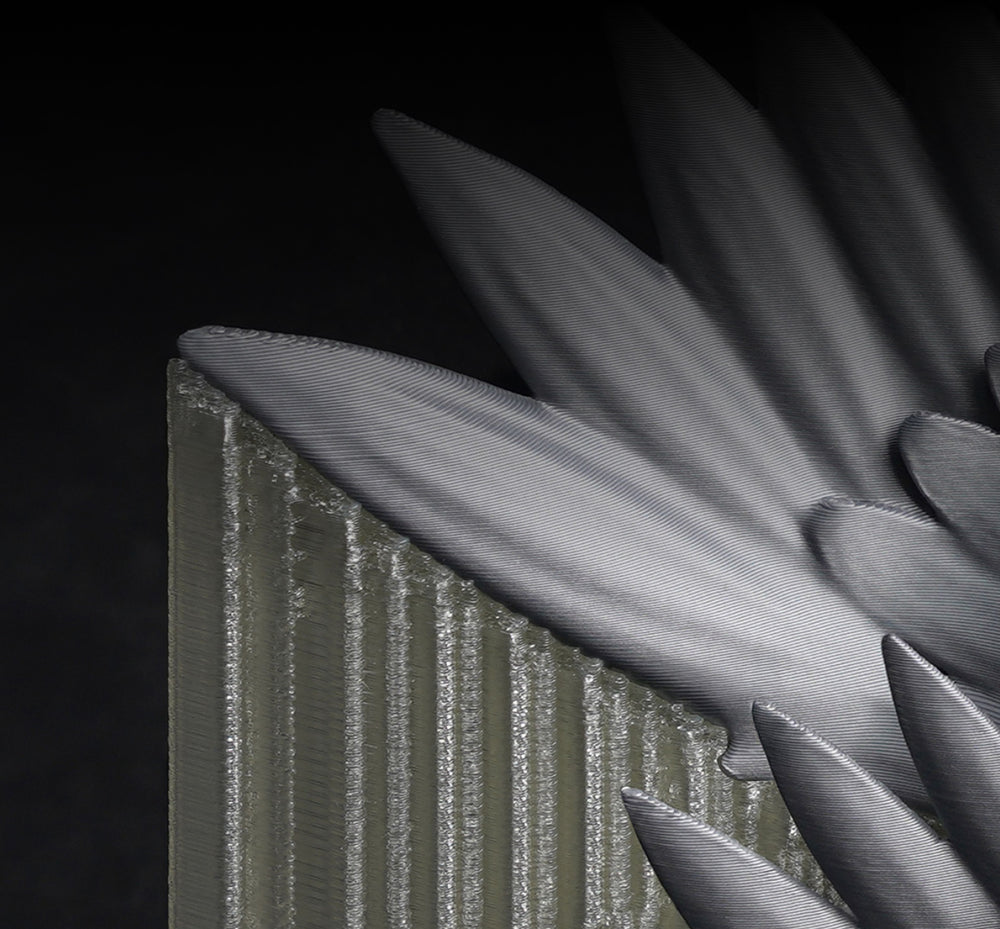

Dedicated Support Material

Perfect supports with minimal waste, purging and reloading

Print with support is no longer a headache. With H2D’s dual-nozzle setup, one nozzle can be reserved for dedicated support material, allowing secured print and perfect support interface.

Dedicated Support Material
AirPods Max Case by @设计发射塔

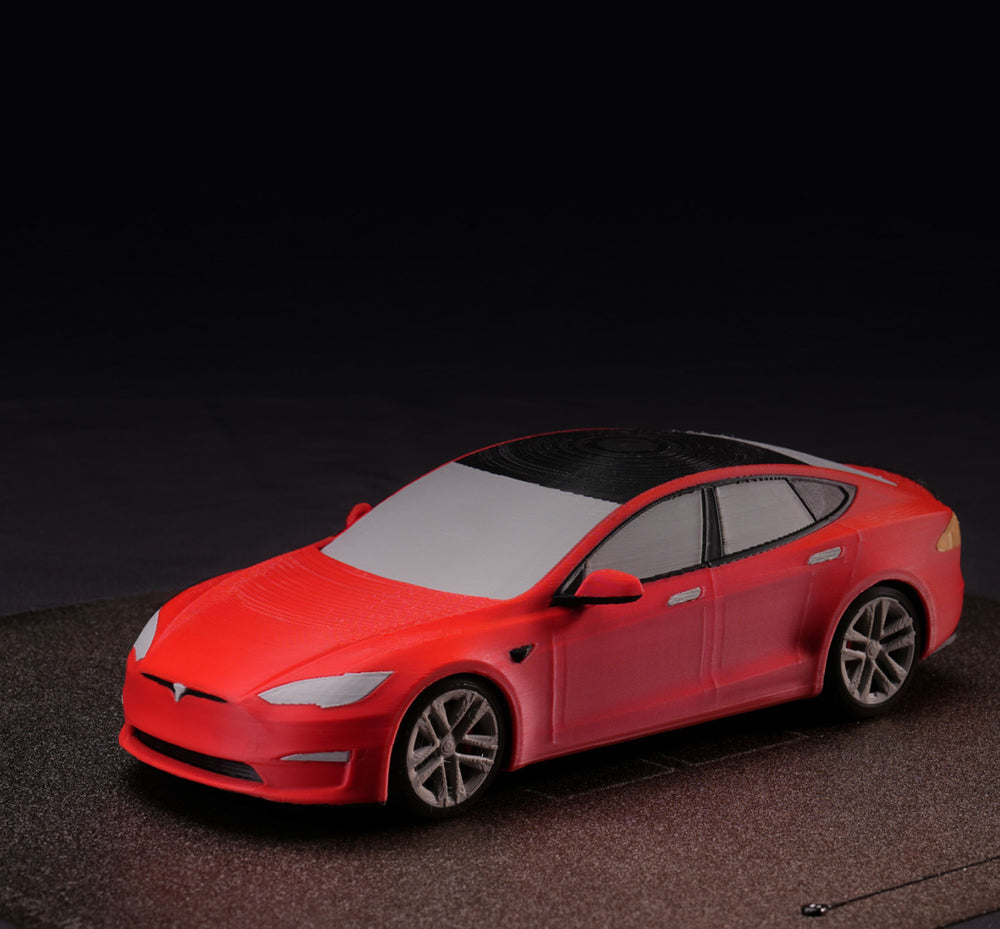

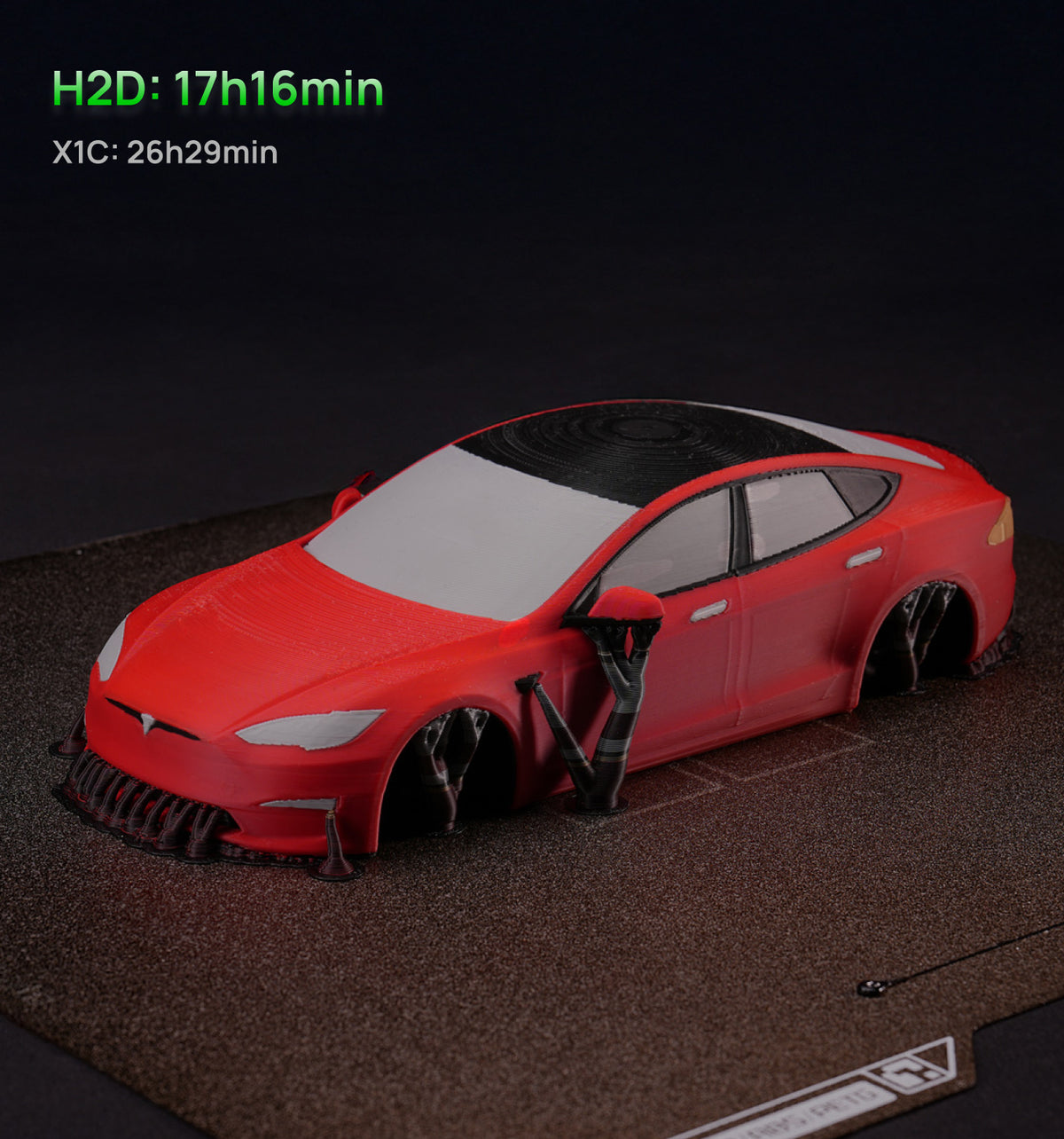

Efficient Multi-color Printing

Fast and efficient multi-color printing

Dual-nozzle printing reduces purge cycles in multi-color prints. H2D's smart algorithms optimize filament use, maximizing dual-nozzle efficiency to save time and materials.

Efficient Multi-color Printing
Tesla Model S Plaid by @Mr.Rod

All-in-one Solution For Personal Manufacturing

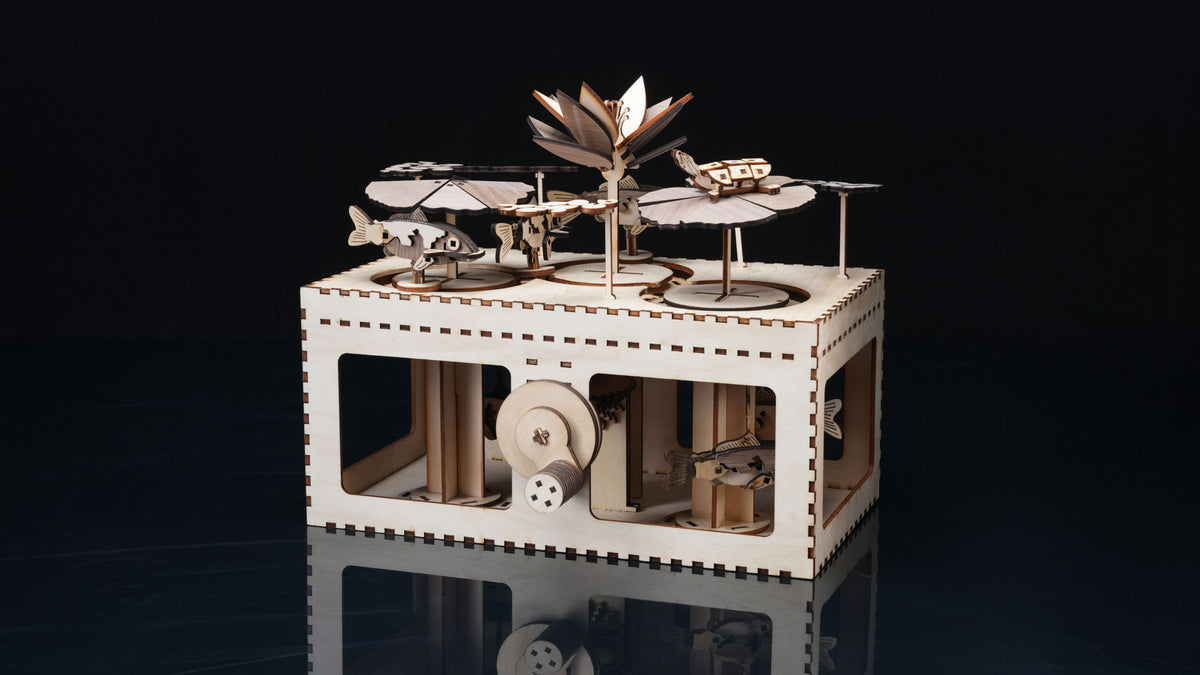

Laser

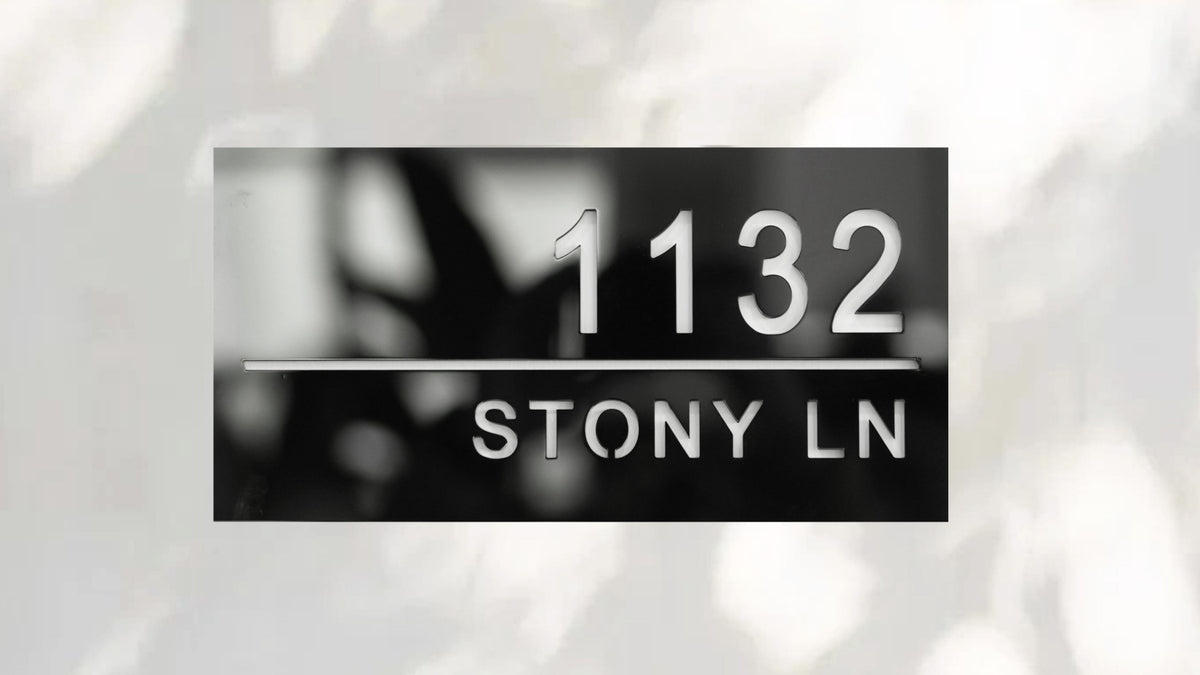

10W and 40W 455nm Laser for engraving & cutting

Laser Engraving & Cutting 1
Laser Engraving & Cutting 2

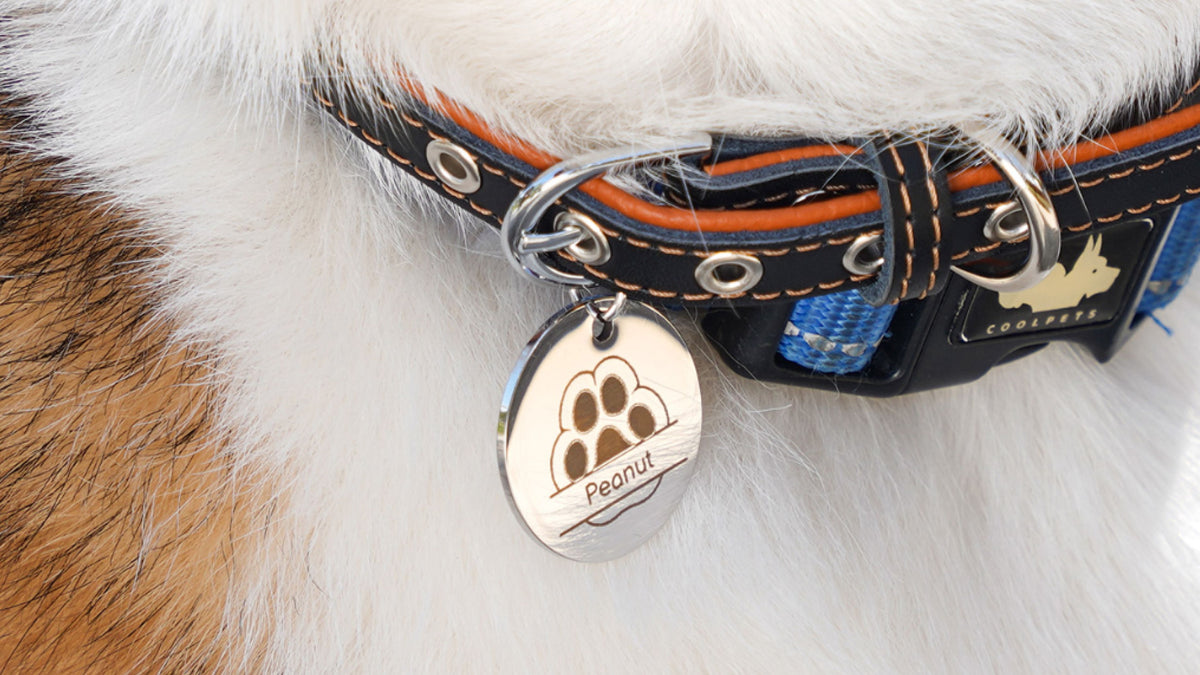

Laser Engraving & Cutting 3

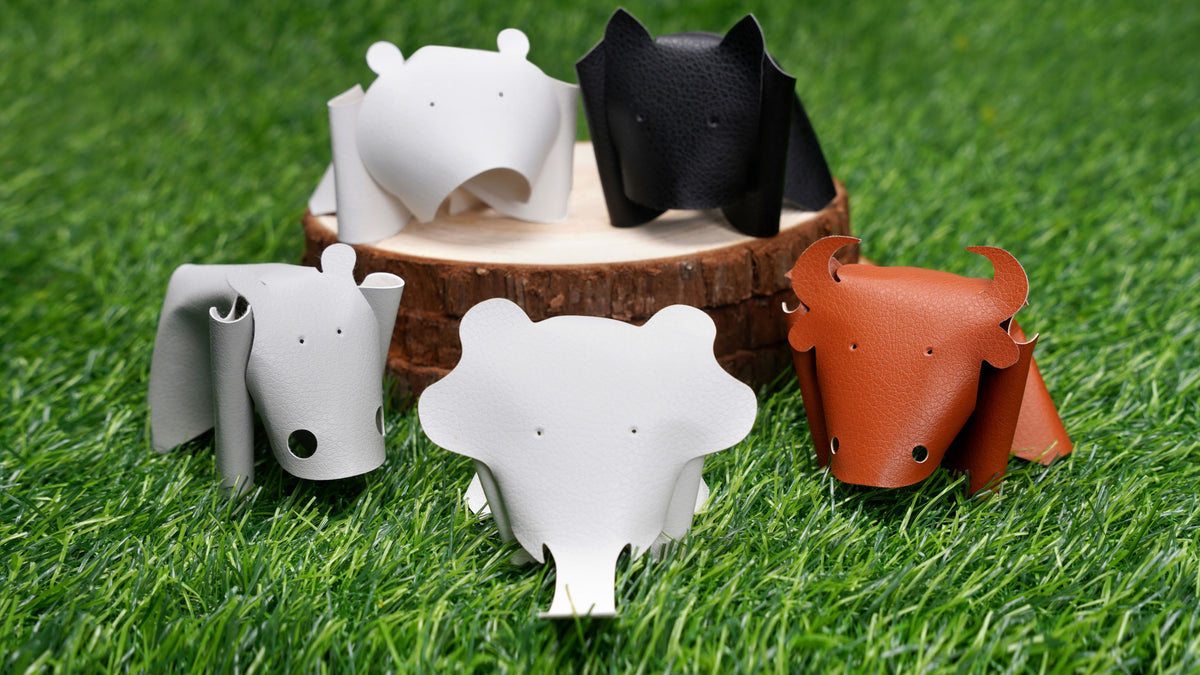

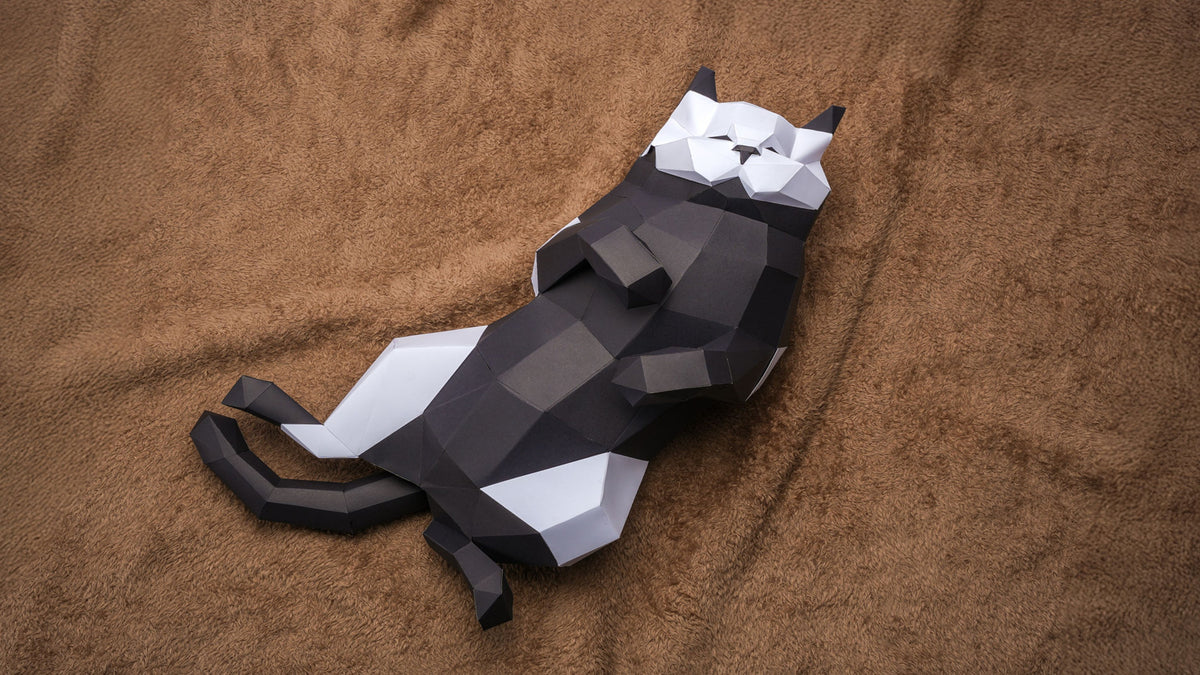

Digital Cutting

Precise cutting on a variety of materials

Digital Cutting 1
Digital Cutting 2
Digital Cutting 3
Digital Cutting 4

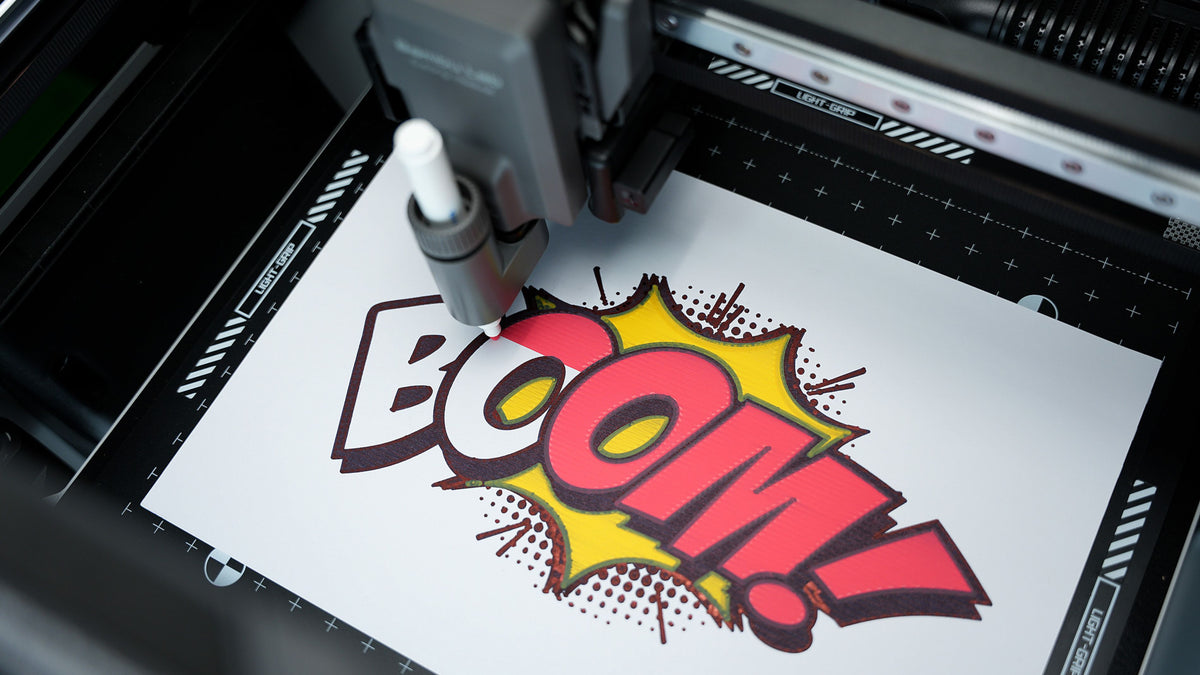

Pen Drawing

Drawing and writing

Pen Drawing 1
Pen Drawing 2

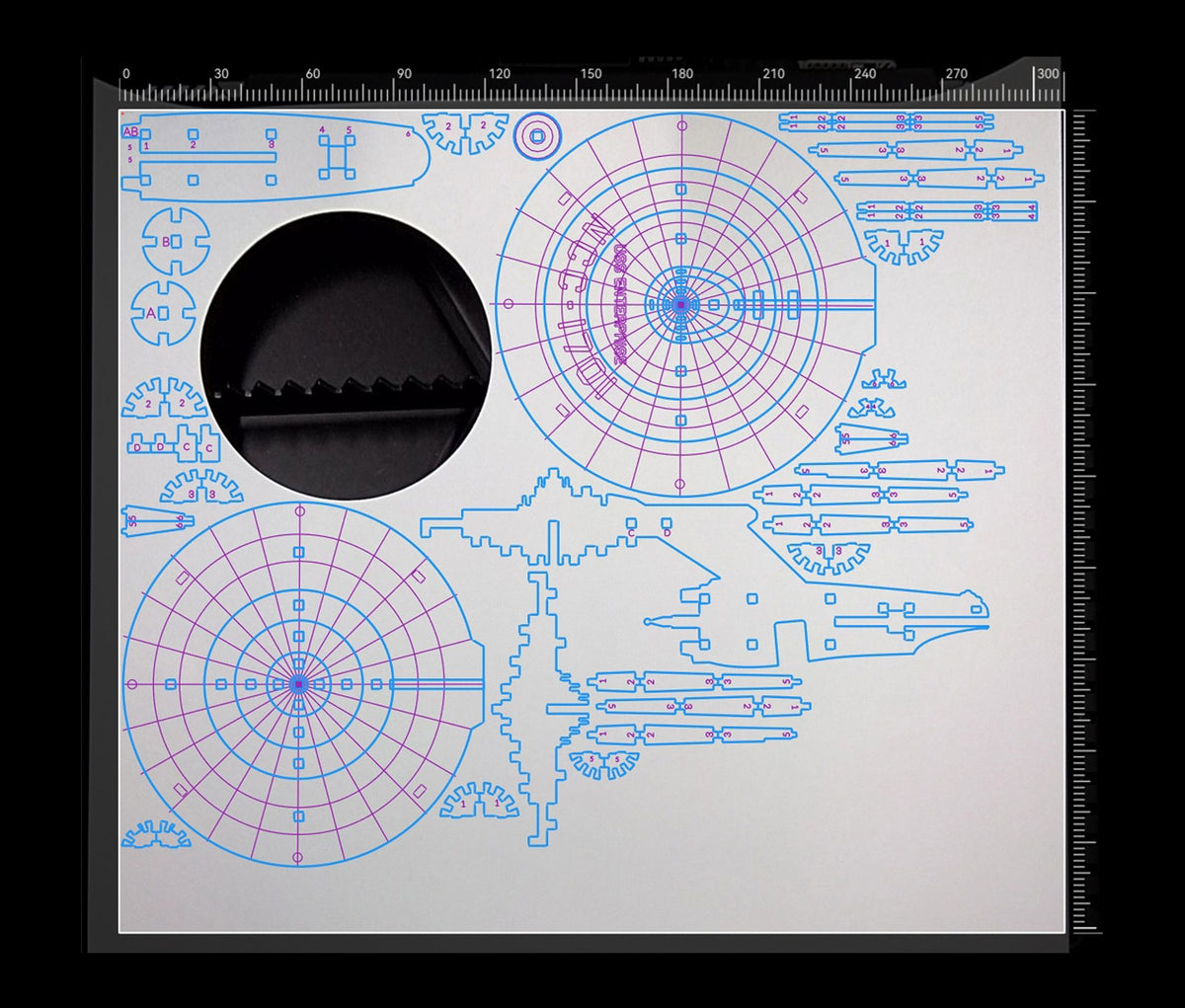

Live Spatial Alignment

What-You-See-Is-What-You-Get

The H2D’s BirdsEye camera, combined with computer vision algorithms, delivers top-view alignment accuracy up to 0.3mm. This advanced spatial alignment allows users to place the tool path at the right position on the material – truly "what-you-see-is-what-you-get."*

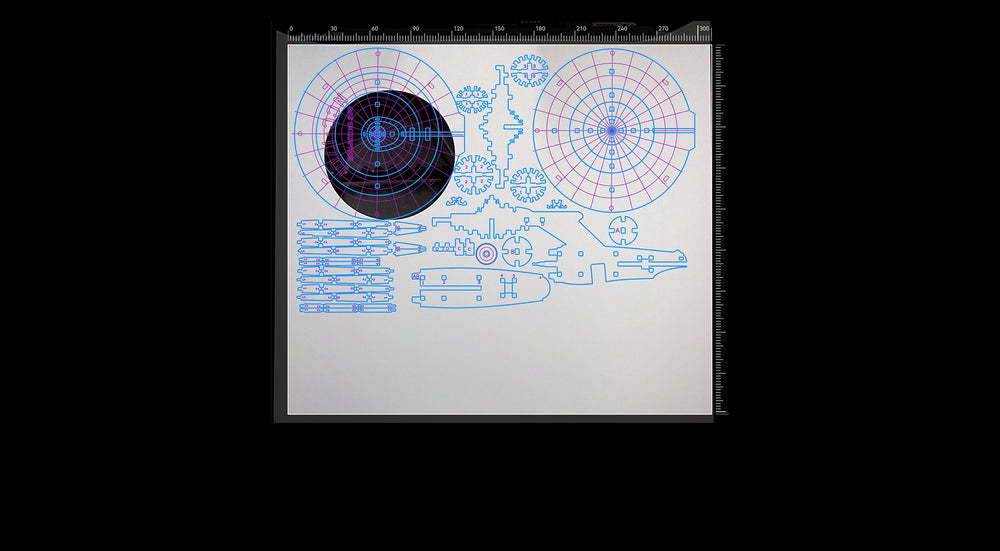

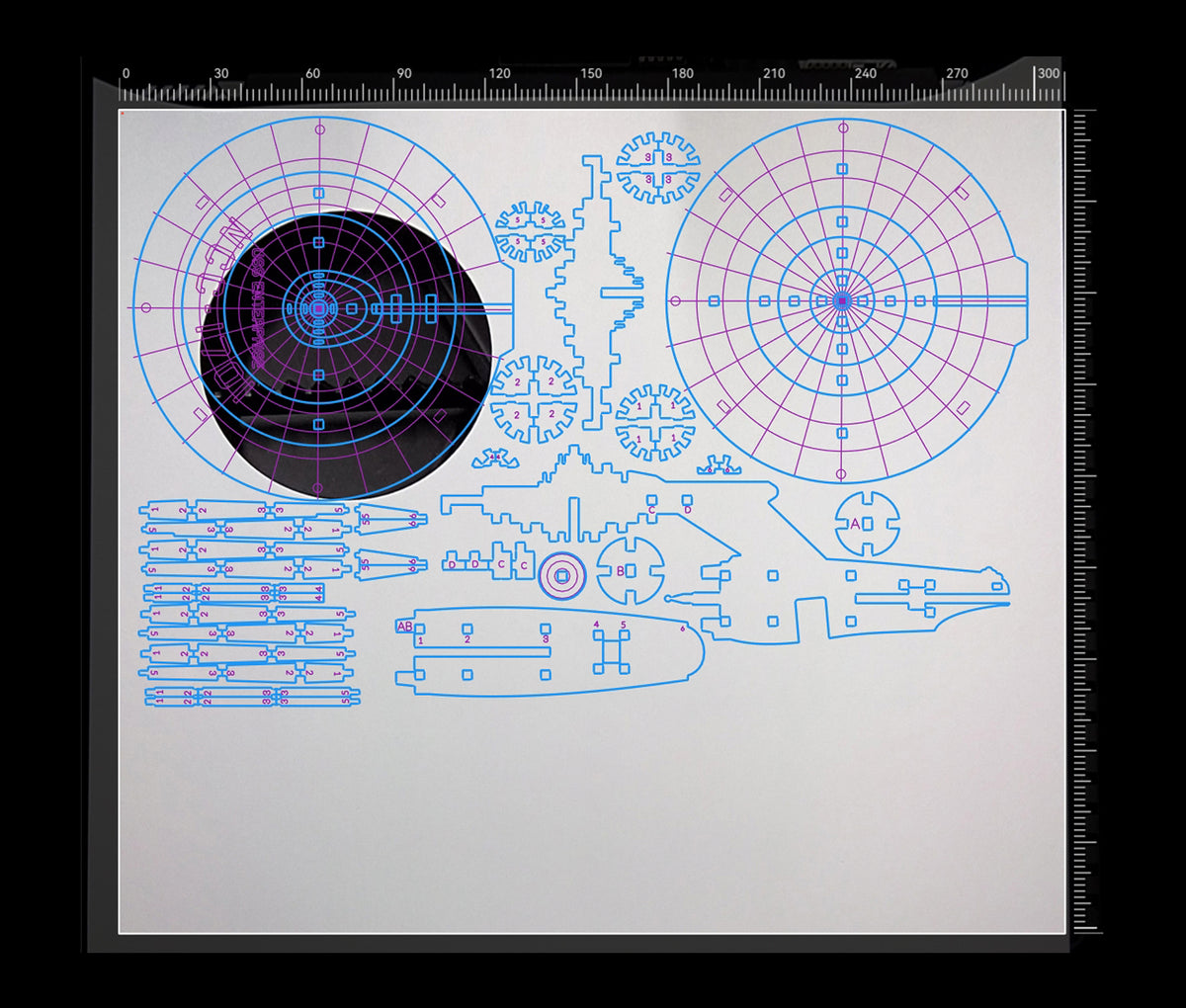

Before Before

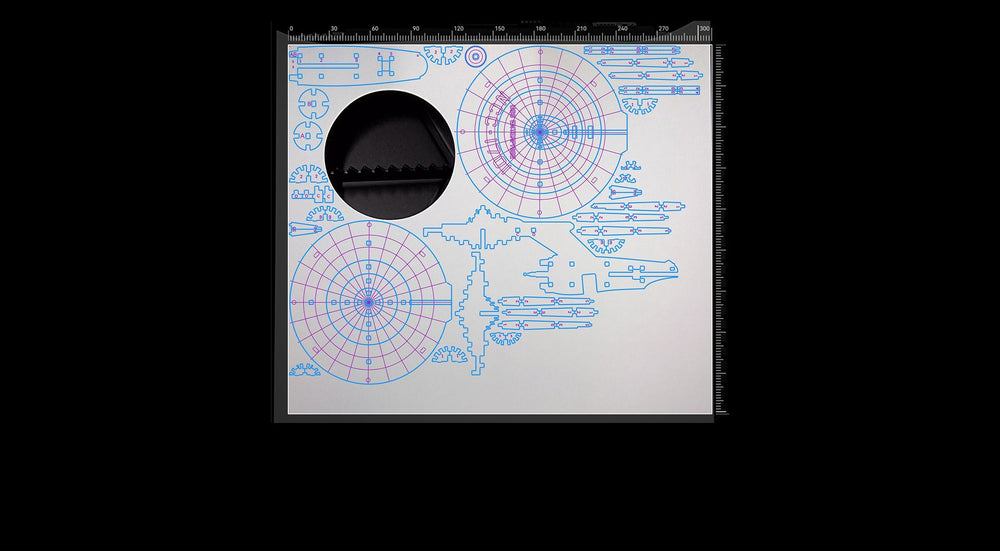

Auto Arrangement

Maximize material efficiency, minimize waste

Leveraging real-time images from the BirdsEye camera, Bambu Suite can automatically arrange your project according to the shape of your material, i.e left over plywood from the previous project. This feature helps you to get the most out of every material.

Don’t Worry About Safety – We’ve Got You Covered

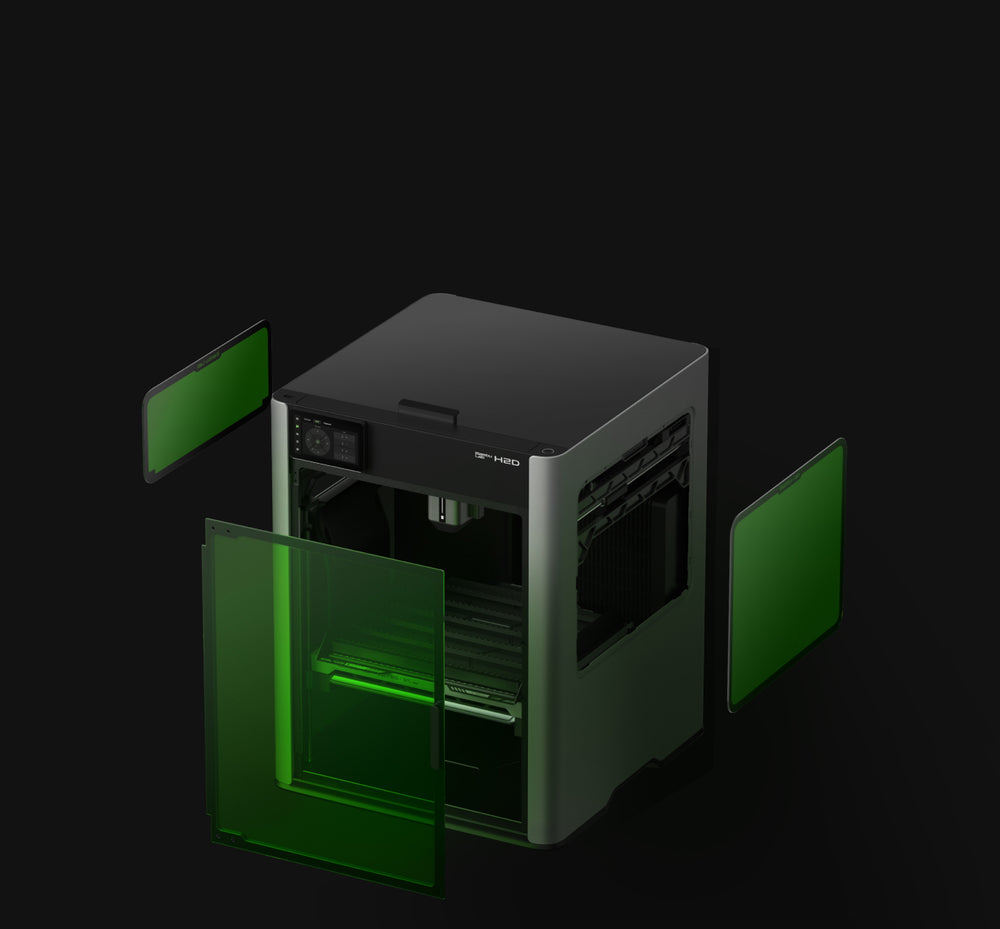

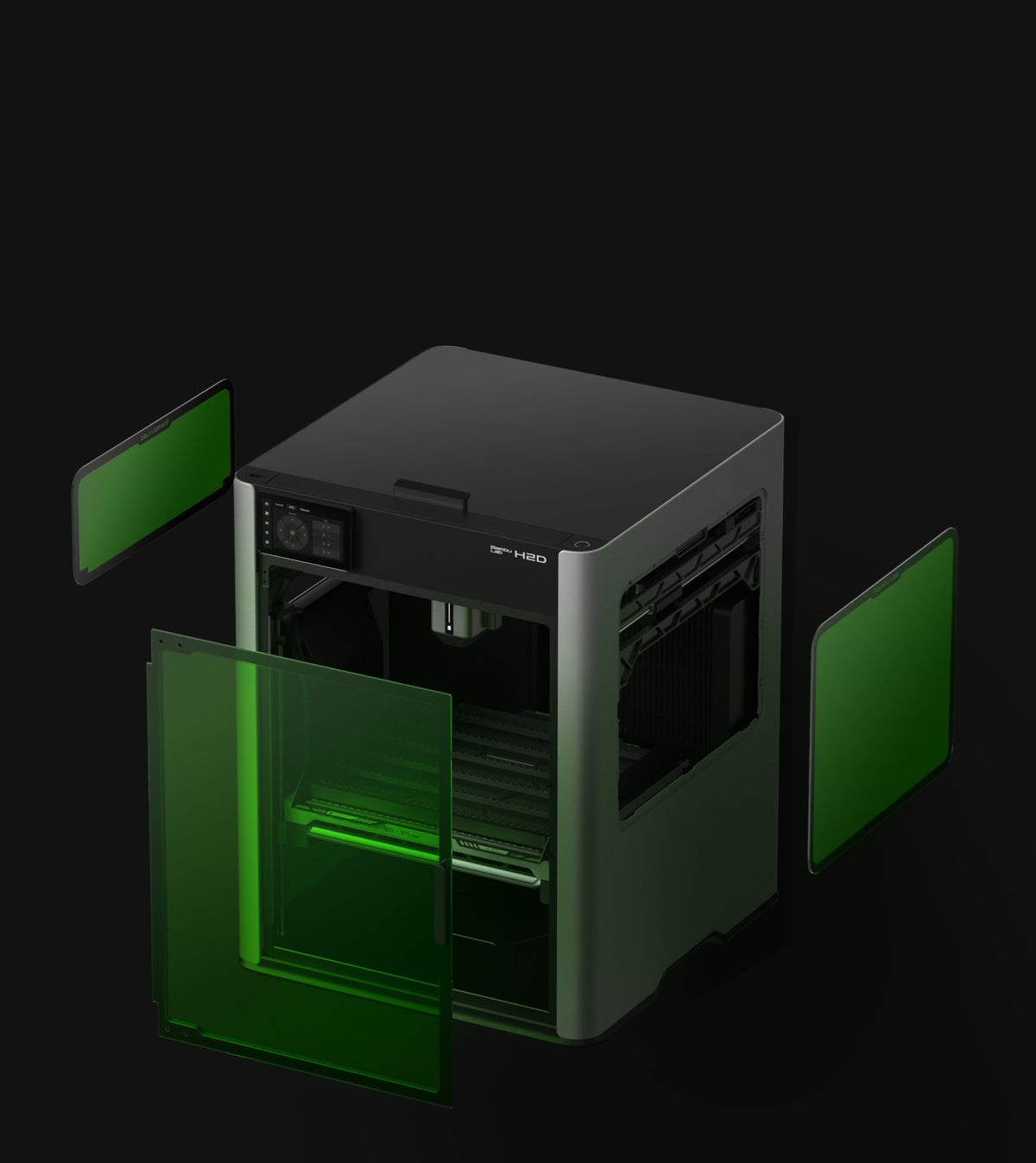

Laser Safety Windows H2D safety-windows-mo

Laser Safety Windows

Operate and monitor laser projects safely without goggles through laser-protective windows.

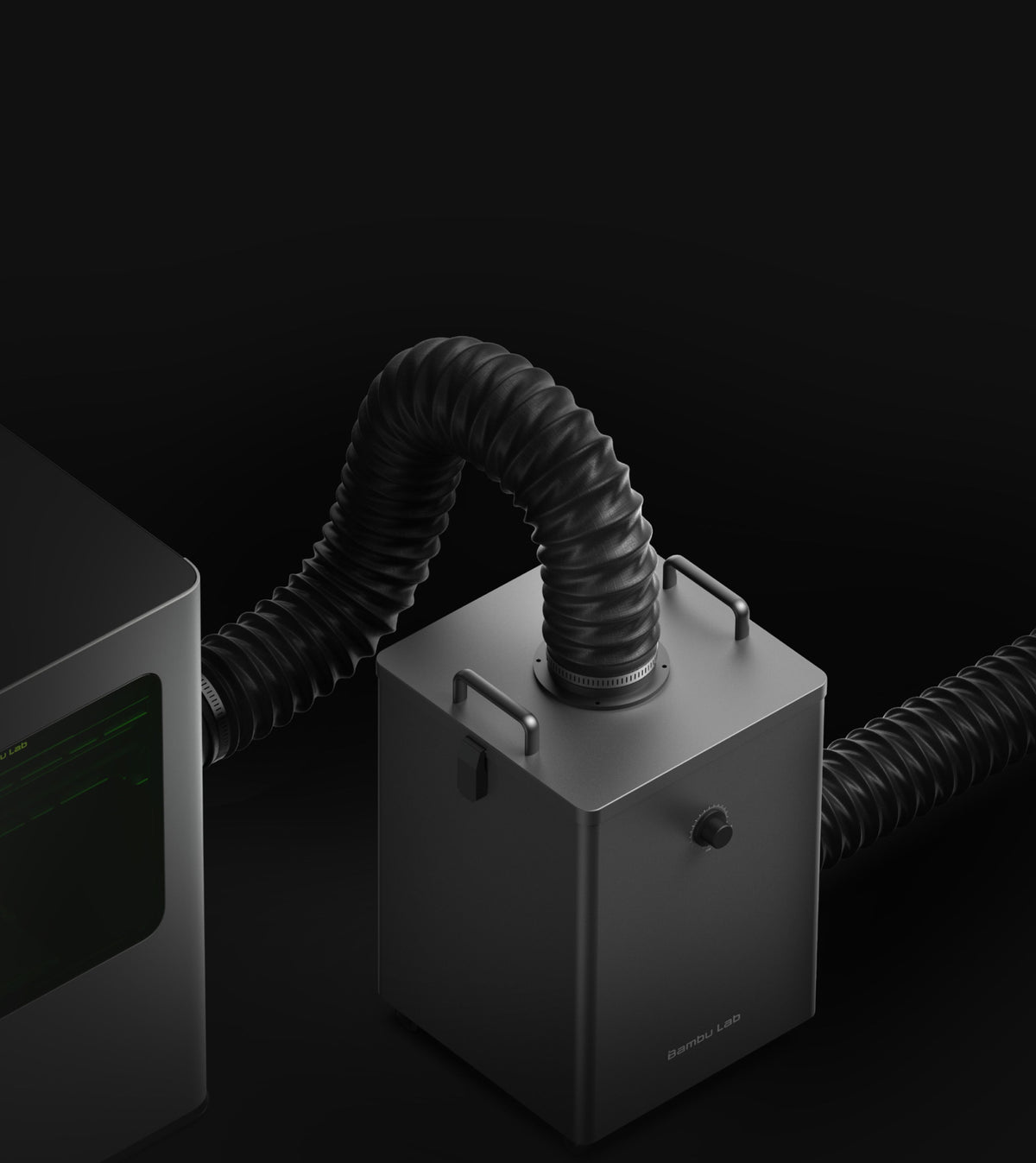

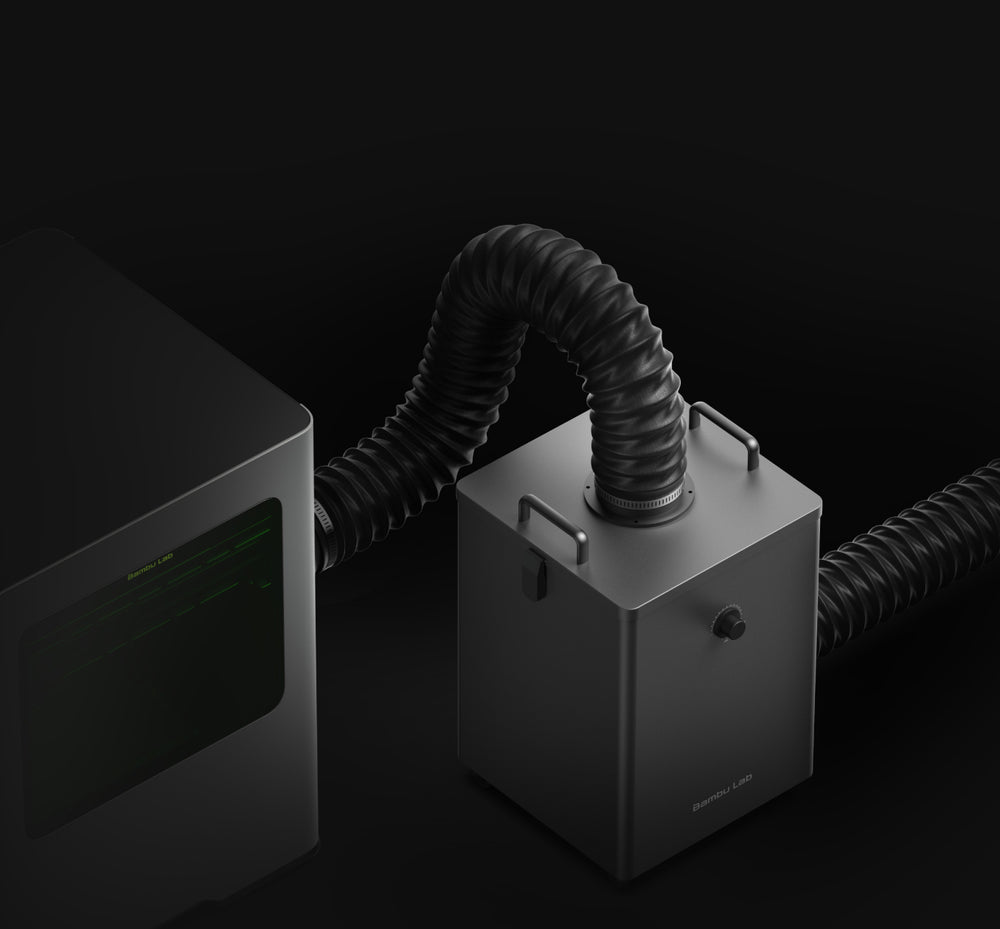

Air Purifier H2D air-purifier-mo

Air Purifier

An optional air purifier helps keep indoor air clean during laser operation.

Don’t Worry About the Settings – We’ve Got It Covered

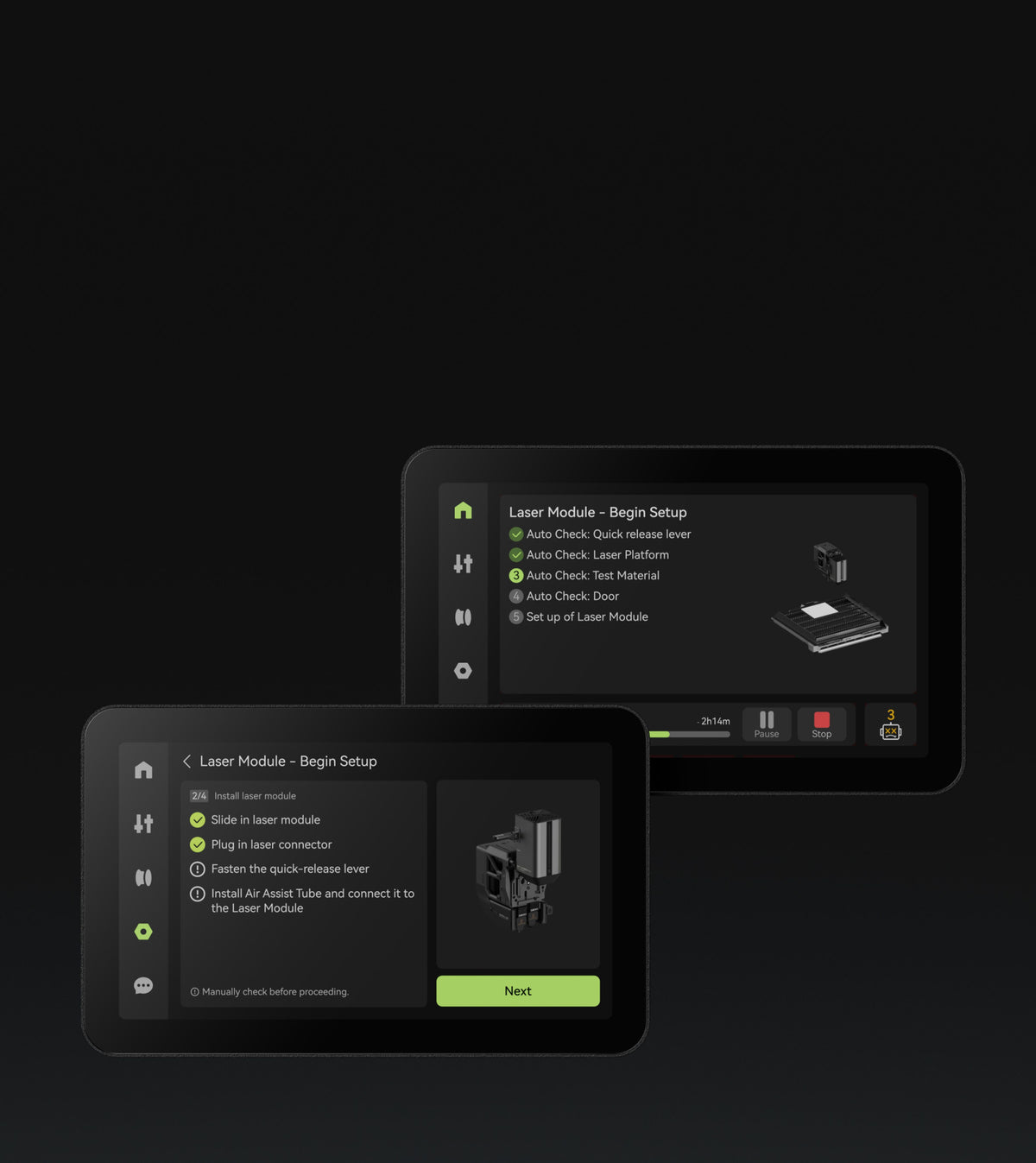

Full-auto Calibration

Full-auto Calibration

A single tap verifies laser focus and measures material automatically.

Material CodeSync

Material CodeSync

H2D scans official material QR codes and loads matching presets.

A Serious Laser Machine

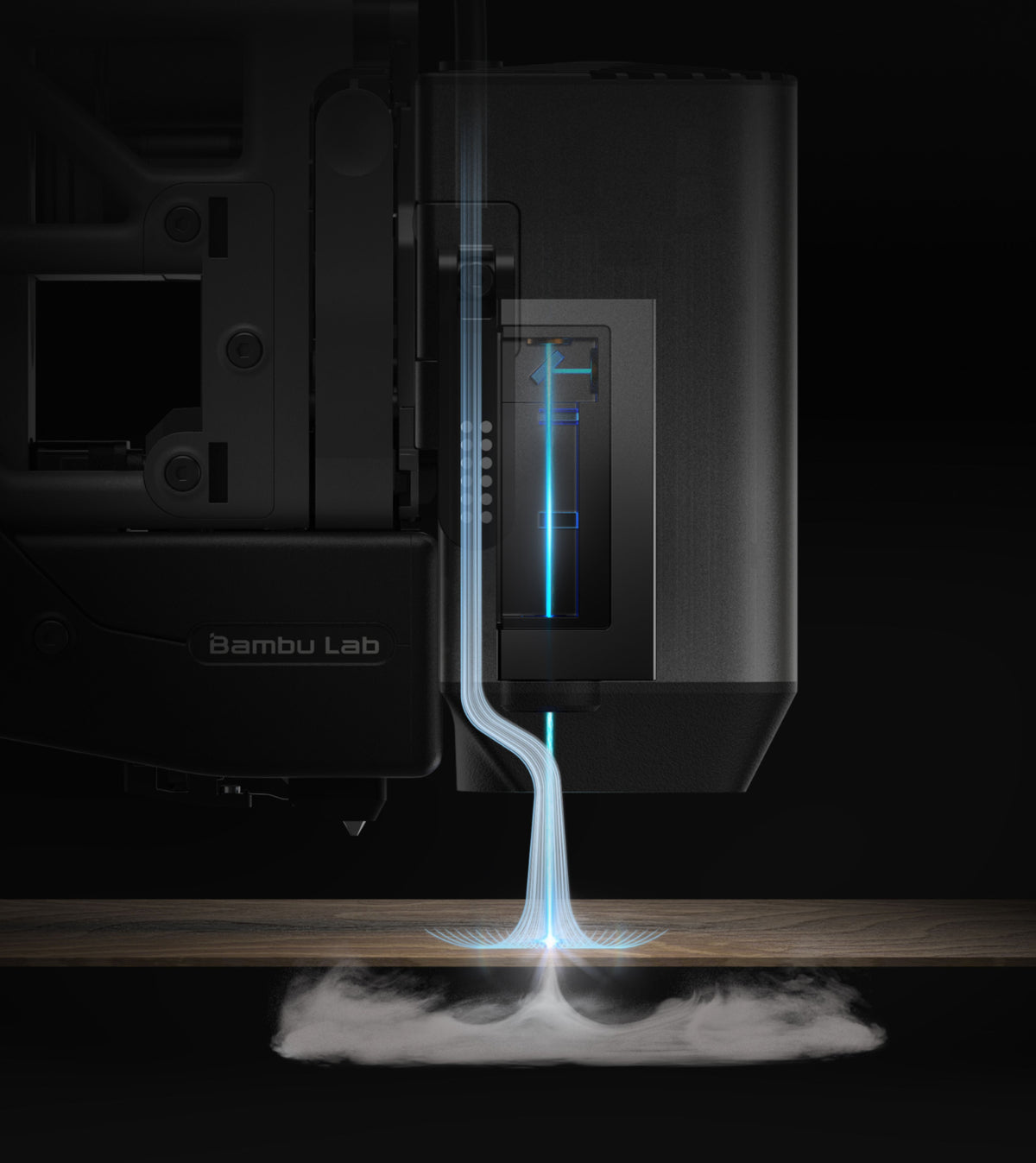

Air Assist

Air Assist

High-speed air cools the laser path for cleaner, more precise results.

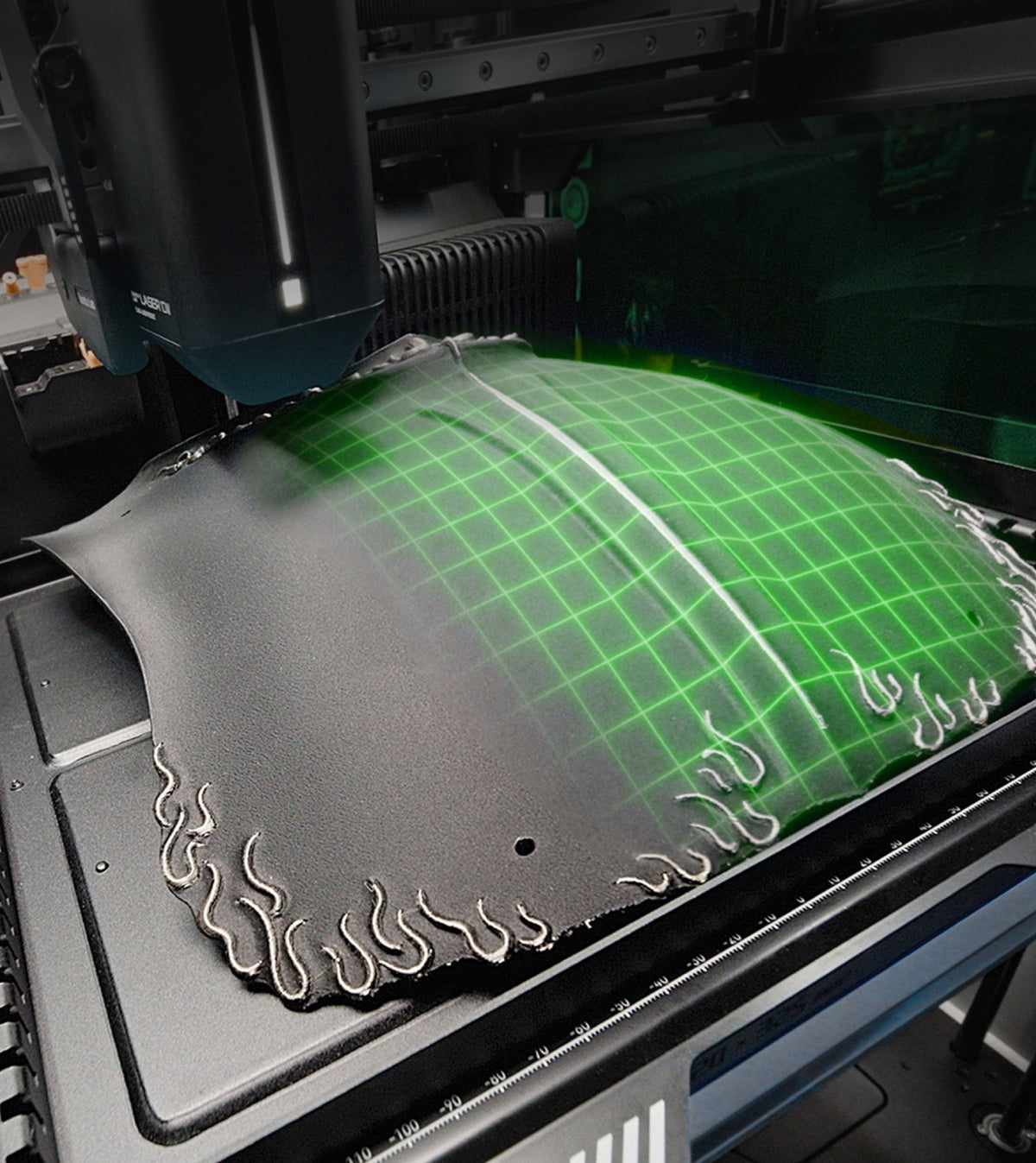

Contact-less 3D Mesh

Contact-less 3D Mesh

Optical height measurement builds a 3D mesh for accurate work on curved surfaces.

Go Big, Go Fast, Go Precise

Our Secret Weapon: Vision Encoder

50µm ultra-fine motion accuracy*

An ultra-accurate vision encoder plate, combined with 5µm resolution optical measurements to track and correct toolhead motion, enables the H2D to achieve consistent and reliable distance-independent 50μm motion accuracy across the entire workspace, one order of magnitude better than its predecessor. (*Vision Encoder sold separately)

Max Max

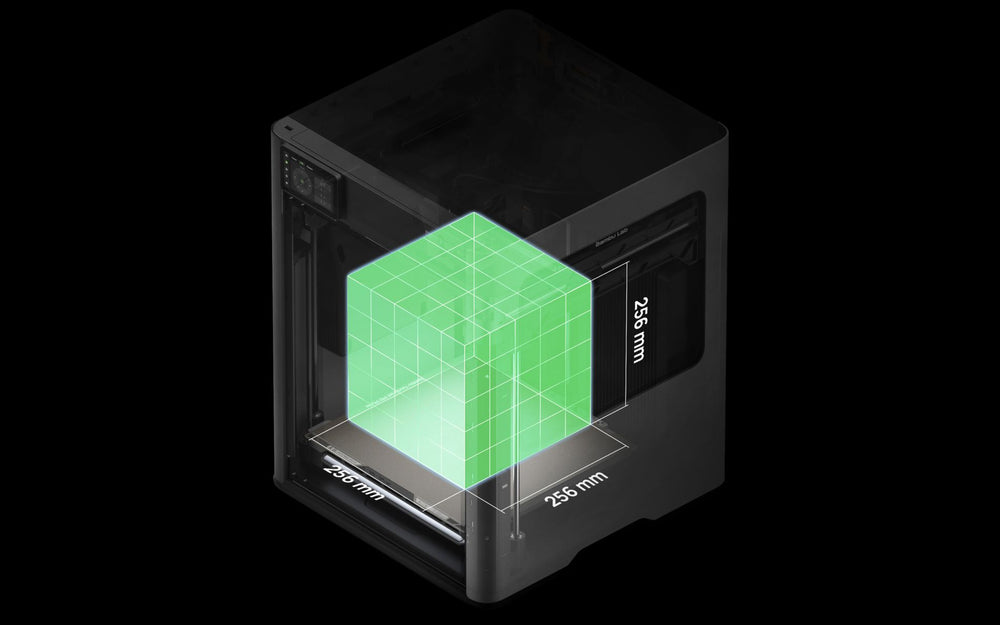

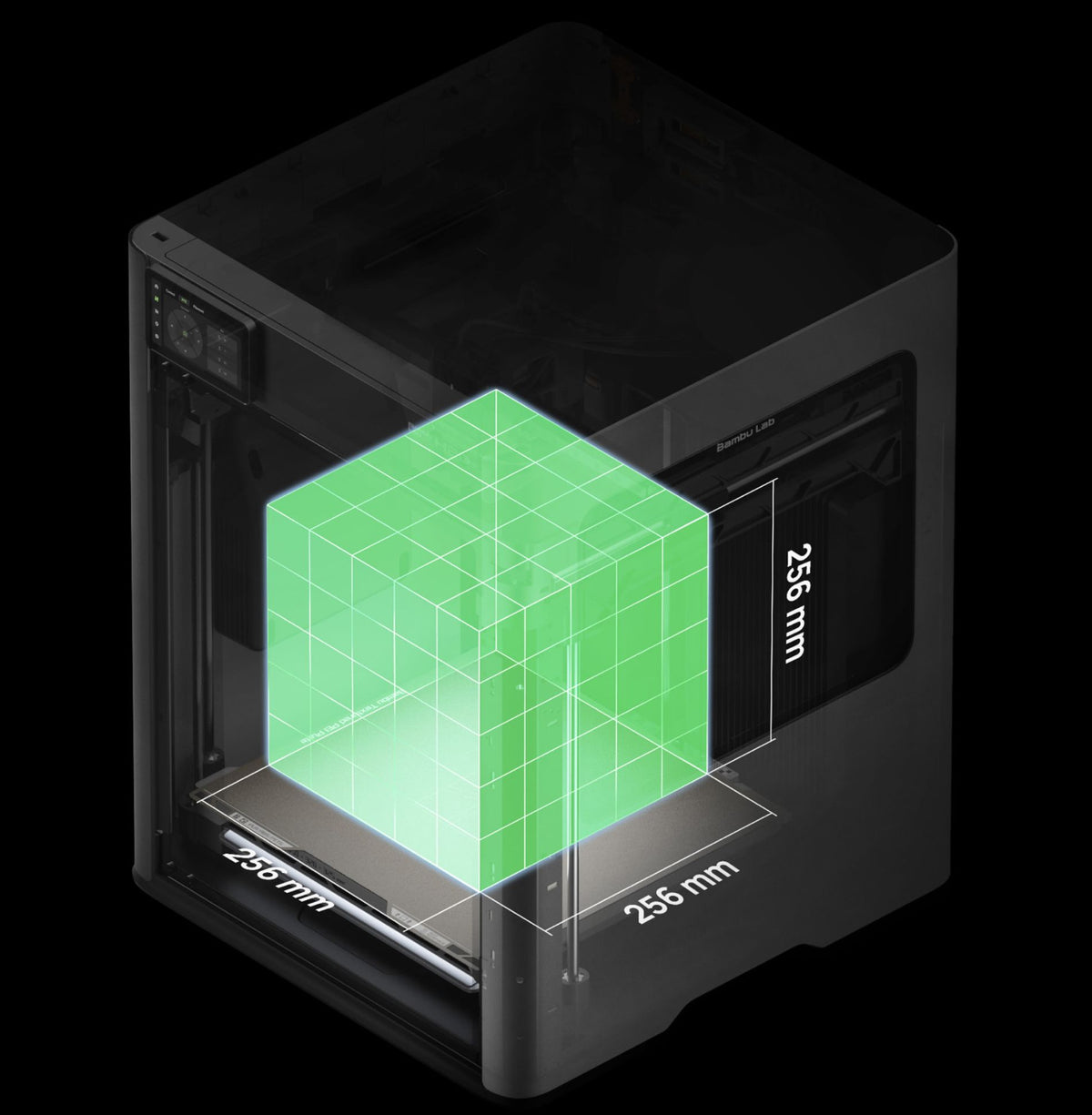

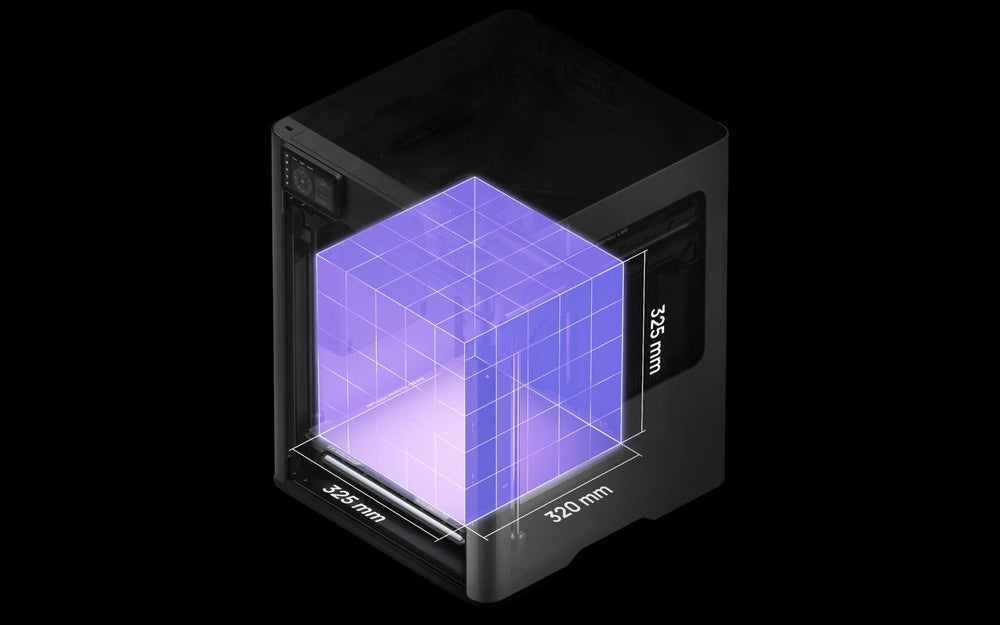

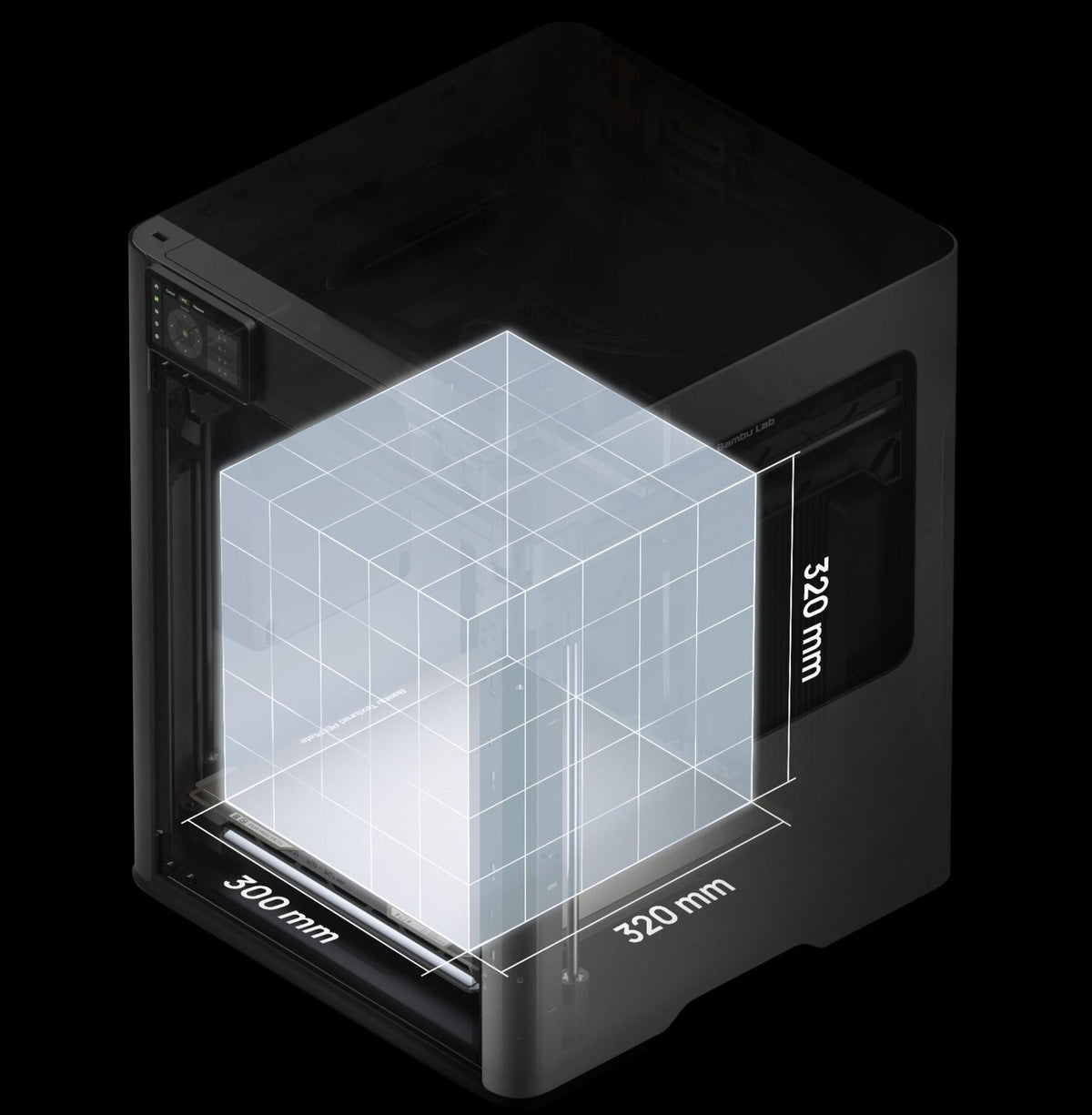

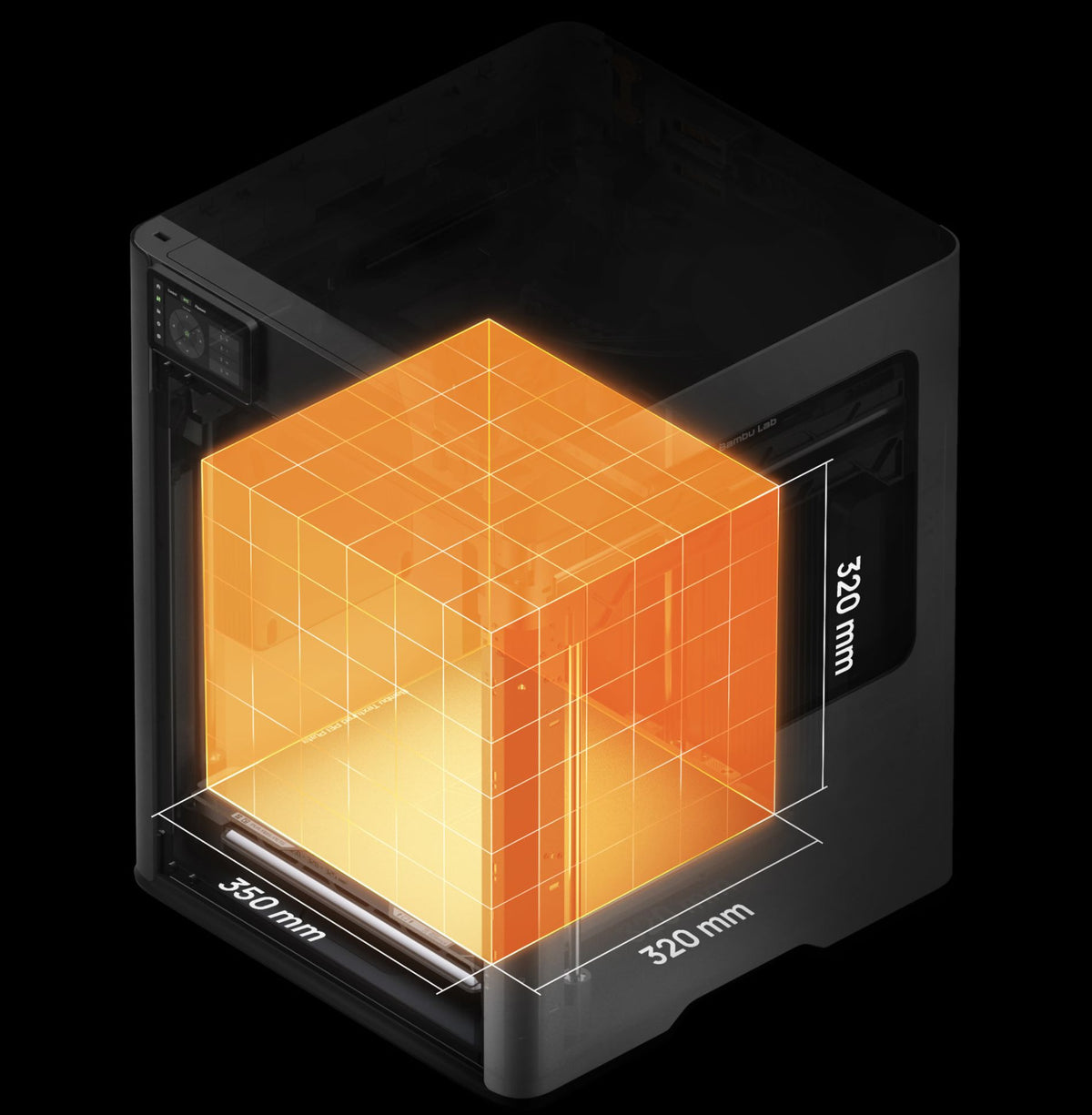

King-size Work Zone

Break free from size constraints

With a print volume up to 350mm×320mm×325mm*, creating large-scale projects has never been easier! From laser engraving on sizable objects to printing oversized models, the expanded capacity empowers you to bring even your most ambitious ideas to life.

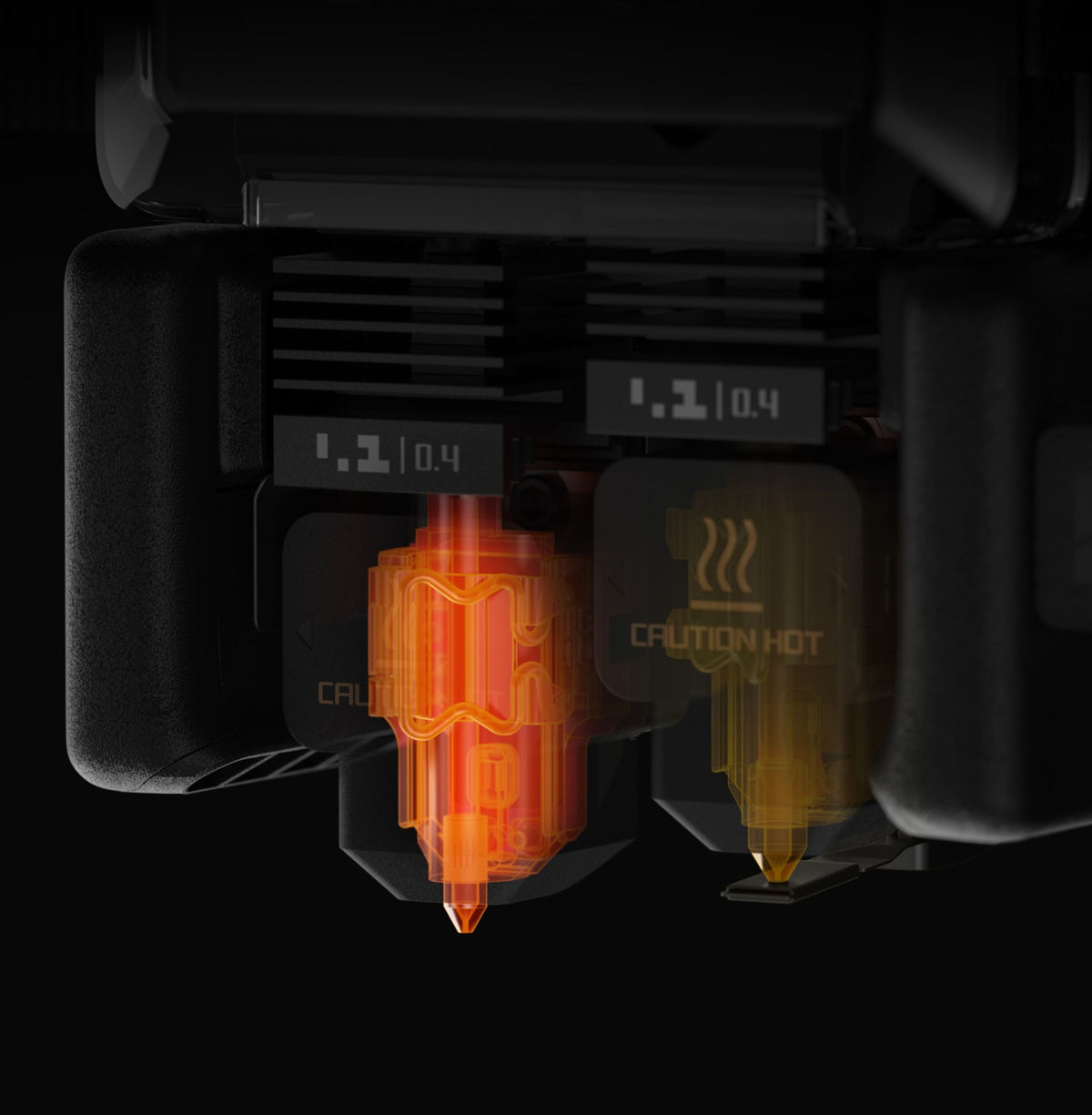

High-temp Hotend High-temp Hotend

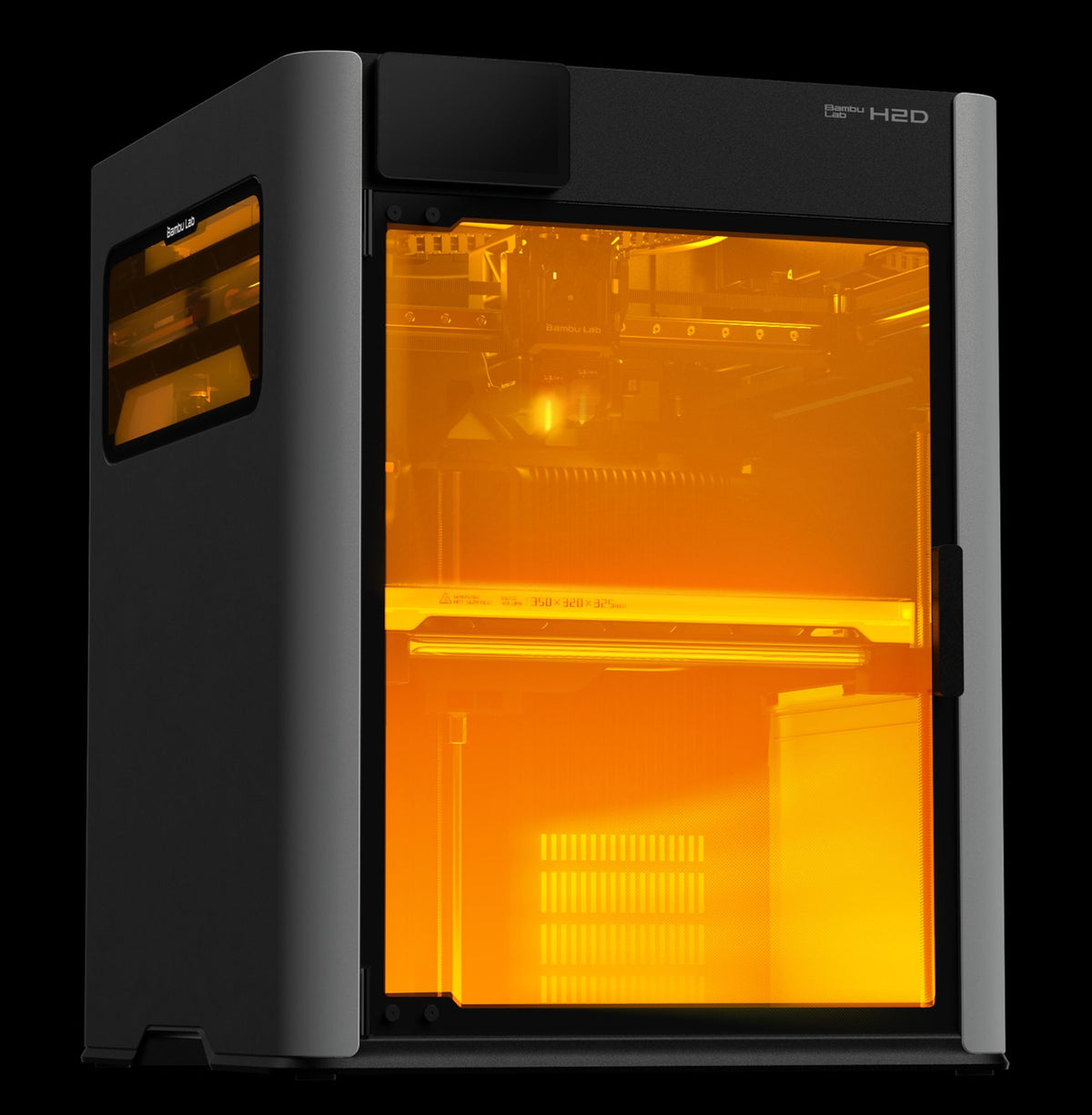

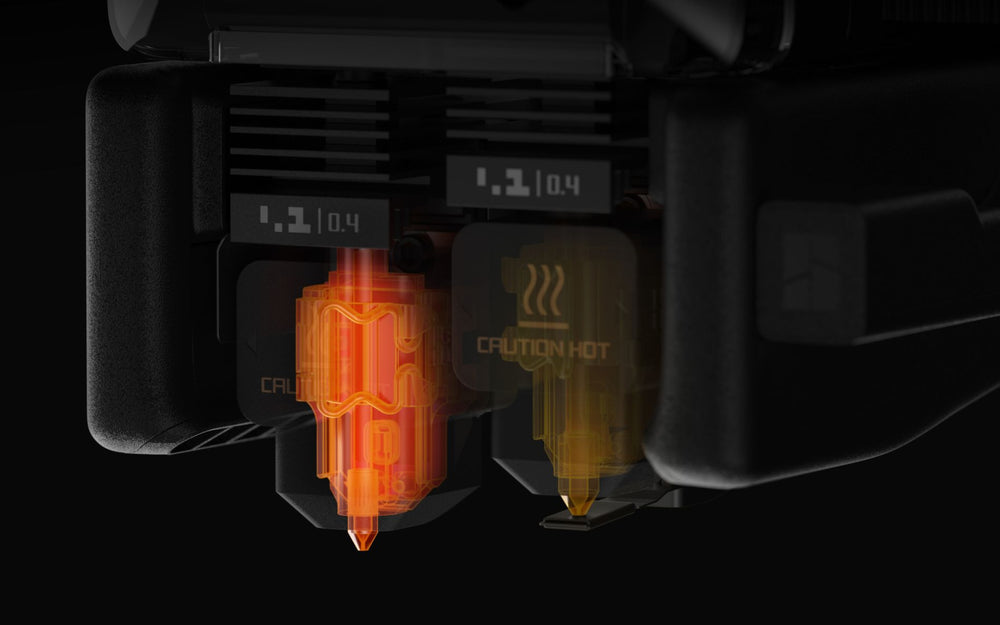

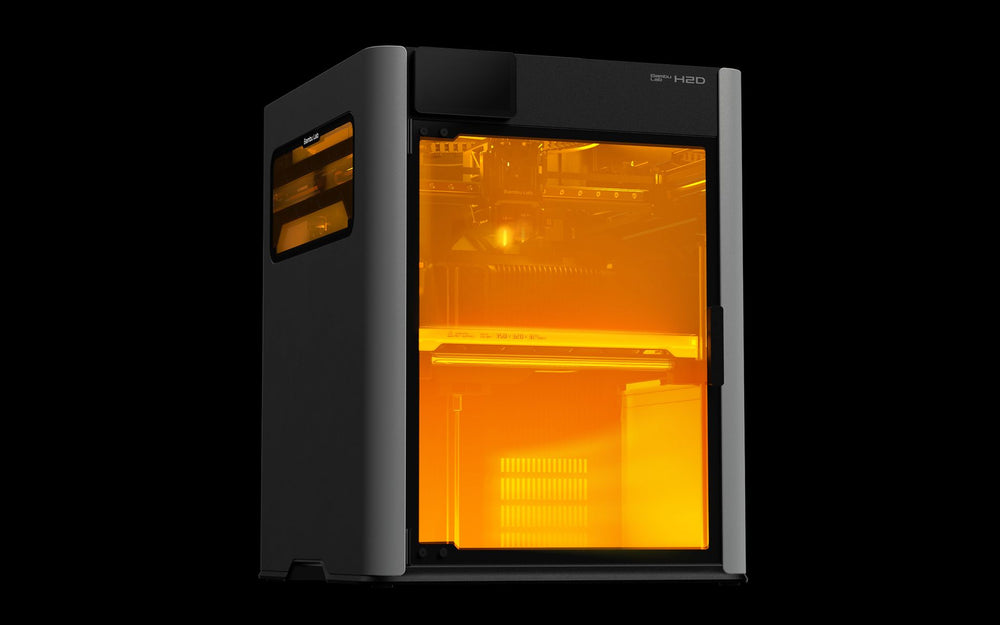

350°C Hotend & 65°C Chamber Heating

Unleash the full potential of high-performance materials

Equipped with 65°C active chamber heating and a high-temperature hotend reaching up to 350°C, the H2D delivers precise closed-loop temperature control. This advanced system effectively eliminates warping and deformation in high-performance materials, ensuring superior layer bonding and maximizing their full potential.

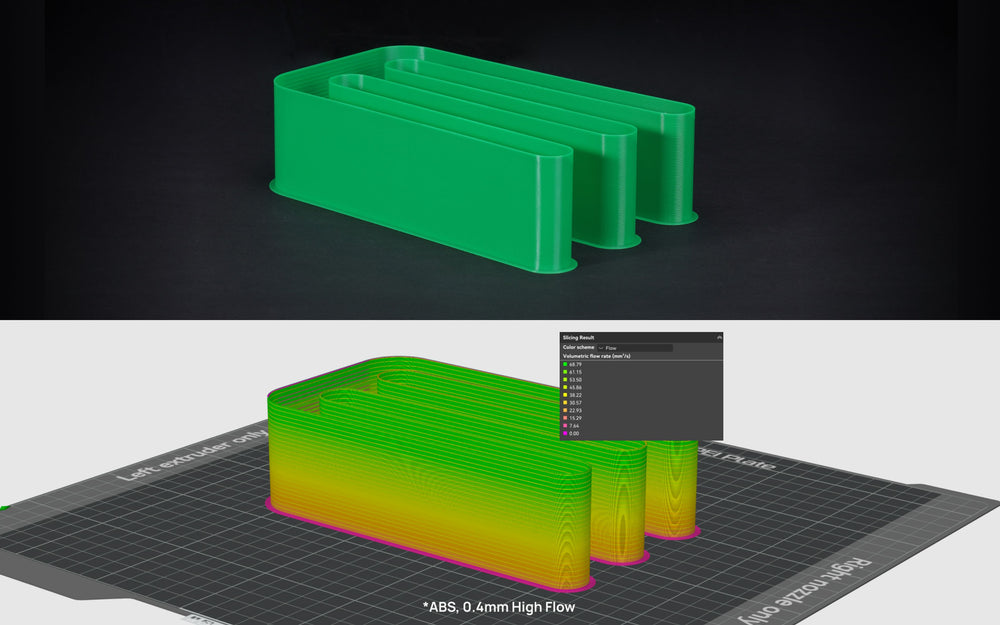

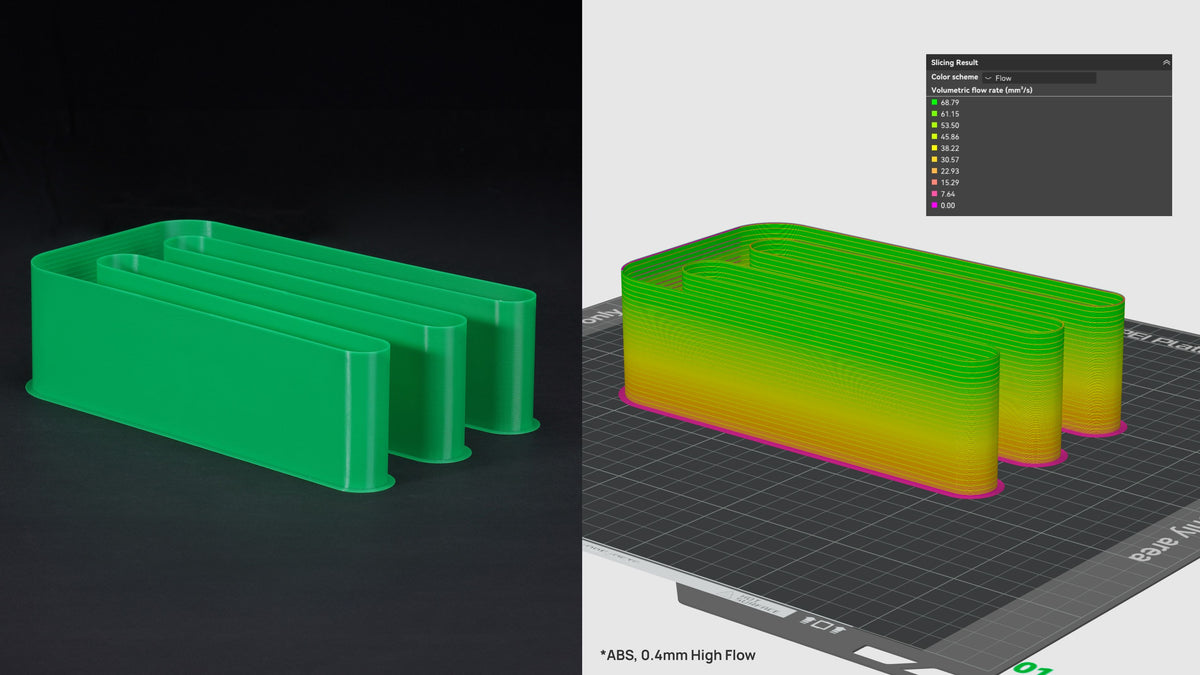

Consistently print at 600 mm/s with ease Consistently print at 600 mm/s with ease

REAL High-Flow Hotend*

Consistently print at 600 mm/s with ease

The H2D’s purpose-built high-flow hotend ensures reliable, high-speed printing at 600mm/s. Designed for consistent performance, it eliminates mid-print flow rate restrictions, enabling uninterrupted high-speed printing regardless of the print size or complexity.*

DynaSense Extruder

Intelligent sensing for precise extrusion control

Bambu Lab's proprietary PMSM servo architecture establishes an intelligent extrusion governance system. It executes 20kHz Torque/Resistance and position sampling to dynamically modulate electromagnetic torque vectors. Stabilizing extrusion and detecting filament grinding and clogging.

A Smarter, Safer Experience

Nozzle Camera

Monitor extrusion at the nozzle tip

The H2D features an AI-backed nozzle camera with macro lens. This intelligent monitoring system continuously tracks extrusion patterns, immediately detecting material accumulation, filament deviations, and extrusion failures.

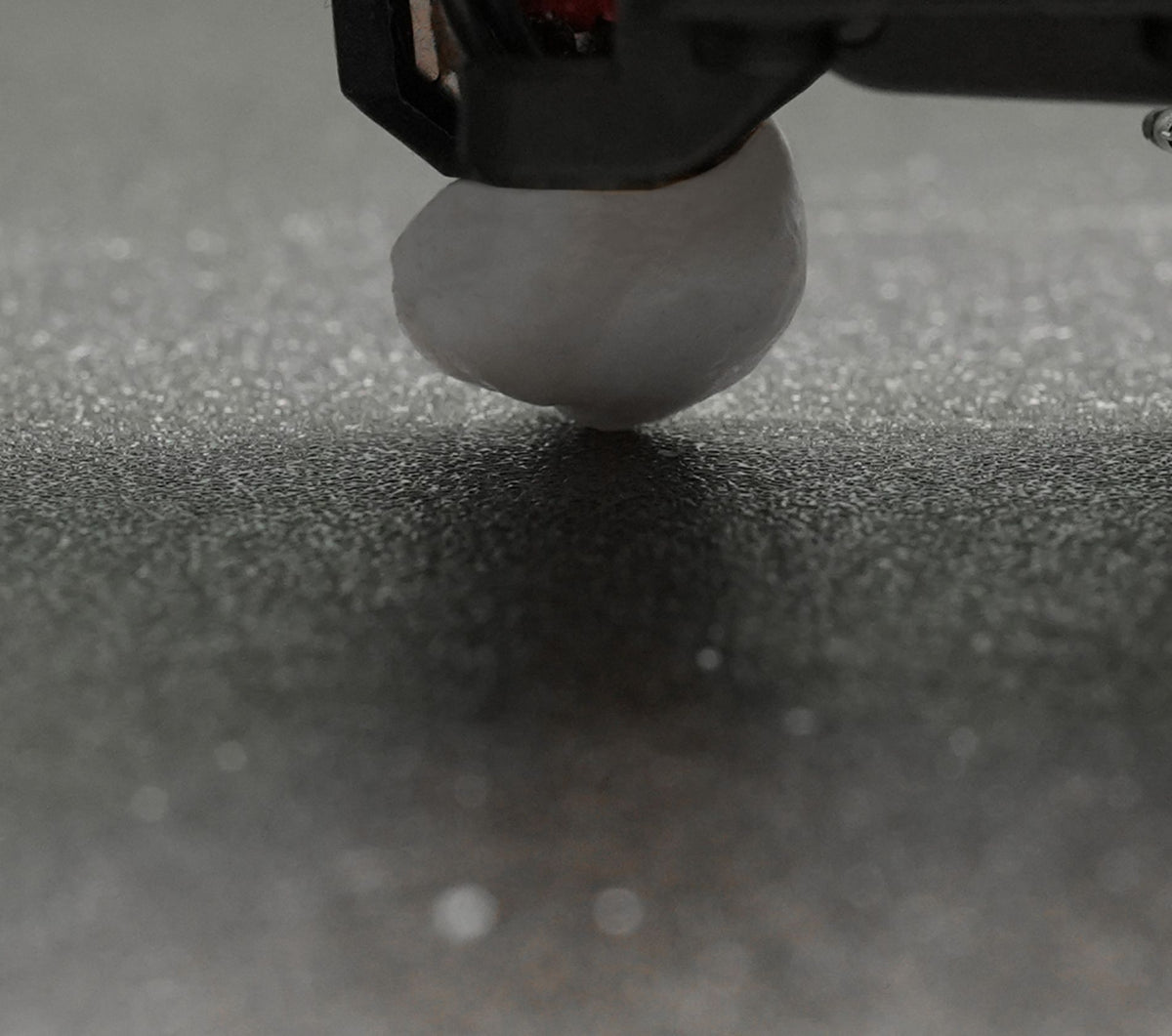

Nozzle Clumping

Nozzle Clumping

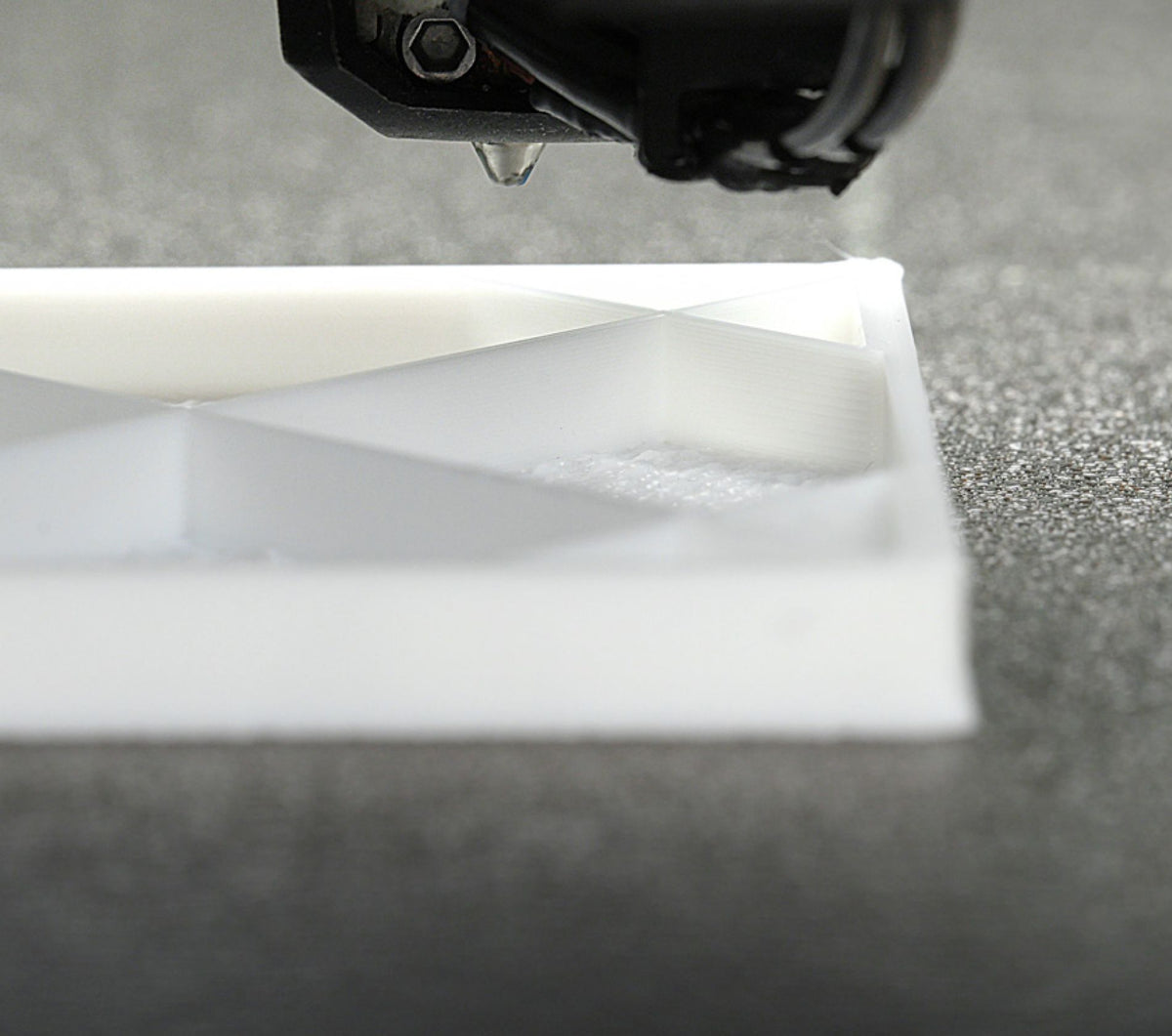

Air Printing

Air Printing

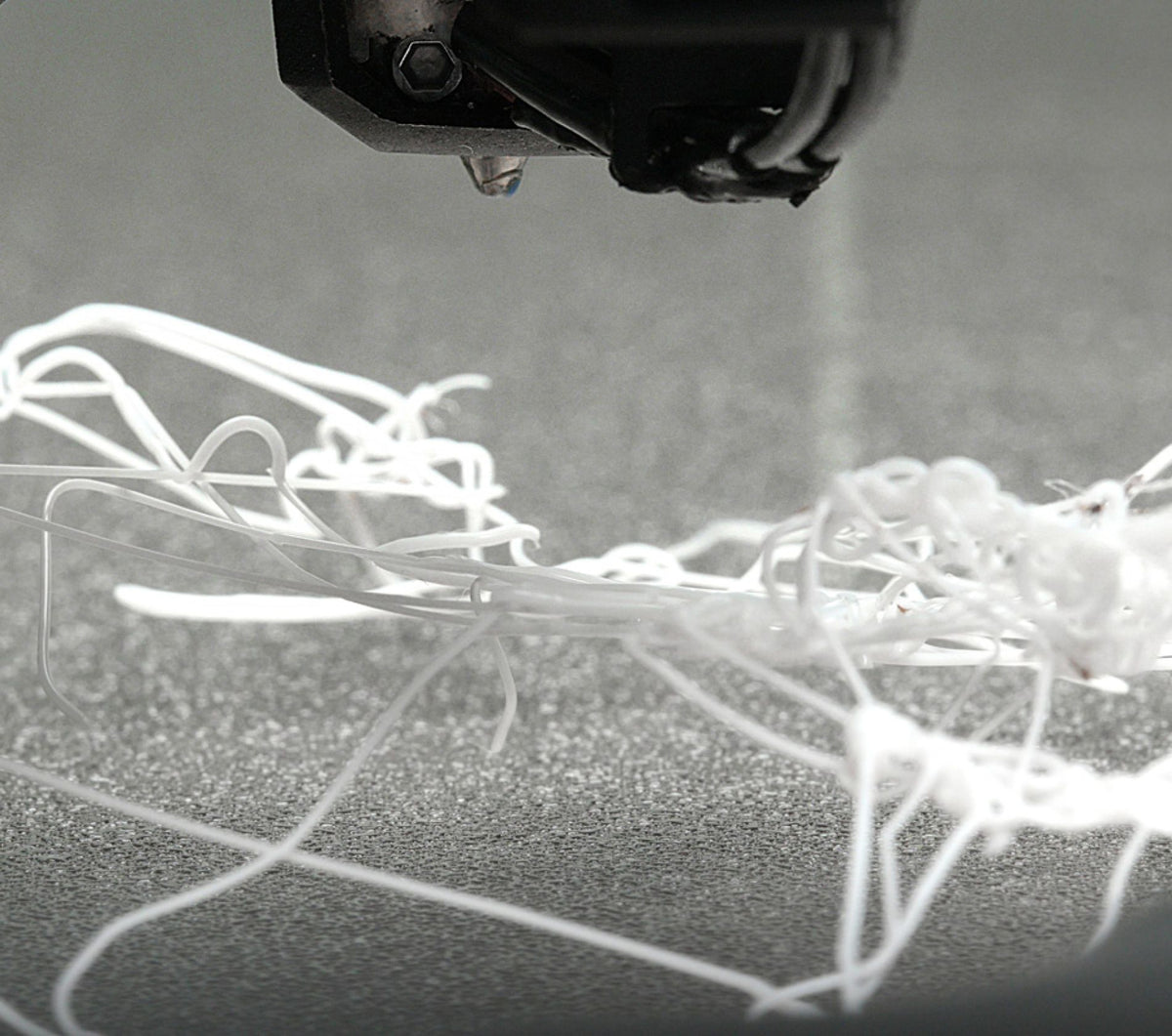

Spaghetti

Spaghetti

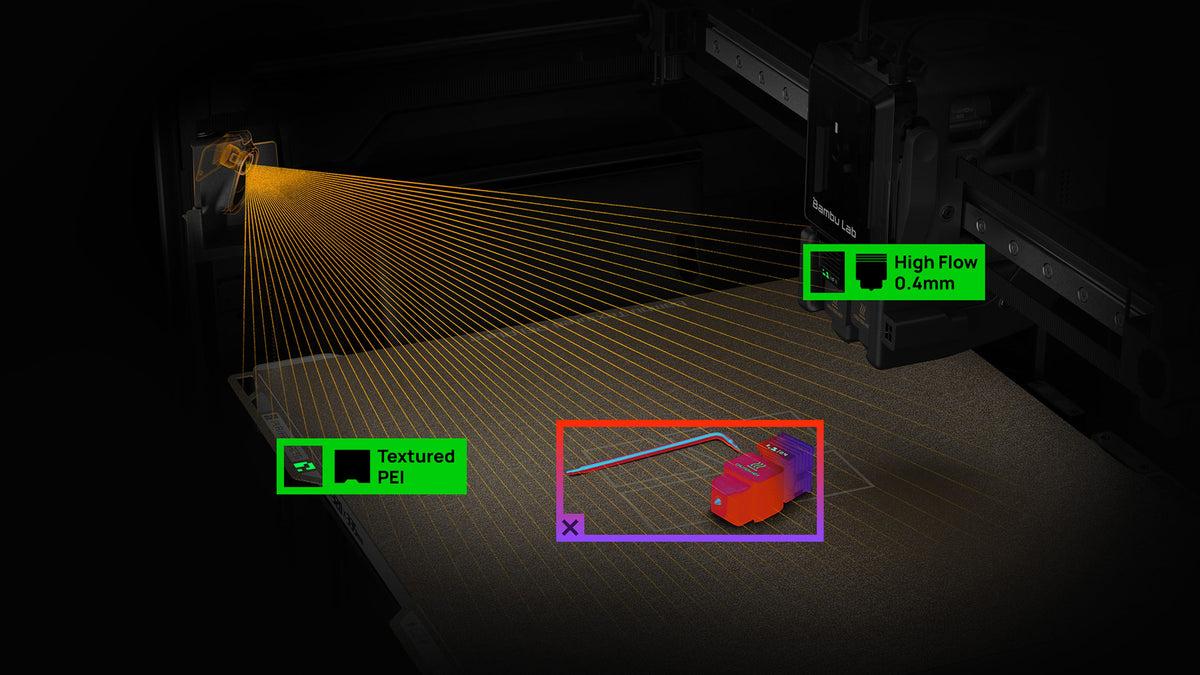

Peace of mind, every time you print Peace of mind, every time you print

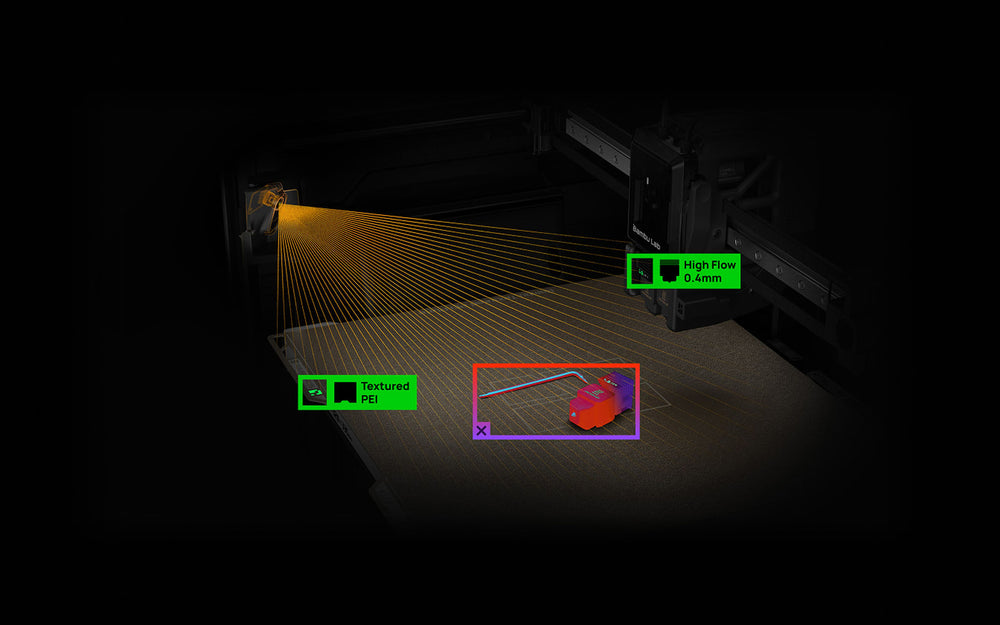

Pre-Flight Checklist by AI

Peace of mind, every time you print

Prior to each operational cycle, H2D's vision system initiates a comprehensive pre-flight checklist: Chamber Integrity Scan – Detects debris across the entire print surface. Hardware Configuration Audit – Instantly identifies nozzle dimensions and build plate properties. Digital-Physical Alignment – Automatically verifies consistency between detected hardware specifications and active slicer parameters.

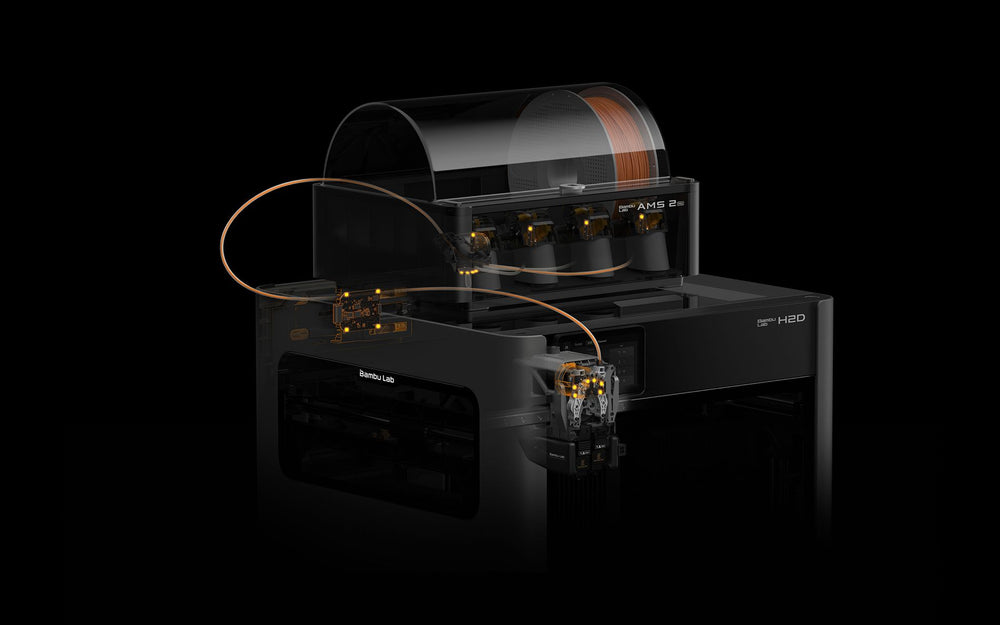

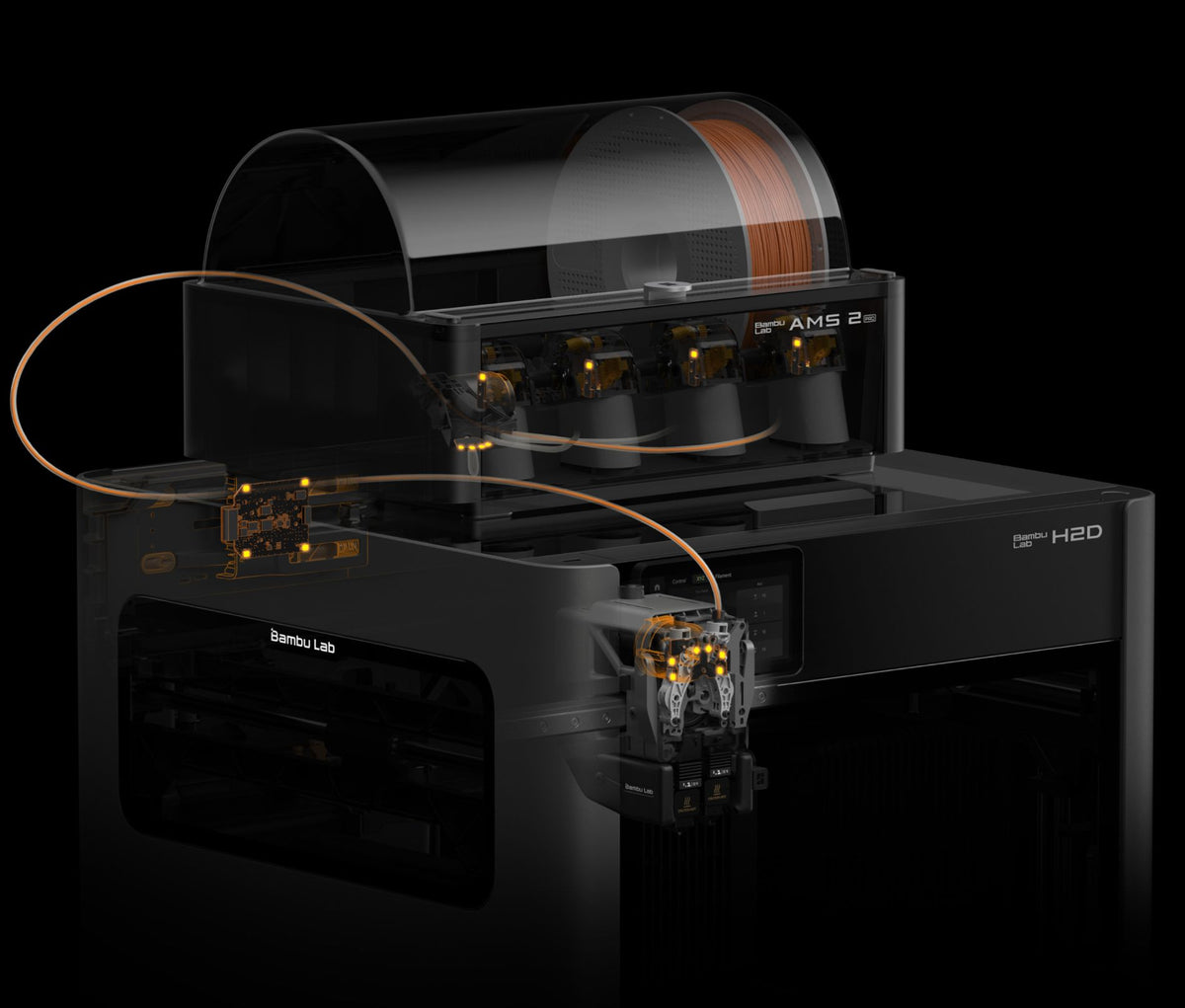

15 sensors on one filament path 15 sensors on one filament path

SOTA Filament Monitoring

15 sensors on one filament path

Unlike legacy systems with single filament run-out detectors, the H2D features comprehensive material flow monitoring. Throughout the AMS-to-nozzle path, 15 strategic sensors form an intelligent network, continuously tracking five key parameters: feeding velocity, tension, filament tip location, extruder thermal environment, and dynamic extrusion pressure. This establishes an industry-leading filament behavior control system.

مواصفات H2D

ItemSpecification
Printing Technology

Fused Deposition Modeling
BodyBuild Volume (W*D*H)

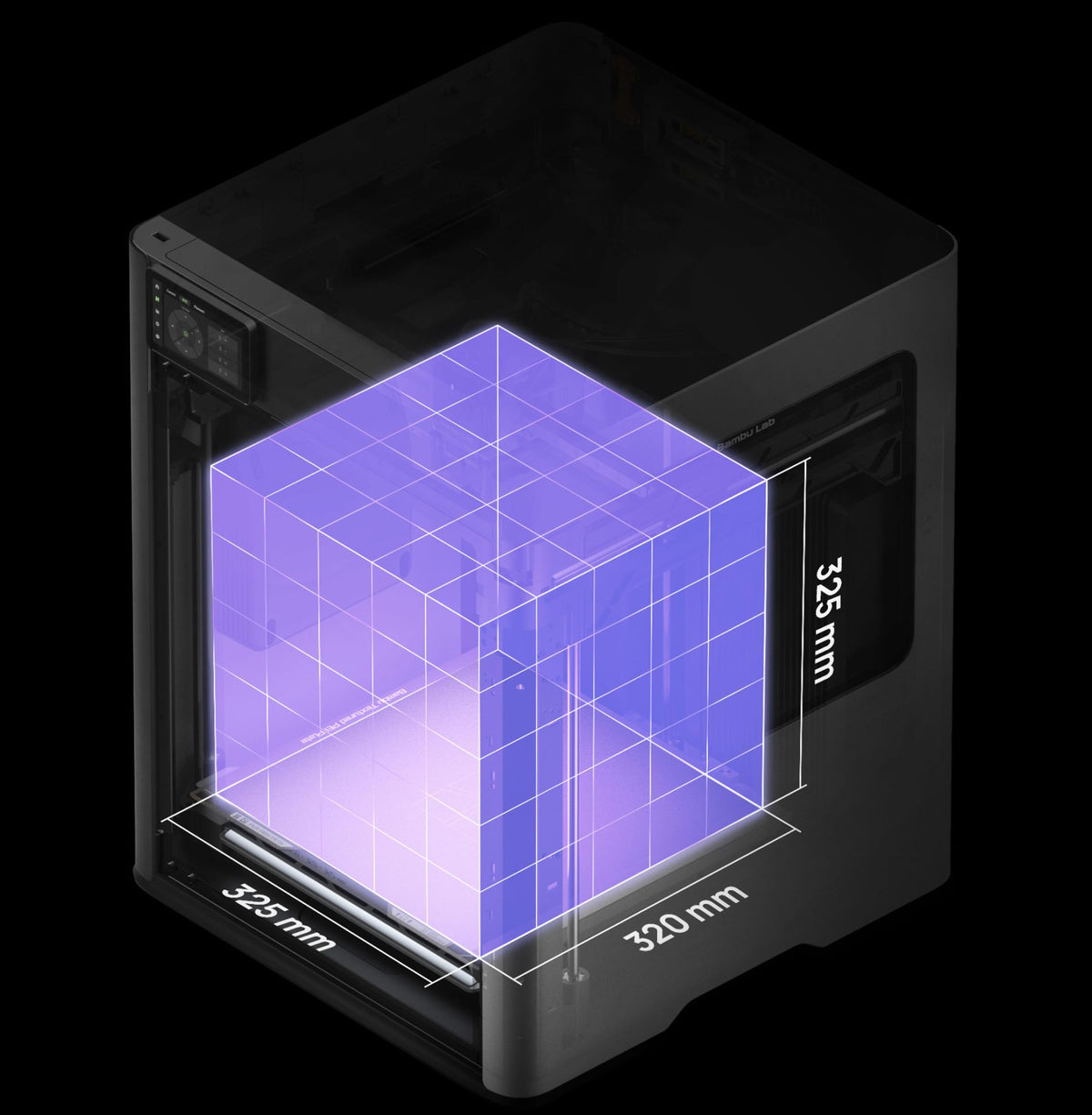

Single Nozzle Printing: 325*320*325 mm³
Dual Nozzle Printing: 300*320*325 mm³
Total Volume for Two Nozzles: 350*320*325 mm³
Chassis & Shell

Aluminum, Steel, Plastic and Glass
Laser Safety Windows

Equipped on Laser Edition, normal H2D can upgrade through Laser Upgrade Kit
Air Assist Pump

Equipped on Laser Edition, normal H2D can upgrade through Laser Upgrade Kit
Physical DimensionsPhysical Dimensions

492*514*626 mm³(Package Size: 580*605*750mm)
700*700*1100 mm³ (Recommended Space for Printer)
Net Weight

31 kg
(Gross weight: H2D: 40.6 kg; H2D AMS Combo: 44.2 kg;
H2D Laser Full Combo: 48.2 kg)
ToolheadHotend

All Metal
Extruder Gear

Hardened Steel
Nozzle

Hardened Steel
Max Nozzle Temperature

350 °C
Included Nozzle Diameter

0.4 mm
Supported Nozzle Diameter

0.2 mm, 0.4 mm, 0.6 mm, 0.8 mm
Filament Diameter

1.75 mm
Extruder Motor

Bambu Lab High-precision Permanent Magnet Synchronous Motor
HeatbedSupported Build Plate Type

Textured PEI plate, Smooth PEI Plate
Max Heatbed Temperature

120 ℃
SpeedMax Speed of Toolhead

1000 mm/s
Max Acceleration of Toolhead

20,000 mm/s²
Max Flow for Hotend (Standard Flow Hotend)

40 mm³/s(Test parameters: 250 mm round model
with a single outer wall;
Bambu Lab ABS; 280 °C printing temperature)
Max Flow for Hotend (Optional High Flow Hotend)

65 mm³/s(Test parameters: 250 mm round model
with a single outer wall;
Bambu Lab ABS; 280 °C printing temperature)
Chamber Temperatur ControlActive Chamber Heating

Supported
Max Temperature

65 °C
Air PurificationPre-filter Grade

G3
HEPA Filter Grade

H12
Activated Carbon Filter Type

Granulated Coconut Shell
CoolingPart Cooling Fan

Closed Loop Control
Auxiliary Part Cooling Fan

Closed Loop Control
Chamber Heat Circulation Fan

Closed Loop Control
Cooling Fan for Hotend

Closed Loop Control
Main Control Board Fan

Closed Loop Control
Chamber Exhaust Fan

Closed Loop Control
Supported Filament TypePLA, PETG, TPU, PVA, BVOH, ABS, ASA, PC, PA, PET, Carbon/Glass Fiber Reinforced PLA, PETG, PA, PET, PC, ABS, ASA, PPA CF/GF, PPS, PPS CF/GF

Supported
SensorLive View Camera

Built-in; 1920*1080
Nozzle Camera

Built-in; 1920*1080
BirdsEye Camera

Built-in; 3264*2448（Equipped with Laser Edition）
Toolhead Camera

Built-in; 1920*1080
Door Sensor

Supported
Filament Run Out Sensor

Supported
Filament Tangle Sensor

Supported

SensorFilament Odometry

Supported with AMS
Power Loss Recovery

Supported
Electrical RequirementsVoltage

100-120 VAC, 50/60 Hz
Max Power*

1320 W@110 V

Please purchase the version corresponding to your region's voltage. Using the Printer in different regions, you may need to purchase a transformer accordingly.
Working Temperature

10 °C-30 °C
ElectronicsTouchscreen

5-inch 720*1280 Touchscreen
Storage

Built-in 8 GB EMMC and USB Port
Control Interface

Touchscreen, mobile App, PC App
Neural Processing Unit

2 TOPS
SoftwareSlicer & Software

Bambu Studio, Bambu Suite, Bambu Handy
Supports third-party slicers which export standard G-code, such as Super Slicer, PrusaSlicer and Cura, but certain advanced features may not be supported.
Supported Operating System

MacOS, Windows
Wi-FiOperating Frequency

2412-2472 MHz, 5150-5850 MHz (FCC/CE)
2400-2483.5 MHz, 5150-5850 MHz (SRRC)
Wi-Fi Transmitter Power (EIRP)

2.4 GHz: <23 dBm (FCC); <20 dBm (CE/SRRC/MIC)
5 GHz Band1/2: <23 dBm (FCC/CE/SRRC/MIC)
5 GHz Band3: <30 dBm (CE); <24 dBm (FCC)
5 GHz Band4: <23 dBm (FCC/SRRC); <14 dBm (CE)
Wi-Fi Protocol

IEEE 802.11 a/b/g/n
10W & 40W Laser ModuleLaser Type

Semiconductor Laser
Laser Wavelength

Engraving Laser: 455 nm ± 5 nm Blue Light
Height Measuring Laser: 850 nm ± 5 nm Infrared Light
Laser Power

10 W ± 1 W; 40 W ± 2 W
Laser Spot Dimension

10W: 0.03 mm * 0.14 mm; 40W: 0.14 mm * 0.2 mm
Working Temperature

0 °C–35 °C
Max Engraving Speed

10W: 400 mm/s; 40W: 1000 mm/s
Max Cutting Thickness

10W: 5 mm; 40W: 15mm (Basswood Plywood)
Laser Safety Class for Laser Module

Class 4
Overall Laser Safety Class*

Class 1
Engraving Area

10W: 310 mm * 270 mm; 40W: 310 mm * 250 mm
XY Positioning Accuracy

< 0.3 mm
Z Height Measuring Method

Micro Lidar
Z Height Measuring Accuracy

± 0.1 mm
Flame Detection

Supported
Temperature Detection

Supported
Door Sensor

Supported
Laser Module Installation Detection

Supported
Safety Key

Included
Ventilation Pipe Adapter Outer Diameter

100 mm
Supported Material Type

Wood, rubber, metal sheet, lether, dark acrylic, stone, and more
Cutting ModuleCutting Area

300*285 mm²
Drawing Area

300*255 mm²
Supported Pen Diameter

10.5 mm-12.5 mm
Cutting Mat Type

LightGrip and StrongGrip Cutting Mats
Blade Type

45°*0.35 mm

Cutting ModuleBlade Pressure Range

50 gf-600 gf
Max Cutting Thickness

0.5 mm
Blade and Pen Recognition

Supported
Cutting Mat Type Detection

Supported
Supported Image Type

Bitmap and Vector Images
Supported Material Type

Paper, vinyl, leather, and more

Download TDS

Unboxing video

What's in the box

Item H2D AMS ComboH2D Laser Full ComboH2D
Bambu Lab H2D Bambu Lab H2D ✓—✓
Laser Edition Laser Edition —✓—
Textured PEI Build Plate Textured PEI Build Plate ✓✓✓
Spool Holder Spool Holder ✓✓✓
Accessory Box Accessory Box ✓✓✓
AMS 2 Pro AMS 2 Pro ✓✓—
10W Laser Module 10W Laser Module —Depending on selected combo—
40W Laser Module 40W Laser Module —Depending on selected combo—
Cutting Module (with Pen Holder) Cutting Module (with Pen Holder) —✓—
Laser Platform Laser Platform —✓—
Cutting Platform Cutting Platform —✓—
Safety Key Safety Key ✓✓✓
Ventilation Pipe Ventilation Pipe —✓—
Laser & Cutting Materials Laser & Cutting Materials —✓—
Emergency Stop Button Emergency Stop Button —✓—

الأسئلة الشائعة

Frequently Asked Questions

1.Can H2D be upgraded to H2D Laser Edition?
The H2D laser full combo has a built-in air pump and air pipe on the back of the printer, and is pre-installed with a BirdsEye camera. The front door, left and right side Laser Protective Windows, and top cover are all designed with laser protection. The packaging list includes a laser module, a cutting module, a smoke exhaust pipe and its adapter, as well as an emergency stop button.

We plan to launch a laser upgrade kit for the non-laser version of H2D. The upgrade kit is expected to be released in Q3 and will also provide installation instructional videos to help users complete the upgrade smoothly.

It is important to note that the air pump in the upgrade kit is an external air pump, which has a different installation structure from the built-in air pump in the full set. When using it, it can only be installed externally and connected to the machine through an air tube.

Upgrading the non-laser H2D to H2D Laser Edition through the laser upgrade kit retains identical product functions and performances as the H2D Laser Edition.
2.Are the left and right hotends exactly the same?
Yes, the left and right hotends have identical structures and materials, and can be used interchangeably.
3.What is the maximum number of AMS 2 Pro and AMS HT units that the H2D supports? How many colors can it print at most?
The H2D supports a maximum of 4 AMS 2 Pro and 8 AMS HT connected simultaneously, a total of 12 units with 24 slots.
Because H2D is a dual-hotend printer, and in the most extreme scenario, all AMS can be connected to one hotend while the other hotend uses an external spool holder, it can support up to 25 colors.
4.Is H2D compatible with first generation AMS?
The first-generation AMS has been confirmed to have full plug-and-play compatibility and can be used with the H2D for multi-color printing, but it does not support the AMS drying function.
Due to the fundamental differences in the feeding mechanism and buffering structure, the H2D does not support the AMS lite.
5.AMS 2 Pro is directly connected to the printer through the 6-pin ports, so what are the two 4-pin ports on the back of the printer used for?
The two 4-pin ports on the back are reserved for future expansion accessories. For example, to upgrade a non-laser version of the printer to a laser version, one of these ports can be used to connect an external air pump.
6.Can I use the A1 series Hotend on the H2D? Conversely, can H2D hotends be used on A1 series printers?
Although the hotend of the H2D series is similar to the A1 hotend in structure , it is not exactly the same.

The H2D hotends are specifically designed for the H2D printer, offering optimized compatibility. For example, they support a larger maximum volumetric flow rate, lower clogging risk, more precise nozzle offset calibration between the left and right hotends, and automatic hotend type recognition via the live camera.

Therefore , to ensure you get the best print quality, we strongly recommend that you do not use the A1 hotend for H2D printers.

Purchasing additional H2D hotends for use on A1 printers is feasible. However, you will also need to use the H2D hotend silicone sock.
7.What are the differences between the 10W and 40W laser modules? How should I choose?
Both the 10W and 40W laser modules are blue light lasers that support processing a variety of materials, including wood, rubber, metal sheets, leather, dark acrylic, and stone. However, due to differences in power and size, there are the following distinctions:

1.Maximum cutting thickness(For Basswood Plywood):
10W laser module: 5mm;
40W laser module: 15mm;

2.Maximum engraving speed(For Basswood Plywood):
10W laser module: 400mm/s ;
40W laser module: 1000mm/s ；

3.Processable Area:
10W laser module: Maximum processing area X310mm * Y270mm, maximum processing height 280mm；
40W laser module: Maximum processing area X310mm * Y250mm, maximum processing height 265mm；
8.Is a USB included as standard? What functions are affected without a USB?
The package does not include a standard USB flash drive. You can still initiate printing normally without a USB, as the printer has built-in storage space to run print files.
However, without a USB inserted, the following functions will be affected:

1. The recording and time-lapse photography functions can't be turned on;
2. Printing cannot be initiated through the LAN;
3. Print files cannot be sent to the machine for storage through the studio;
4. Log files cannot be exported;

USB requirements: USB2.0 protocol or above (actual minimum write speed needs to be greater than 10M/s), supported file formats are FAT32 and exFAT. And the printer only supports mounting one USB, and cannot connect multiple USB via a USB hub.
9.Why can’t I freely select hotend for printing with the printer’s built-in files?
The hotend to be used for printing has already been determined when the model file is sliced. As for the built-in models, the right hotend has been selected during the slicing process, so it is impossible to change the hotend used for printing on the printer screen.
When you slice the file in Bambu Studio and send the print task , you can freely choose to use the left hotend or the right hotend. For some filaments, such as TPU and PPS/PPA-CF, it is recommended to use specific hotends for printing.

For more details on H2D filament printing, please check the wiki.
10. Will the smoke and dust generated by laser operations affect my printer's precision and lifespan?
H2D is equipped with an efficient exhaust system that effectively removes smoke and dust generated by laser operations, significantly reducing contamination. During R&D, we conducted rigorous testing to ensure that with regular machine cleaning, the impact of smoke and dust on performance and precision is negligible. For detailed cleaning instructions, please refer to: wiki
11. How can I improve the success rate and quality of TPU printing?
Due to the flexible nature of TPU filaments, there are some operational issues that can arise during feeding and printing. To facilitate TPU printing, we have created a dedicated Wiki guide. Simply follow the instructions in the Wiki to successfully print with TPU filaments: wiki
12. Are there any special safety precautions I need to take when using the laser function?
Because laser processing involves using high-energy lasers on potentially flammable materials, we strongly advise users not to leave the machine unattended during laser operations. Please maintain constant vigilance over the machine's operational status and ensure that there are no flammable or explosive materials in the machine's surroundings. For more information please refer to: wiki

For more information about H2D, refer to the official wiki.

Note

2 servo motors include the one on the AMS 2 Pro.

3D mesh feature will be available shortly after the product release through firmware update.

Rotary Attachment is an optional equipment will be available soon, buy at official store.

Air Purifier is an optional equipment, buy at official store.

BirdsEye camera is only equipped with H2D laser edition, or can be added with laser upgrade kit.

Material CodeSync only works with Bambu official materials.

The optional Vision Encoder is required for Motion Accuracy Enhancement.

Auto Holes-contour Compensation must be enabled in Bambu Studio, and designated Bambu filament must be used.

350mm×320mm×325mm print volume is enable by using identical filaments in both nozzles and print with both nozzles.

High-flow Hotends are optional equipments, buy at official store.

The 600mm/s print speed refering is by using Bambu PLA Matte filament.

Auto Fire Extinguisher is an optional equipment, will be available soon after the product release.

Due to safety protocol, Developer mode cannot be enabled when using Laser and Cutting functions.

Creator projects are provided for illustrative purposes only. Bambu Lab does not endorse, and disclaims any representations or warranties regarding creator projects, including, without limitation, the safety, marketability, or usability of any 3D printed works based on such projects. See our Terms of Service for more information.
